Wastewater/Activity/PacpInspection/1.0Mar 27, 2018, 06:21 AM
H 1291_H 1290 _26032018_232930.mp4
- Date
- 03/26/2018
- W/O
- 695758
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01183
- PipeID
- P17307
- Time
- 11:21 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5499
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_695758_TV22084_APR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- H 1291
- Downstream MH
- H 1290
- Dir. of Survey
- Downstream
- Length Surveyed
- 149.1 ft.
- Total Length
- 149.1 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 145
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 145
Observation photos (3)

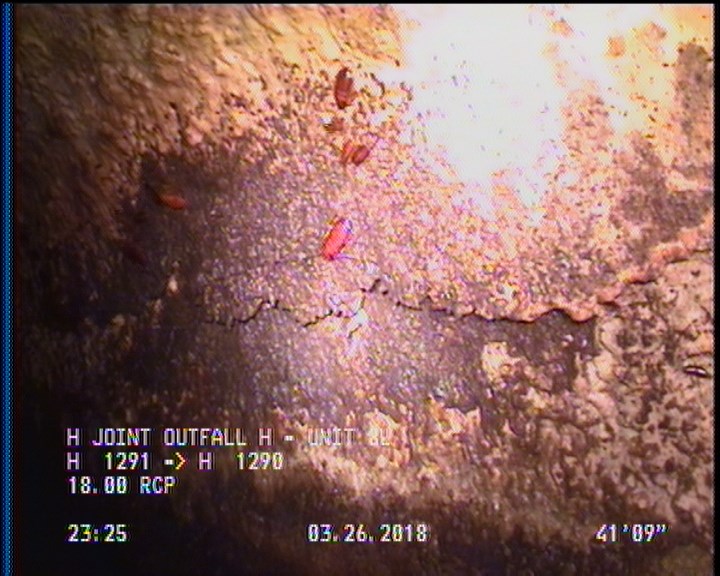

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

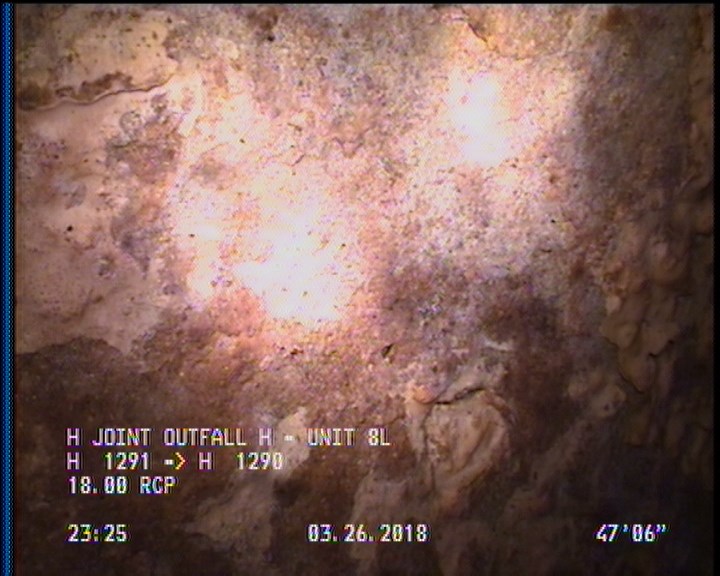

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

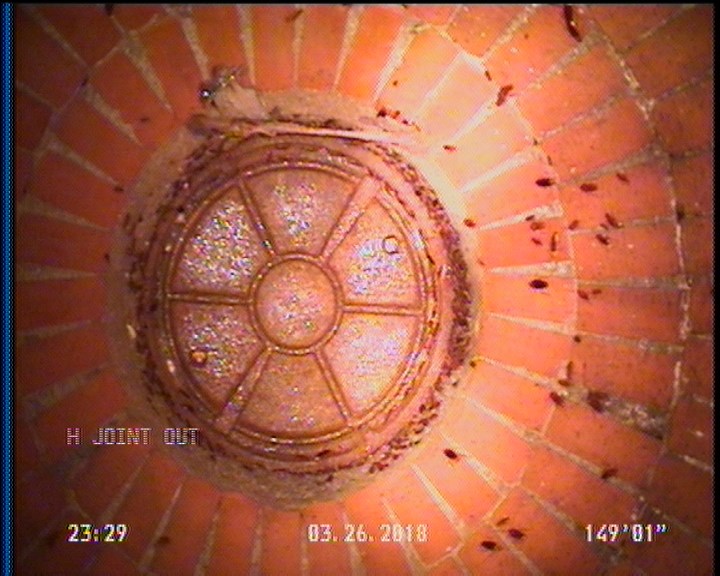

149.1 ft. - Downstream Manhole, Survey Ends - H 1290
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 31.7 | MGO | MAG COATING 60% THROUGHOUT |
| 149.1 | AMH | H 1290 |
| 149.1 | MGO | COCKROACHES IN MANHOLE |
| 147.2 | SAV | — |
| 149.1 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | SAV | — |
| 147.2 | SSS | — |
| 0 | AMH | H 1291 |
Properties (4)
- additional_info
- SC358507
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-26T23:21:38-07:00
