Wastewater/Activity/PacpInspection/1.0Apr 12, 2018, 07:55 AM
18 1093_18 1092_4122018_011457.mp4
- Date
- 04/12/2018
- W/O
- 0700361
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00675
- PipeID
- P14955
- Time
- 12:55 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- HO818
- Sewer Name
- 18 FLORENCE AVENUE TRUNK
- City
- SANTE FE SPRINGS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- 20180412MDM_FLORENCE_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 18 1092
- Downstream MH
- 18 1093
- Dir. of Survey
- Upstream
- Length Surveyed
- 358.9 ft.
- Total Length
- 358.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

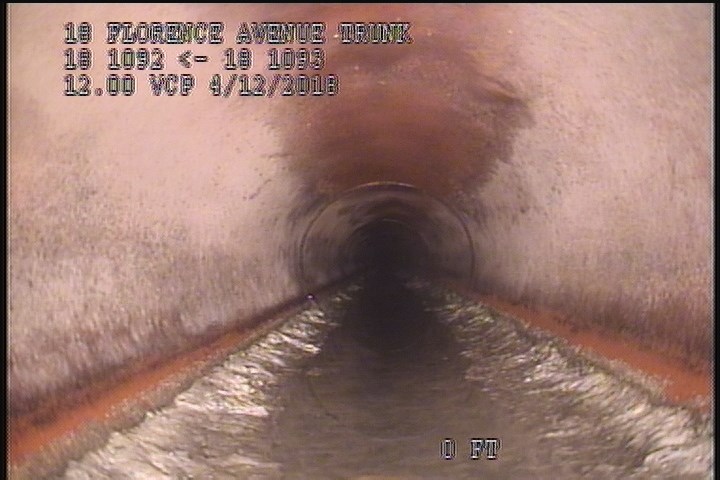

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

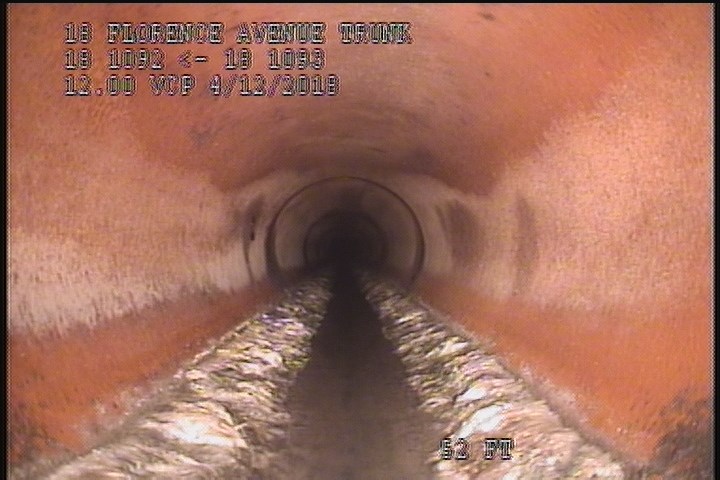

52 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 43.3 | MWM | — |
| 358.3 | MGO | Conn. @ Mh, 9 O' Clock. Capped |
| 2 | DAGS | — |
| 358.9 | AMH | 1:25AM |
| 131.1 | MWM | — |
| 0 | MWL | — |
| 254.3 | TF | Active |
| 94.3 | TF | Open |
| 3 | FC | h |
| 0 | AMH | 12:55AM |
| 52 | DAGS | — |
| 358.3 | DAGS | — |
| 0 | MWM | — |
| 358.3 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 178.6 | TF | Open |
| 52 | DAGS | — |
Properties (6)
- additional_info
- REVERSE INSPECTION
- custom_field_three
- 1 HAIRLINE CIRCUM
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-12T00:55:00-07:00
- year_laid
- 19750610
