Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 10, 2018, 04:28 PM

  • 15 0639_15 0638_4102018_095411.mp4

Date
04/10/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00606
PipeID
P12911
Time
9:28 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7679
Sewer Name
15 GRAND AVENUE TRUNK
City
SAN GABRIEL
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
15
Purpose
Maintenance Related
Project
20180410SHO_GRAND_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0639
Downstream MH
15 0638
Dir. of Survey
Downstream
Length Surveyed
244.6 ft.
Total Length
244.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 15 0639 to 15 0638
MH: 15 0639MH: 15 0638downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 09550 ft. MGO - General Observation - CONNECTION IN THE MH @ 9 O CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area233.5 ft. MGO - General Observation - FIRST REPAIR237.8 ft. MGO - General Observation - SECOND REPAIR239.9 ft. IR - Infiltration Runner, at 12 o'clock, within 8 inches of joint: NO239.9 ft. MGO - General Observation - THIRD REPAIR244.6 ft. MSA - Survey Abandoned - COMPLETED TO THE NEW MH D/S OF MH 639

Observation photos (4)

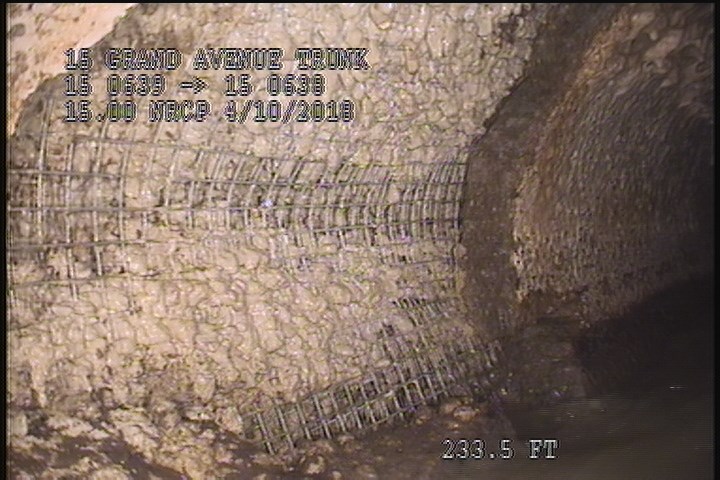

  • General Observation - FIRST REPAIR

    233.5 ft. - General Observation - FIRST REPAIR

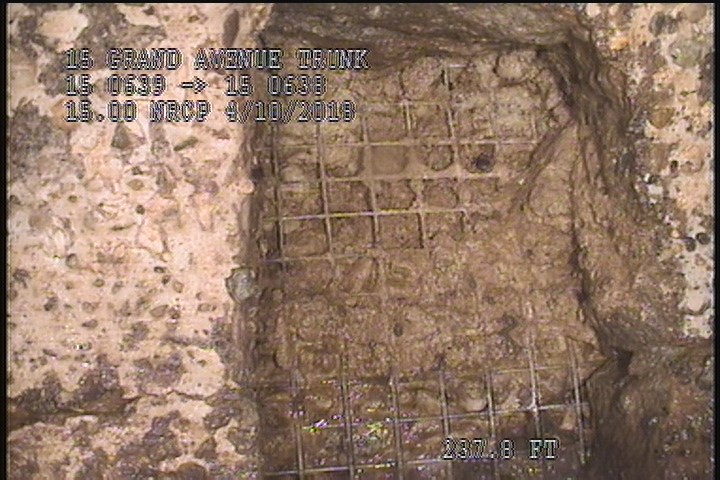

  • General Observation - SECOND REPAIR

    237.8 ft. - General Observation - SECOND REPAIR

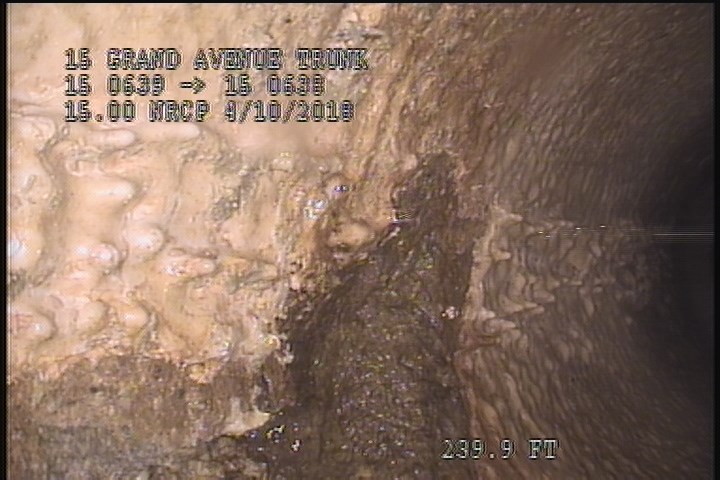

  • Infiltration Runner, at 12 o'clock, within 8 inches of joint: NO

    239.9 ft. - Infiltration Runner, at 12 o'clock, within 8 inches of joint: NO

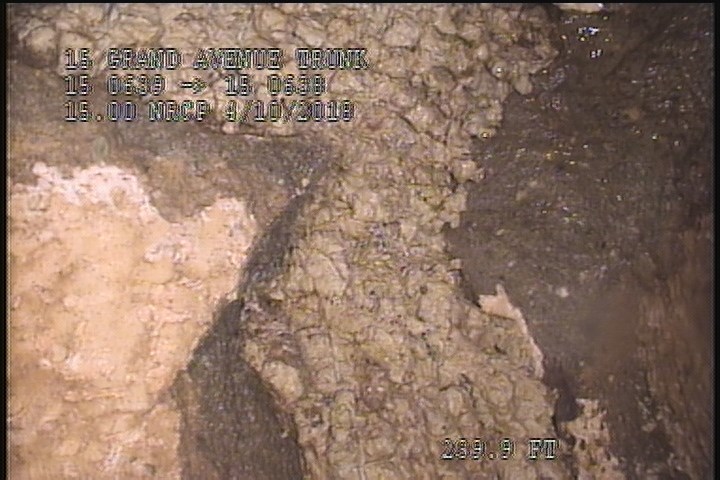

  • General Observation - THIRD REPAIR

    239.9 ft. - General Observation - THIRD REPAIR

All inspections of P12911Work order PENDING

Observations (9)

DistanceCodeObservation
0MWL—
239.9IR—
0AMH0955
0MGOCONNECTION IN THE MH @ 9 O CLOCK
244.6MSACOMPLETED TO THE NEW MH D/S OF MH 639
233.5MGOFIRST REPAIR
237.8MGOSECOND REPAIR
239.9MGOTHIRD REPAIR
0MWM—

Properties (5)

additional_info
LOOKING FOR ANY DAMAGE CAUSE BY CONSTRUCITON AROUND 240 FEET D/S
custom_field_three
MISSING WALL W/ REPAIRS, INFILTRATION
custom_field_two
5
customer
LACSD
datetime
2018-04-10T09:28:10-07:00
