Wastewater/Activity/PacpInspection/1.0Apr 12, 2016, 09:33 AM
32 1220_32 1219_12042016_023348.mp4
- Date
- 04/12/2016
- W/O
- 563392
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00843
- PipeID
- P19674
- Time
- 2:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3314
- Sewer Name
- 32 SOLEDAD CANYON RELIEF TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_563392_TV32023_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 32 1220
- Downstream MH
- 32 1219
- Dir. of Survey
- Downstream
- Length Surveyed
- 578.6 ft.
- Total Length
- 578.6 ft.
- Structural Index
- 3
- Structural Quick
- 3V00
- Structural Rating
- 345
- O&M Index
- 2
- O&M Quick
- 2V00
- O&M Rating
- 230
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 575
Observation photos (2)

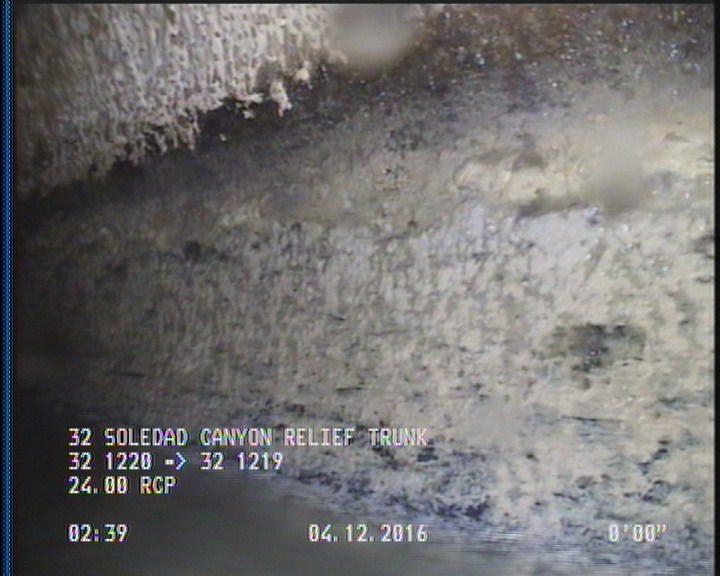

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

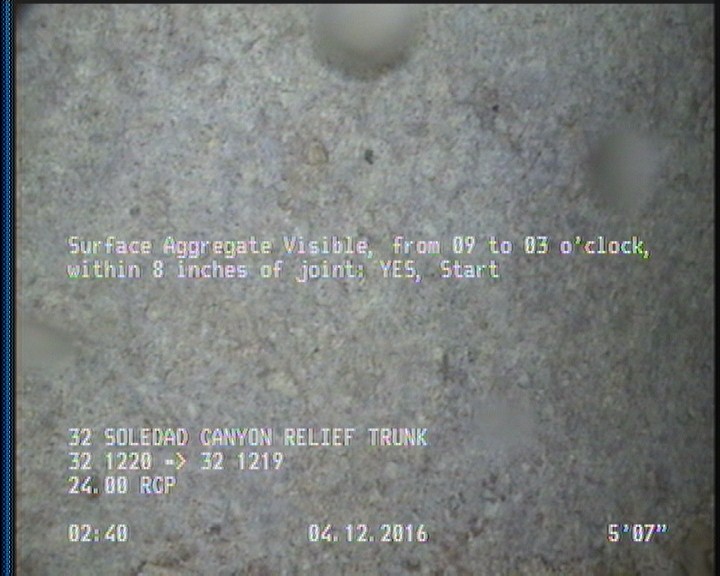

5.6 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 578.6 | AMH | 32 1219 |
| 578.6 | DAGS | — |
| 2 | DAGS | — |
| 578.6 | SAV | — |
| 0 | AMH | 32 1220 |
| 5.6 | SAV | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | MGO | MAG COATING 80% |
Properties (5)
- additional_info
- SC305441
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-04-12T02:33:36-07:00
- year_laid
- 19730503
