Wastewater/Activity/PacpInspection/1.0Apr 14, 2016, 10:36 AM
32 1198_32 1197_14042016_033806.mp4
- Date
- 04/14/2016
- W/O
- 563392
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00843
- PipeID
- P19652
- Time
- 3:36 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3316
- Sewer Name
- 32 SOLEDAD CANYON RELIEF TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_563392_TV32023_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 32 1198
- Downstream MH
- 32 1197
- Dir. of Survey
- Downstream
- Length Surveyed
- 405.2 ft.
- Total Length
- 405.2 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 240
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 170
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 410
Observation photos (3)

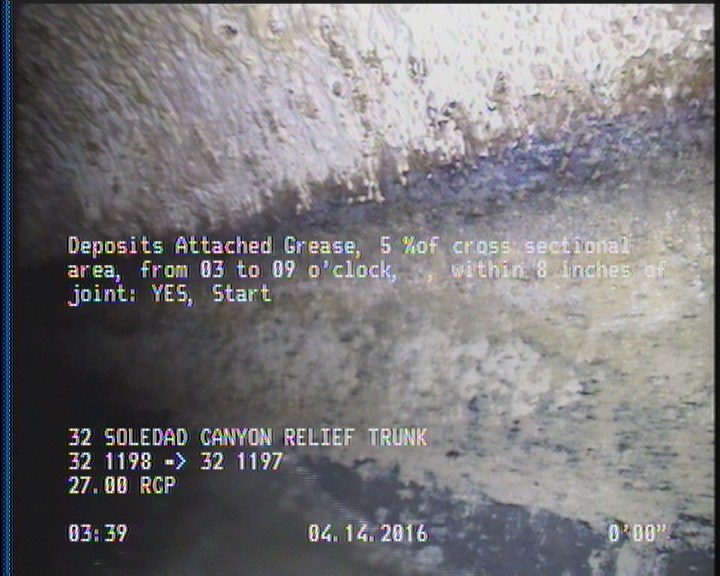

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

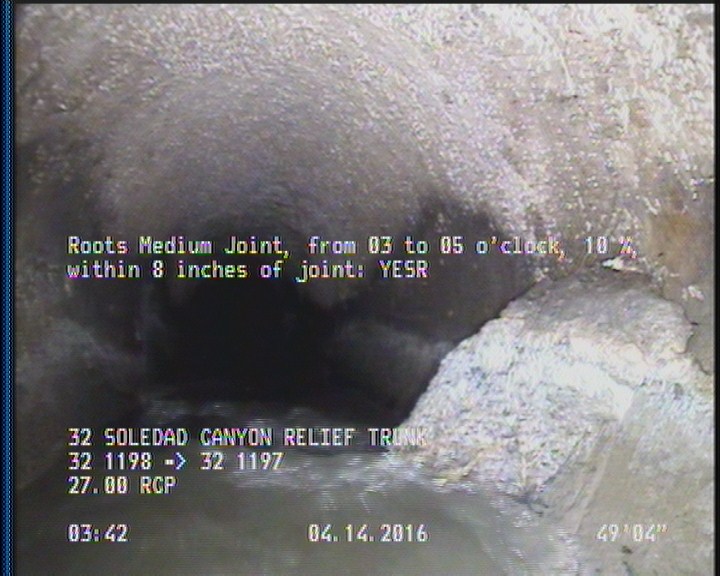

49.4 ft. - Roots Medium Joint, from 03 to 05 o'clock, 10 %, within 8 inches of joint: YESR

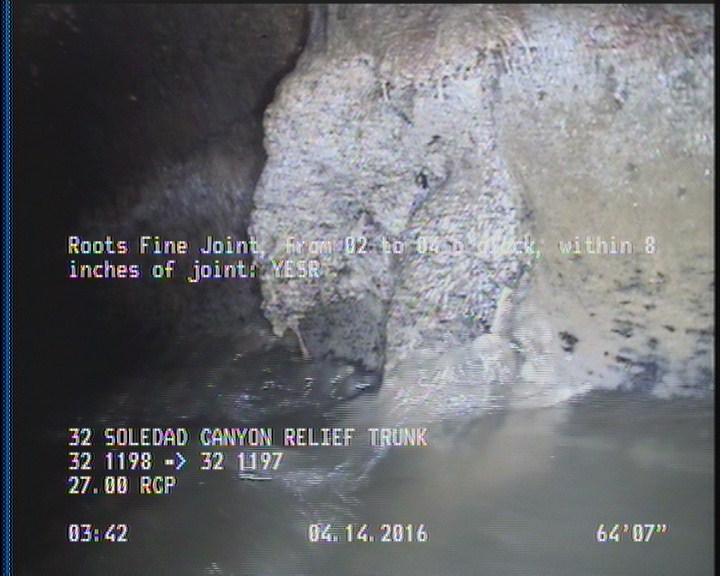

64.5 ft. - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAG COATING 80% |
| 405.2 | AMH | 32 1197 |
| 0 | MWM | — |
| 2 | DAGS | — |
| 49.4 | RMJ | — |
| 64.5 | RFJ | — |
| 405.2 | DAGS | — |
| 0 | AMH | 32 1198 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC305443
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-14T03:36:57-07:00
- year_laid
- 19730727
