Wastewater/Activity/PacpInspection/1.0Jun 22, 2016, 06:52 AM
A 0302_A 0301 _21062016_235410.mp4
- Date
- 06/21/2016
- W/O
- 574385
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00325
- PipeID
- P08212
- Time
- 11:52 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3538
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- WHITTIER
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_574385_TV15129_JUNE2016
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Width
- 63 in.
- Upstream MH
- A 0302
- Downstream MH
- A 0301
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

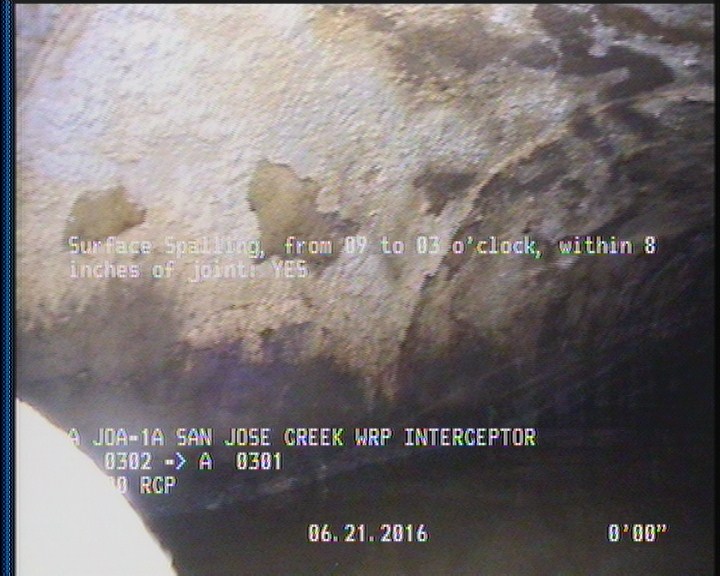

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

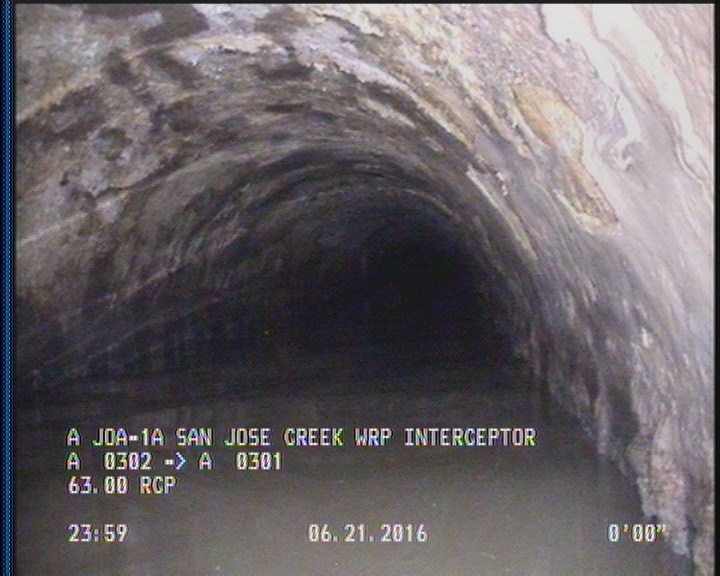

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.

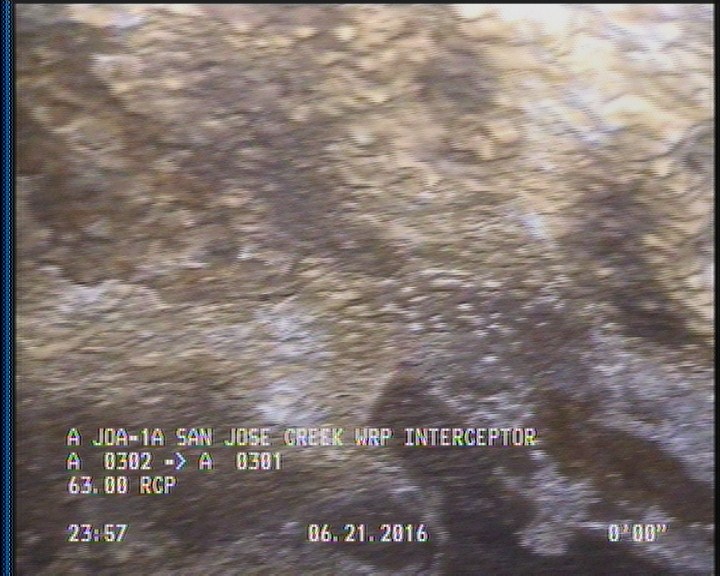

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 0 | MWM | — |
| 0 | AMH | A 0302 |
| 0 | MWL | — |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
| 2 | SAV | — |
Properties (5)
- additional_info
- SC305772
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-21T23:52:11-07:00
- year_laid
- 28972
