Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 6, 2016, 06:12 AM

  • A 0570_A 0569_20160405_231738.mp4

Date
04/05/2016
W/O
563407
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00327
PipeID
P08351
Time
11:12 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3245
Sewer Name
A JOA-1A SOUTH HAWTHORNE-WARFIELD AV EXTENSION
City
LAWNDALE, CA 90260
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
19
Purpose
Routine Assessment
Project
WO_563407_TV05154_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
A 0570
Downstream MH
A 0569
Dir. of Survey
Downstream
Length Surveyed
30.2 ft.
Total Length
30.2 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole A 0570 to A 0569
MH: A 0570MH: A 0569downstream0 ft. AMH - Upstream Manhole, Survey Begins - A 05700 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. MWM - Water Mark, 30 %of cross sectional area13.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"14.8 ft. CM - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES16.5 ft. RFL - Roots Fine Lateral, at 10 o'clock16.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"30.2 ft. AMH - Downstream Manhole, Survey Ends - A 0569

Observation photos (4)

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    13.9 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

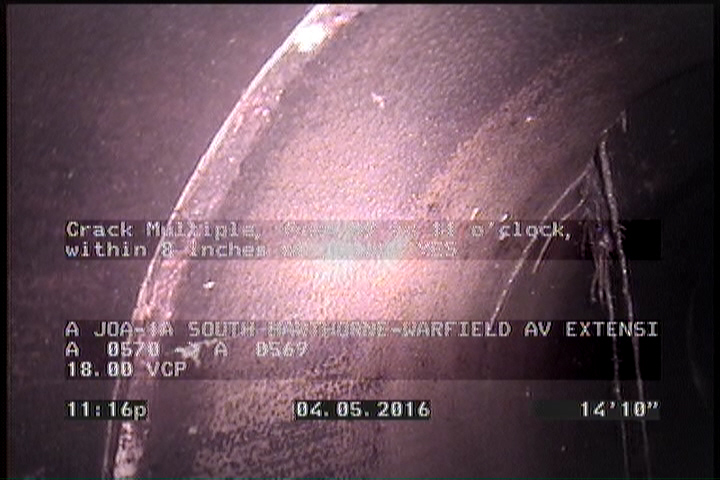

  • Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

    14.8 ft. - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

  • Roots Fine Lateral, at 10 o'clock

    16.5 ft. - Roots Fine Lateral, at 10 o'clock

  • Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    16.5 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P08351Work order 563407

Observations (9)

DistanceCodeObservation
0AMHA 0570
30.2AMHA 0569
16.5RFL—
16.5TFA—
0MWL—
0MGOLATERAL AT MH 9 OCLOCK
13.9TF—
0MWM—
14.8CM—

Properties (4)

additional_info
SC305337
custom_field_two
4
customer
LACSD
datetime
2016-04-05T23:12:55-07:00
