Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 6, 2016, 08:49 AM

  • A 0562_A 0561_20160406_020244.mp4

Date
04/06/2016
W/O
563407
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00327
PipeID
P08343
Time
1:49 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3245
Sewer Name
A JOA-1A SOUTH HAWTHORNE-WARFIELD AV EXTENSION
City
LAWNDALE, CA 90260
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Routine Assessment
Project
WO_563407_TV05154_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
A 0561
Downstream MH
A 0562
Dir. of Survey
Upstream
Length Surveyed
292.6 ft.
Total Length
292.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole A 0561 to A 0562
MH: A 0561MH: A 0562upstream0 ft. AMH - Upstream Manhole, Survey Ends - A 05621.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish31.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"44.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"88 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"95.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"132.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"151.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"182.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"185.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"287.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start292.6 ft. MWM - Water Mark, 25 %of cross sectional area292.6 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK292.6 ft. MWL - Water Level, 10 %of cross sectional area292.6 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK292.6 ft. AMH - Downstream Manhole, Survey Begins - A 0561

Observation photos (2)

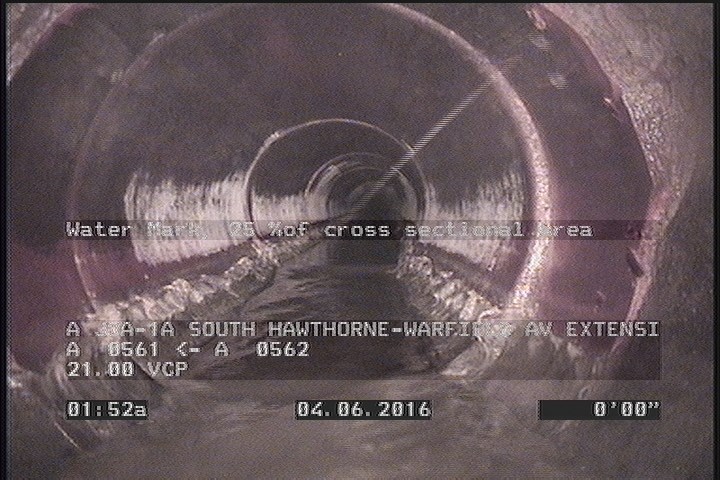

  • Water Mark, 25 %of cross sectional area

    0 ft. - Water Mark, 25 %of cross sectional area

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    5.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P08343Work order 563407

Observations (16)

DistanceCodeObservation
197.2TFA—
0MWM—
292.6AMHA 0562
159.7TFC—
109.8TFC—
0MGOLATERAL AT MH 9 OCLOCK
0MWL—
0MGOLATERAL AT MH 3 OCLOCK
247.8TFA—
204.6TFC—
141.2TF—
0AMHA 0561
5.2DAGS—
261TFA—
107.2TFA—
291.1DAGS—

Properties (4)

additional_info
SC305337
custom_field_two
4
customer
LACSD
datetime
2016-04-06T01:49:58-07:00
