Wastewater/Activity/PacpInspection/1.0Apr 19, 2016, 08:56 AM
A 0552_A 0551_20160419_021304.mp4
- Date
- 04/19/2016
- W/O
- 563407
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00327
- PipeID
- P08332
- Time
- 1:56 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3320
- Sewer Name
- A JOA-1A SOUTH HAWTHORNE-WARFIELD AV EXTENSION
- City
- LAWNDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_563407_TV05154_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- A 0552
- Downstream MH
- A 0551
- Dir. of Survey
- Downstream
- Length Surveyed
- 353.6 ft.
- Total Length
- 353.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 312M
- O&M Rating
- 145
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 145
Observation photos (3)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

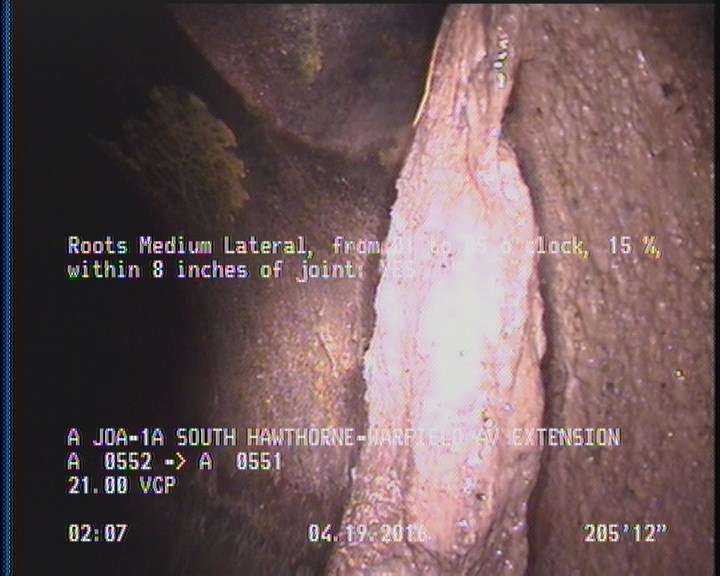

206 ft. - Roots Medium Lateral, from 01 to 05 o'clock, 15 %, within 8 inches of joint: YES
206 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 206 | RML | — |
| 123 | TFA | — |
| 206 | TFD | ROOTS |
| 0 | MWL | — |
| 338.8 | TFA | — |
| 0 | AMH | A 0552 |
| 2 | DAGS | — |
| 256.1 | TFA | — |
| 351.4 | DAGS | — |
| 170.6 | TFA | — |
| 271.3 | TFA | — |
| 0 | MWM | — |
| 31 | TFA | — |
| 353.6 | AMH | A 0551 |
| 91.4 | TFA | — |
Properties (4)
- additional_info
- SC305447
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-19T01:56:09-07:00
