Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 12, 2018, 09:20 AM

  • 01 0097_01 0096_12032018_023944.mp4

Date
03/12/2018
W/O
691313
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00209
PipeID
P00766
Time
2:20 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5480
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
06
Purpose
Routine Assessment
Project
WO_691313_TV01255_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0097
Downstream MH
01 0096
Dir. of Survey
Downstream
Length Surveyed
292.4 ft.
Total Length
292.4 ft.
Structural Index
4
Structural Quick
4332
Structural Rating
18
O&M Index
2
O&M Quick
2K00
O&M Rating
116
Overall Index
2
Overall Quick
—
Overall Rating
134
Pipe schematic from manhole 01 0097 to 01 0096
MH: 01 0097MH: 01 0096downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 00970 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start95.8 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 4"126.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"159.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"190.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES207.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"208.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES234 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"278 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start292.4 ft. AMH - Downstream Manhole, Survey Ends - 01 0096292.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish292.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE292.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (4)

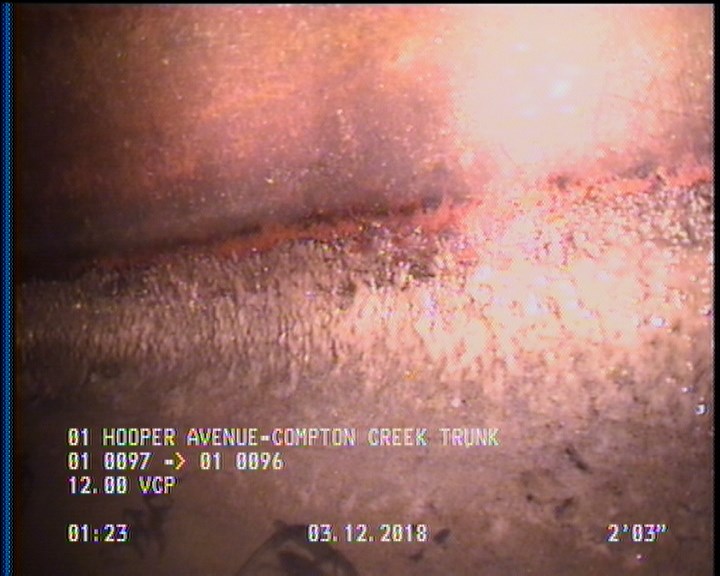

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    190.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

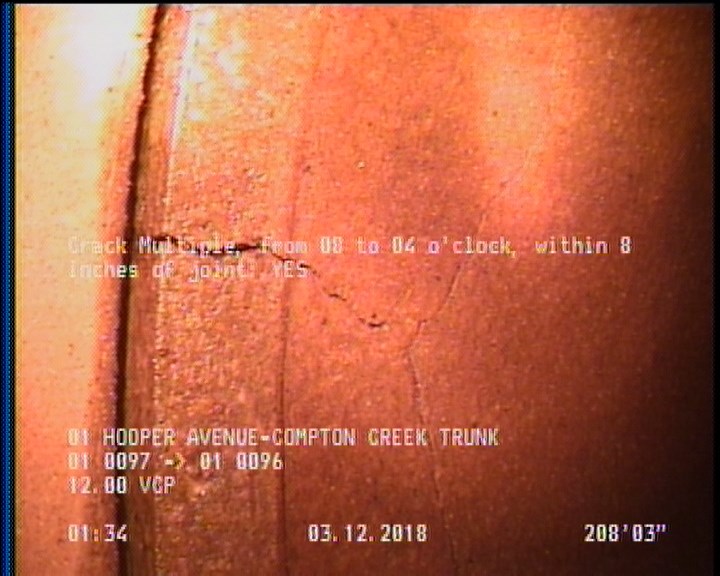

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    208.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

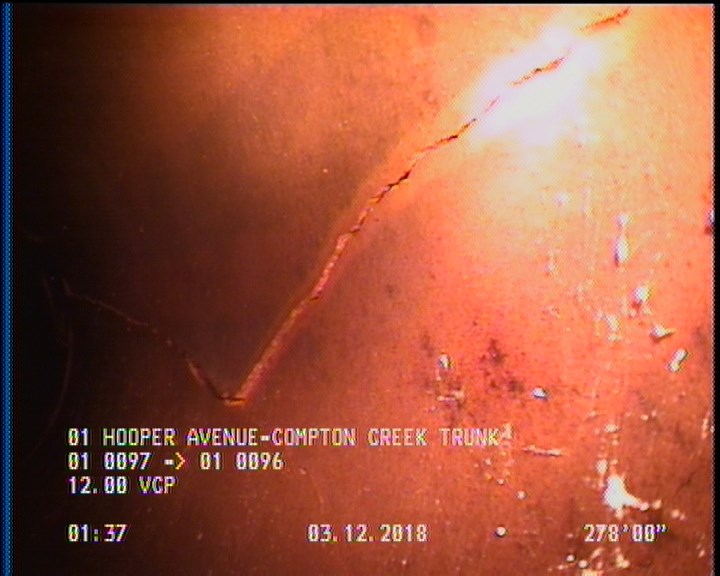

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    278 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P00766Work order 691313

Observations (18)

DistanceCodeObservation
292.4AMH01 0096
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWM—
292.4FM—
95.8TFC—
0MWL—
0AMH01 0097
2DAGS—
234TFC—
190.9CM—
292.4MGOCOCKROACHES IN MANHOLE
292.4DAGS—
126.1TFA—
207.1TFC—
208.3CM—
0MGOCOCKROACHES IN MANHOLE
159.3TF—
278FM—

Properties (4)

additional_info
SC358486
custom_field_two
2
customer
LACSD
datetime
2018-03-12T02:20:51-07:00
