Wastewater/Activity/PacpInspection/1.0Mar 1, 2018, 09:41 AM
01 0069_01 0068_01032018_025919.mp4
- Date
- 03/01/2018
- W/O
- 691313
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00209
- PipeID
- P00738
- Time
- 1:41 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5470
- Sewer Name
- 01 HOOPER AVENUE-COMPTON CREEK TRUNK
- City
- FLORENCE-FIRESTONE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_691313_TV01255_MAR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 0069
- Downstream MH
- 01 0068
- Dir. of Survey
- Downstream
- Length Surveyed
- 301.2 ft.
- Total Length
- 301.2 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 177
- O&M Index
- 2
- O&M Quick
- 412K
- O&M Rating
- 125
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 302
Observation photos (3)

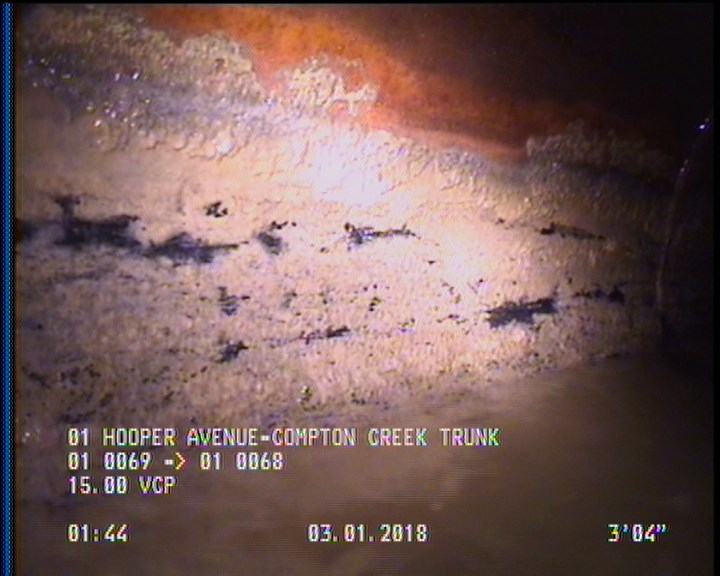

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

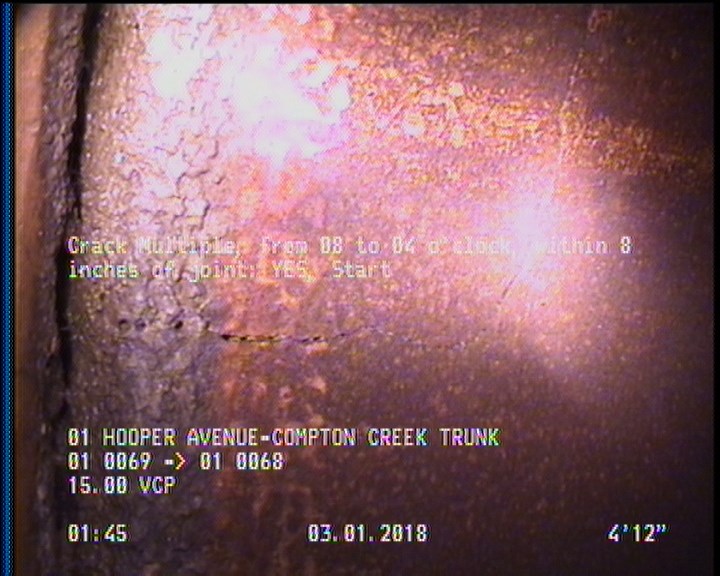

5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

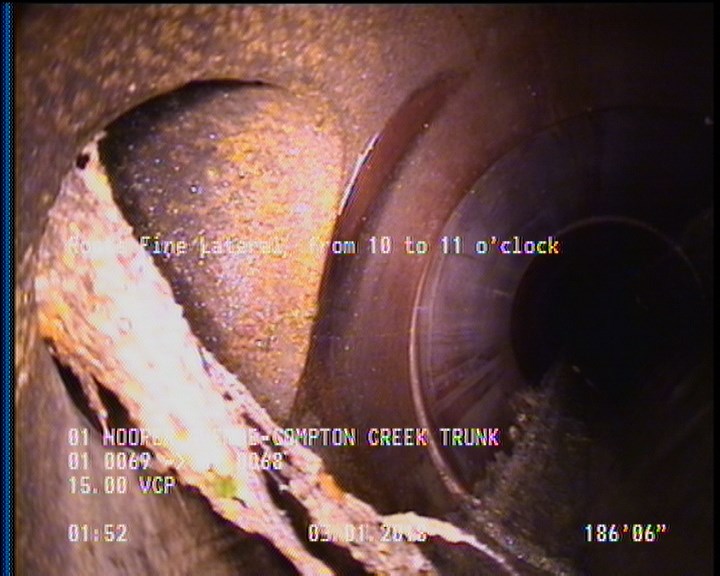

186.5 ft. - Roots Fine Lateral, from 10 to 11 o'clock, 10% cross sectional loss
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 146.6 | TFA | — |
| 301.2 | DAGS | — |
| 5 | CM | — |
| 301.2 | MGO | COCKROACHES IN MANHOLE |
| 64.5 | TFC | — |
| 0 | MWL | — |
| 301.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 186.5 | RFL | — |
| 2 | DAGS | — |
| 301.2 | CM | — |
| 223 | TFA | — |
| 301.2 | AMH | 01 0068 |
| 110.5 | TFA | — |
| 186.5 | TFA | — |
| 0 | AMH | 01 0069 |
| 265.7 | TFC | — |
Properties (4)
- additional_info
- SC358476
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-01T01:41:13-08:00
