Wastewater/Activity/PacpInspection/1.0Apr 4, 2018, 05:05 PM
C 0592_C 0591_442018_101920.mp4
- Date
- 04/04/2018
- W/O
- 0695641
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00929
- PipeID
- P22828
- Time
- 10:05 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7675
- Sewer Name
- C JOINT OUTFALL C - UNIT 3E REPLACEMENT
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- 20180404MI_JOINT_OUTFALL_C_UNIT_3E_REPLACEMENT
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 31.5 in.
- Upstream MH
- C 0592
- Downstream MH
- C 0591
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

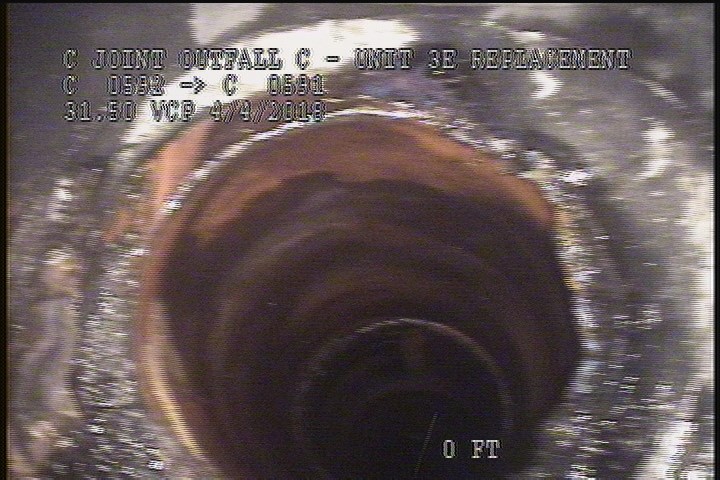

0 ft. - General Observation - AIRLINE AT THE MH, 12 OCLOCK

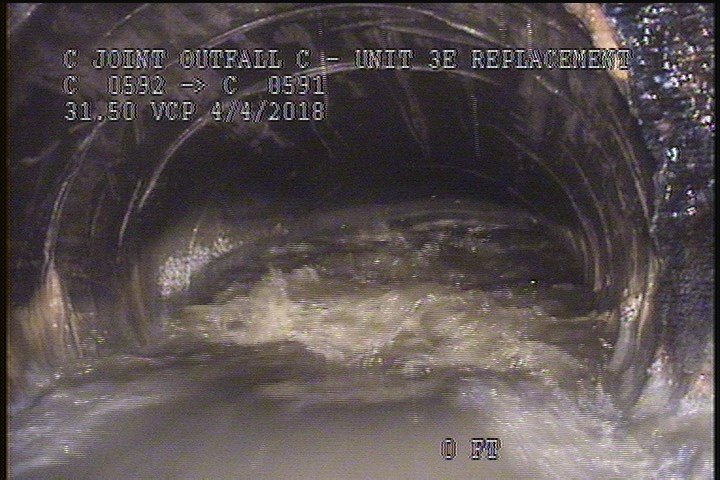

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

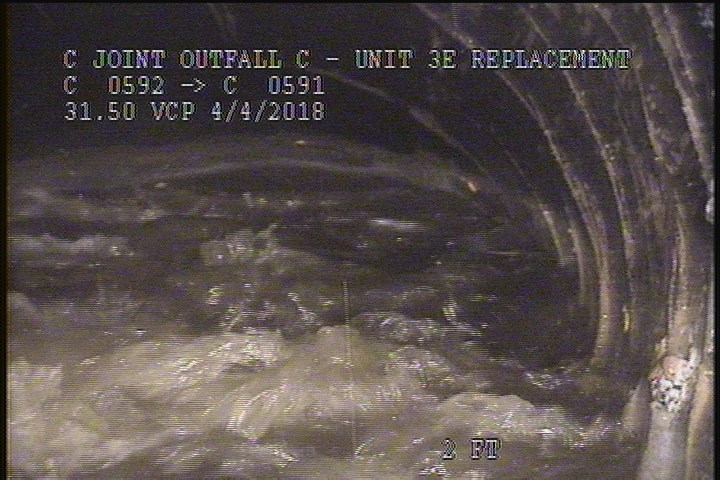

2 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

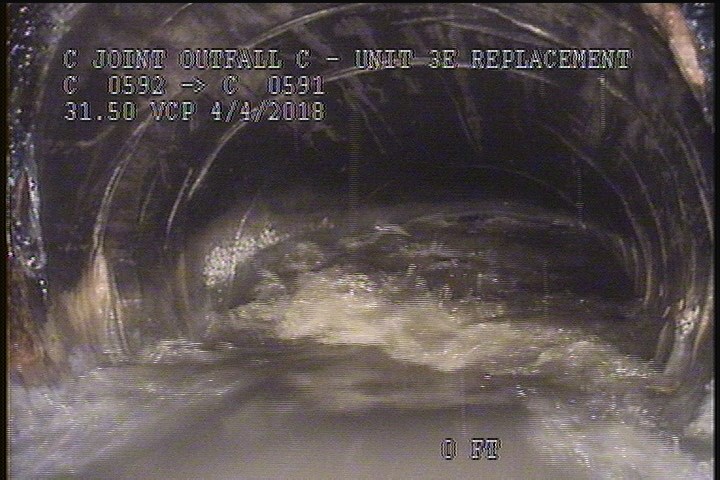

2 ft. - General Observation - DOWNLEG PIPE OF THE U/S SIPHON
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | LINER IN PLACE |
| 2 | DAGS | — |
| 2 | MSA | VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON |
| 0 | MWL | — |
| 0 | AMH | 10:18 AM |
| 0 | MWM | — |
| 2 | LD | — |
| 2 | MGO | DOWNLEG PIPE OF THE U/S SIPHON |
| 0 | MGO | AIRLINE AT THE MH, 12 OCLOCK |
Properties (6)
- additional_info
- VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-04T10:05:21-07:00
- lining
- CIPP
- year_laid
- 20001223
