Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2018, 08:26 AM

  • 02 2100_02 2099_3302018_030205.mp4

Date
03/30/2018
W/O
0696275
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00283
PipeID
P04201
Time
1:26 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0795
Sewer Name
02 MONTEBELLO INTERCEPTOR TRUNK, SECTS 1&2
City
C0MMERCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
18
Purpose
Routine Assessment
Project
20180330MDM_MONTEBELLO_INTERCEPTOR_TRUNK_SECTS_1_2
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
02 2099
Downstream MH
02 2100
Dir. of Survey
Upstream
Length Surveyed
4 ft.
Total Length
4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 02 2099 to 02 2100
MH: 02 2099MH: 02 2100upstream0 ft. MSA - Survey Abandoned - UPLEG DOWNSTREAM SIPHON(3:15AM}4 ft. AMH - Downstream Manhole, Survey Begins - 3:05AM4 ft. MWL - Water Level, 80 %of cross sectional area4 ft. MWM - Water Mark, 100 %of cross sectional area

Observation photos (2)

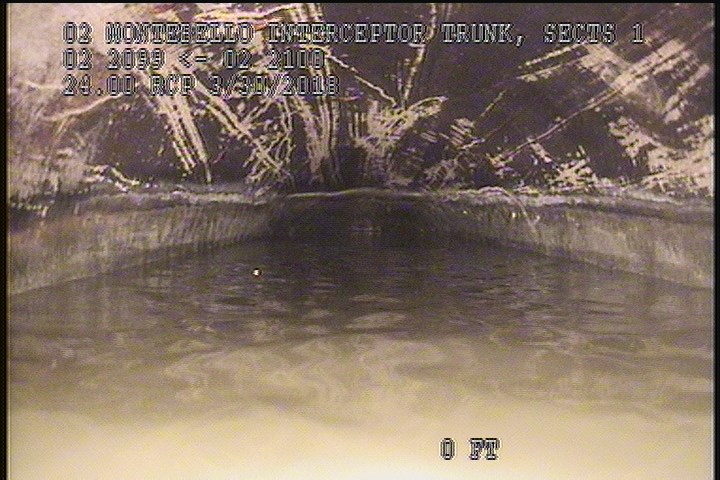

  • Water Mark, 100 %of cross sectional area

    0 ft. - Water Mark, 100 %of cross sectional area

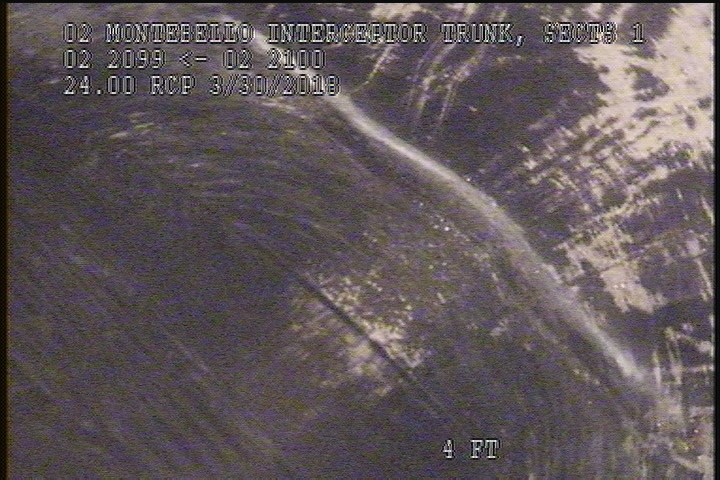

  • Survey Abandoned - UPLEG DOWNSTREAM SIPHON(3:15AM}

    4 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON(3:15AM}

All inspections of P04201Work order 0696275

Observations (4)

DistanceCodeObservation
4MSAUPLEG DOWNSTREAM SIPHON(3:15AM}
0AMH3:05AM
0MWL—
0MWM—

Properties (6)

additional_info
UPLEG DOWNSTREAM SIPHON
custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2018-03-30T01:26:18-07:00
lining
CIPP
