Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 31, 2018, 11:53 AM

  • 15 0769_15 0768_3312018_045952.mp4

Date
03/31/2018
W/O
0670896
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P12970
Time
4:53 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0796
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Routine Assessment
Project
20180330MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0769
Downstream MH
15 0768
Dir. of Survey
Downstream
Length Surveyed
200.5 ft.
Total Length
200.5 ft.
Structural Index
3
Structural Quick
4222
Structural Rating
12
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 15 0769 to 15 0768
MH: 15 0769MH: 15 0768downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE MODERATE AGG ATTCHED2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MODERATE AGG2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT AGG22.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped85.3 ft. SSS - Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE MODERATE AGG ATTCHED98.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open162.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped200 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN200 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - MODERATE AGG200 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SLIGHT AGG200 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE MODERATE AGG ATTCHED200.5 ft. AMH - Downstream Manhole, Survey Ends - 5:15AM

Observation photos (4)

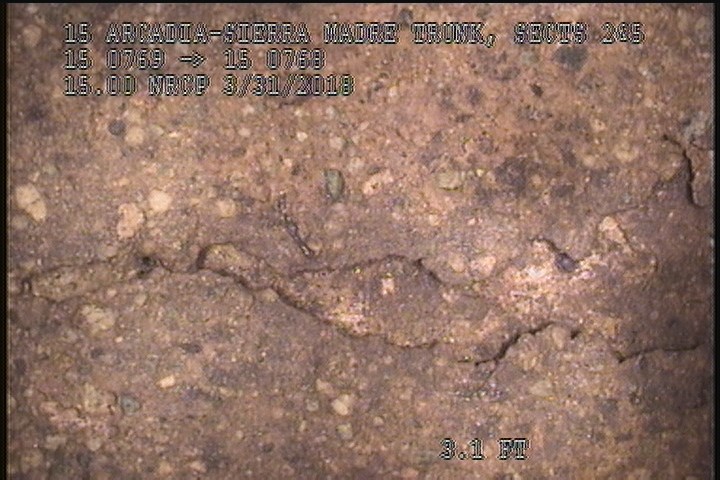

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE MODERATE AGG ATTCHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE MODERATE AGG ATTCHED

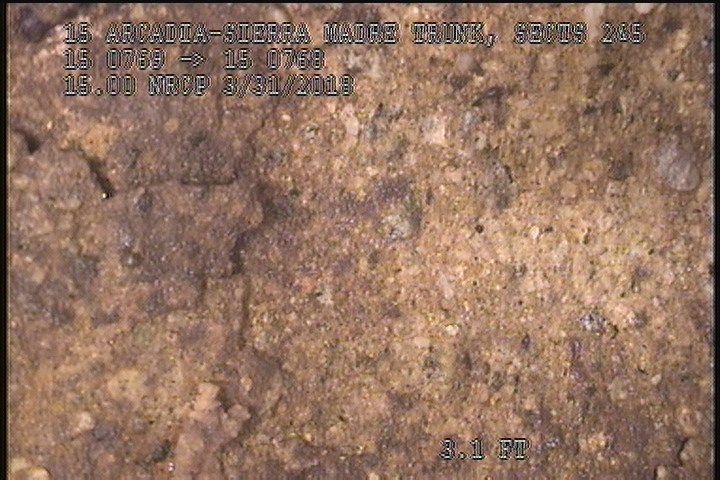

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MODERATE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MODERATE AGG

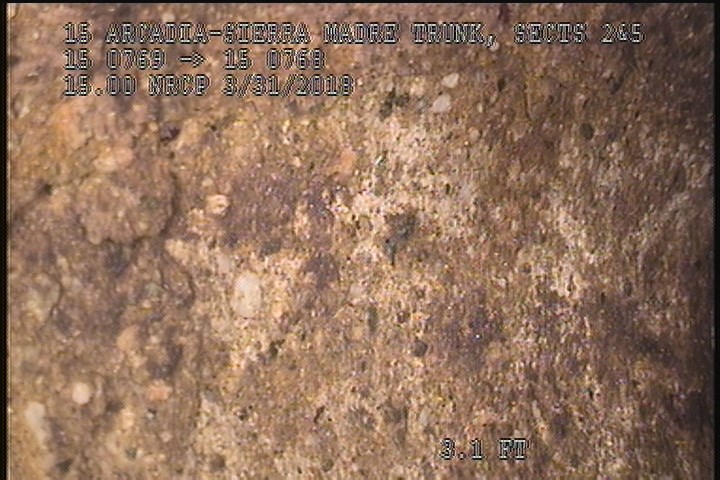

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT AGG

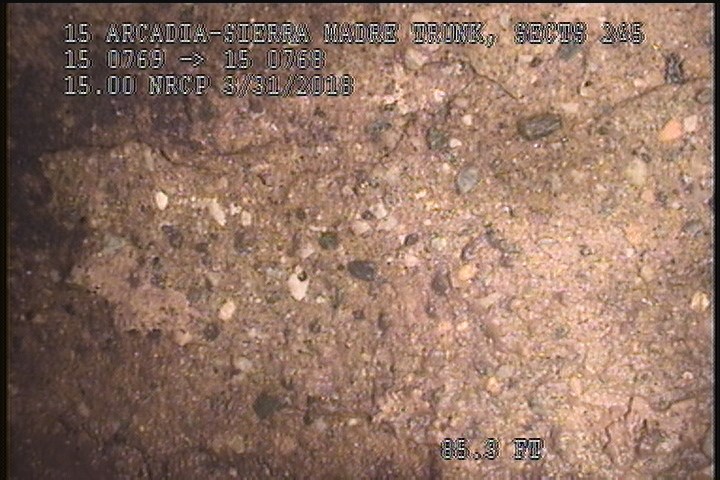

  • Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE MODERATE AGG ATTCHED

    85.3 ft. - Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE MODERATE AGG ATTCHED

All inspections of P12970Work order 0670896

Observations (15)

DistanceCodeObservation
0MWL—
0AMH4:55AM
200.5AMH5:15AM
2SSSPEELING CONCRETE MODERATE AGG ATTCHED
85.3SSSPEELING CONCRETE MODERATE AGG ATTCHED
98.2TFOpen
200MGOConn. @ Mh, 3 O' Clock. OPEN
2SAMMODERATE AGG
22.1TFCCapped
0MWM—
200SAMMODERATE AGG
2SAMSLIGHT AGG
200SAMSLIGHT AGG
162.2TFCapped
200SSSPEELING CONCRETE MODERATE AGG ATTCHED

Properties (4)

custom_field_three
PELING CONCRETE MODERATE AGG ATTCHED
custom_field_two
2
customer
LACSD
datetime
2018-03-31T04:53:03-07:00
