Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 29, 2018, 03:54 PM

  • Section#1_02 2091_02 2090__3292018__G6983.mp4

Date
03/29/2018
W/O
0695755
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00247
PipeID
P04407
Time
8:54 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6983
Sewer Name
02 DOUGLAS AVENUE RELIEF TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20180329DF_DOUGLAS_AVE_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 2091
Downstream MH
02 2090
Dir. of Survey
Downstream
Length Surveyed
156.2 ft.
Total Length
156.2 ft.
Structural Index
2
Structural Quick
2E00
Structural Rating
60
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
60
Pipe schematic from manhole 02 2091 to 02 2090
MH: 02 2091MH: 02 2090downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:58 AM0.1 ft. MWM - Water Mark, 15 %of cross sectional area0.1 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start41.8 ft. MGP - General Photograph71.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"100.7 ft. MGP - General Photograph113.6 ft. MGP - General Photograph113.6 ft. RPP - Repair Patch, from 12 to 12 o'clock, within 8 inches of joint: YES, Start - POSSIBLE PATCH113.6 ft. MMC - Material Change, Not know - PATCH116.6 ft. RPP - Repair Patch, from 12 to 12 o'clock, within 8 inches of joint: YES, Finish - PATCH153.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish154.9 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH156.2 ft. AMH - Downstream Manhole, Survey Ends - 10:13 AM

Observation photos (5)

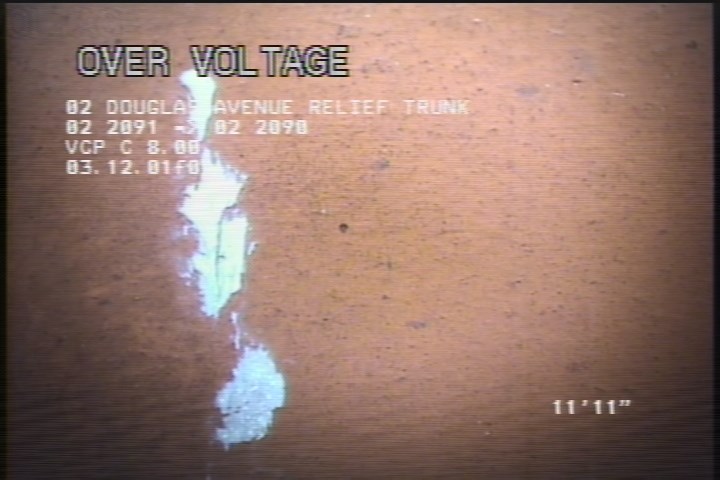

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

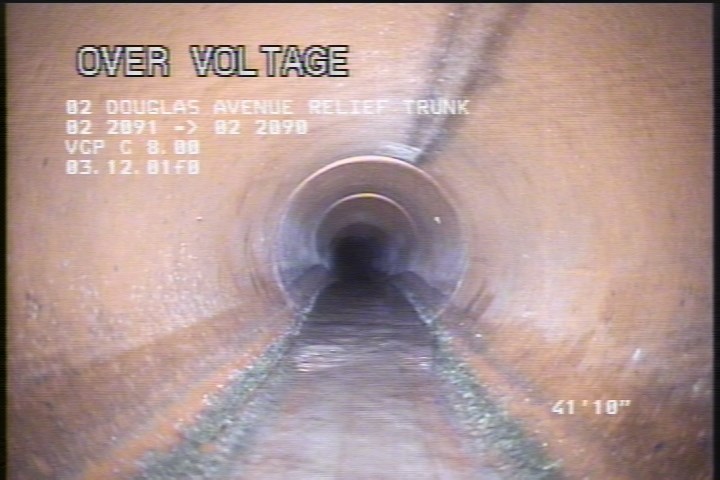

  • General Photograph

    41.8 ft. - General Photograph

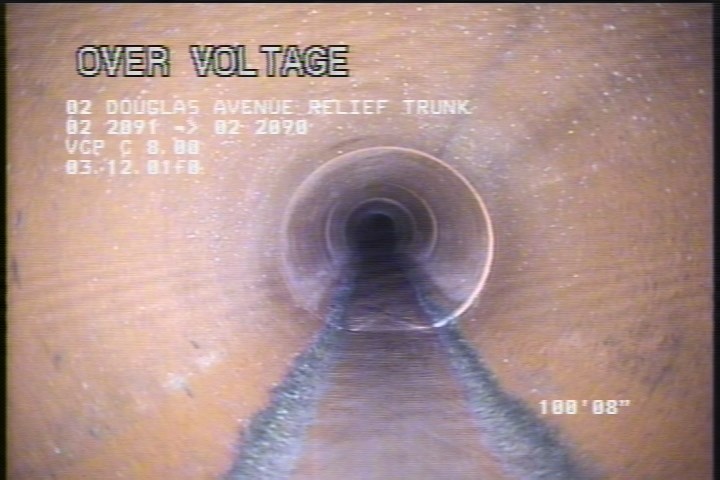

  • General Photograph

    100.7 ft. - General Photograph

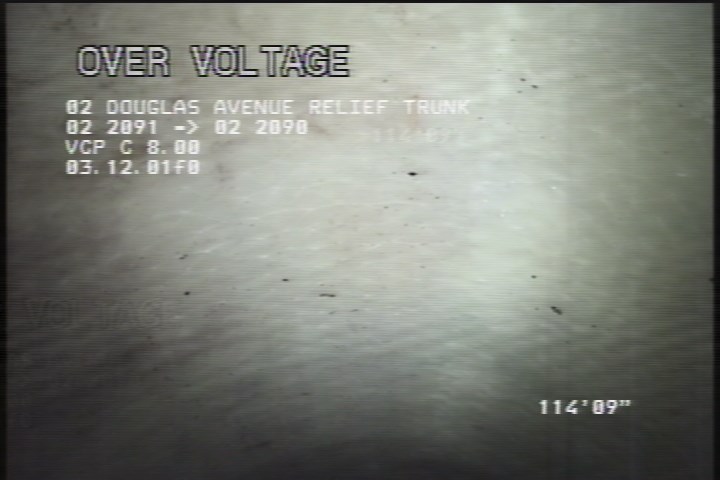

  • General Photograph

    113.6 ft. - General Photograph

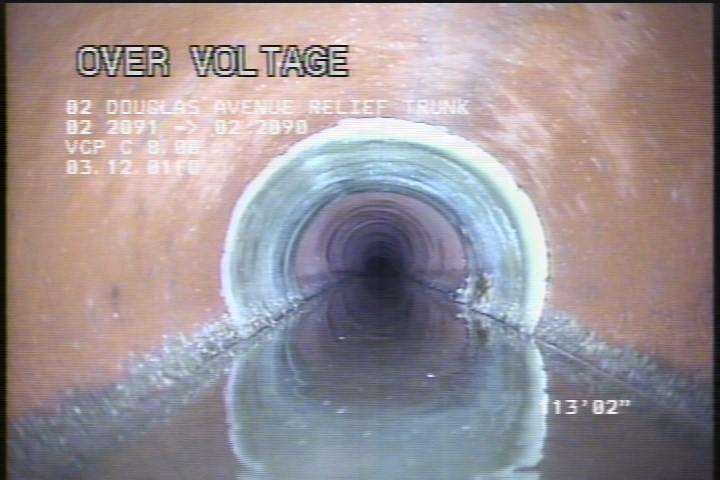

  • Repair Patch, from 12 to 12 o'clock, within 8 inches of joint: YES, Start - POSSIBLE PATCH

    113.6 ft. - Repair Patch, from 12 to 12 o'clock, within 8 inches of joint: YES, Start - POSSIBLE PATCH

All inspections of P04407Work order 0695755

Observations (14)

DistanceCodeObservation
113.6MGP—
100.7MGP—
113.6RPPPOSSIBLE PATCH
113.6MMCPATCH
41.8MGP—
156.2AMH10:13 AM
71.4TFA—
0AMH8:58 AM
2SSS—
0.1MWM—
0.1MWL—
154.9MGOGREASE THROUGHOUT THE REACH
116.6RPPPATCH
153.6SSS—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2018-03-29T08:54:56-07:00
year_laid
19820504
