Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2018, 09:29 AM

  • 14 0466_14 0465 _24012018_014923.mp4

Date
01/24/2018
W/O
685065
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00580
PipeID
P18555
Time
1:29 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5384
Sewer Name
14 TRUNK "D"
City
LANCASTER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
21
Purpose
Routine Assessment
Project
WO_685065_TV14023_FEB2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
14 0465
Downstream MH
14 0466
Dir. of Survey
Upstream
Length Surveyed
267 ft.
Total Length
267 ft.
Structural Index
3
Structural Quick
3J2J
Structural Rating
265
O&M Index
4
O&M Quick
4131
O&M Rating
7
Overall Index
3
Overall Quick
—
Overall Rating
272
Pipe schematic from manhole 14 0465 to 14 0466
MH: 14 0465MH: 14 0466upstream0 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - DUE TO DEBRIS, REVERSAL COMPLETE.0 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - DEBRIS38.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"111.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"188.5 ft. TFC - Tap Factory Made Capped Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6"250 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"265 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start265 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start267 ft. MWL - Water Level, 30 %of cross sectional area267 ft. AMH - Downstream Manhole, Survey Begins - 14 0465267 ft. MWM - Water Mark, 50 %of cross sectional area

Observation photos (2)

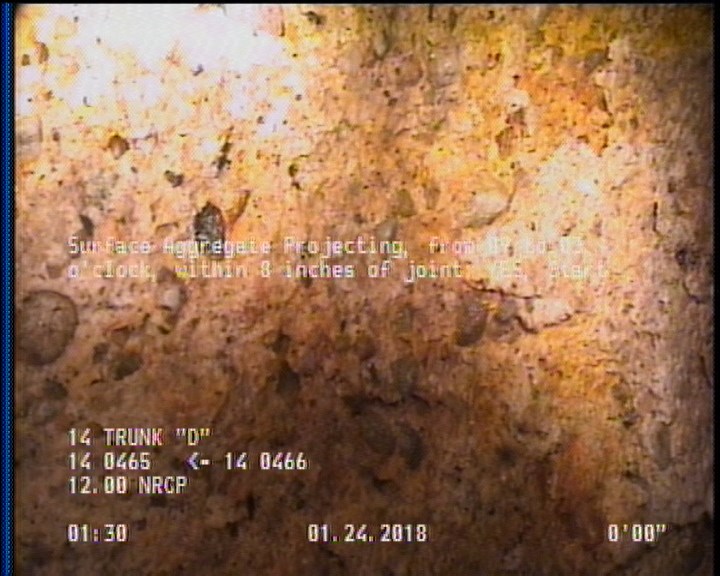

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

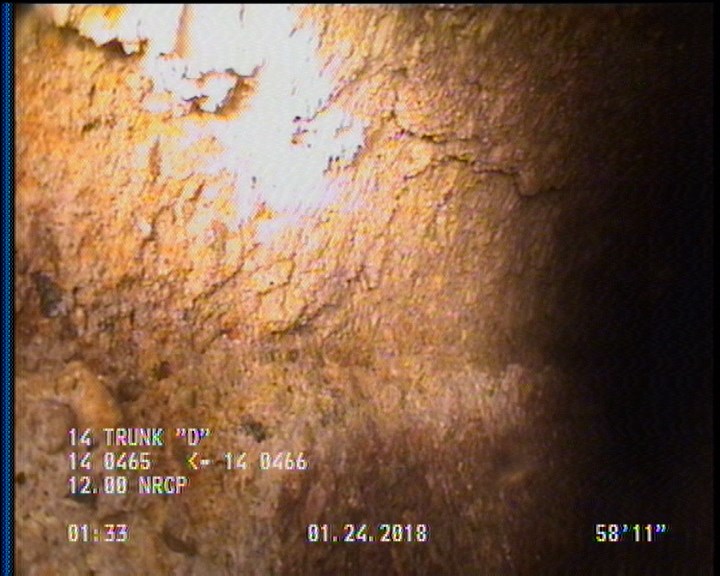

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P18555Work order 685065

Observations (13)

DistanceCodeObservation
155.4TFC—
228.5TFC—
267SSS—
0MWL—
0AMH14 0465
2SAP—
78.5TFC—
2SSS—
267SAP—
267MSADUE TO DEBRIS, REVERSAL COMPLETE.
0MWM—
17TFA—
267DSZDEBRIS

Properties (4)

additional_info
SC346963
custom_field_two
2
customer
LACSD
datetime
2018-01-24T01:29:33-08:00
