Wastewater/Activity/PacpInspection/1.0Jan 25, 2018, 07:02 AM
14 0475_14 0474 _25012018_004734.mp4
- Date
- 01/24/2018
- W/O
- 685065
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00580
- PipeID
- P18564
- Time
- 11:02 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5385
- Sewer Name
- 14 TRUNK "D"
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_685065_TV14023_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 14 0475
- Downstream MH
- 14 0474
- Dir. of Survey
- Downstream
- Length Surveyed
- 331.7 ft.
- Total Length
- 331.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

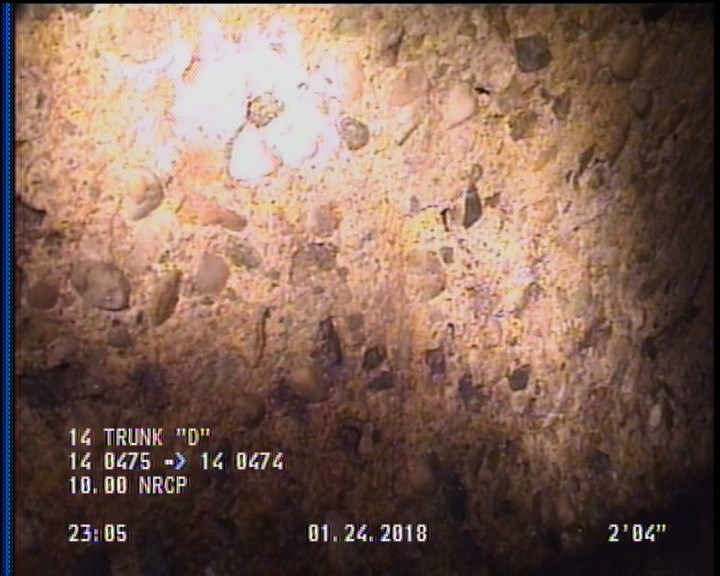

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

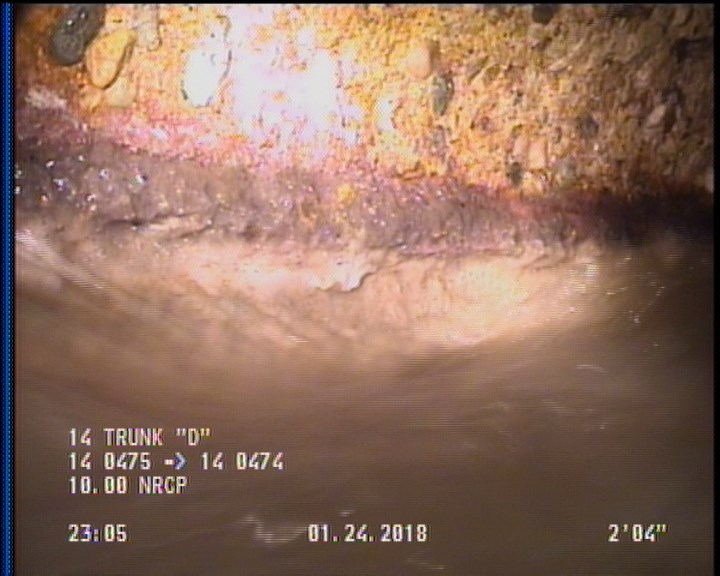

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (21)
| Distance | Code | Observation |
|---|---|---|
| 23.3 | TFA | — |
| 329.2 | SAP | — |
| 0 | MWM | — |
| 331.7 | AMH | 14 0474 |
| 170 | MGO | POSSIBLY MISSED CONNECTION OBSERVATION @ 2 OC |
| 297.7 | TFC | — |
| 2 | SAP | — |
| 148 | TFC | — |
| 0 | MWL | — |
| 0 | AMH | 14 0475 |
| 99.8 | TFC | — |
| 71.6 | TFC | — |
| 273.7 | TFC | — |
| 329.2 | DAGS | — |
| 200.6 | TFC | — |
| 123.7 | TFC | — |
| 249.1 | TFC | — |
| 2 | DAGS | — |
| 331.7 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 225 | TFA | — |
| 47.3 | TFC | — |
Properties (4)
- additional_info
- SC346964
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-24T23:02:43-08:00
