Wastewater/Activity/PacpInspection/1.0Mar 19, 2018, 10:43 AM
B 0444_B 0443_3192018_040124.mp4
- Date
- 03/19/2018
- W/O
- 0695513
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00093
- PipeID
- P08956
- Time
- 3:43 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0778
- Sewer Name
- B JOINT OUTFALL B - UNIT 5C
- City
- SIERRA MADRE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 11
- Purpose
- Maintenance Related
- Project
- 20180319MDM_JOINT_OUTFALL_B_UNIT_5C
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- B 0443
- Downstream MH
- B 0444
- Dir. of Survey
- Upstream
- Length Surveyed
- 83.4 ft.
- Total Length
- 83.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (4)

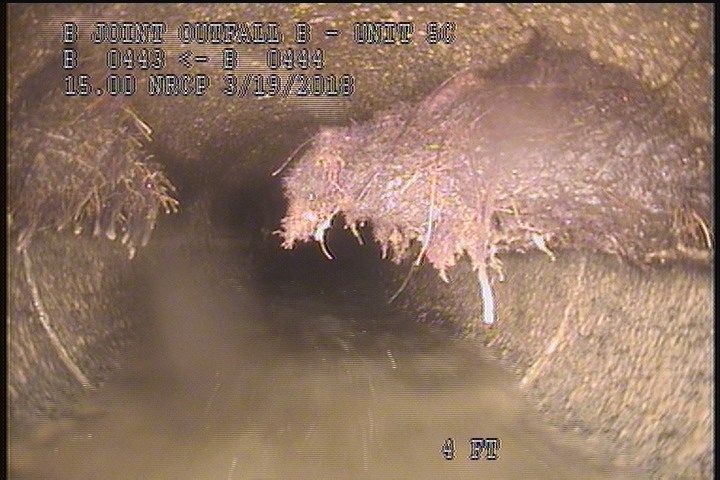

7.7 ft. - Roots Medium Joint, from 09 to 03 o'clock, 25 %, within 8 inches of joint: YESR

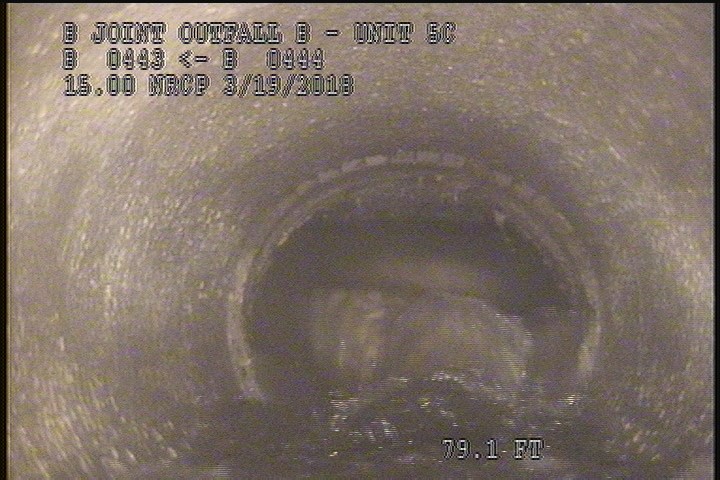

79.1 ft. - General Observation - 80% BLOCKEDLINK PIPE

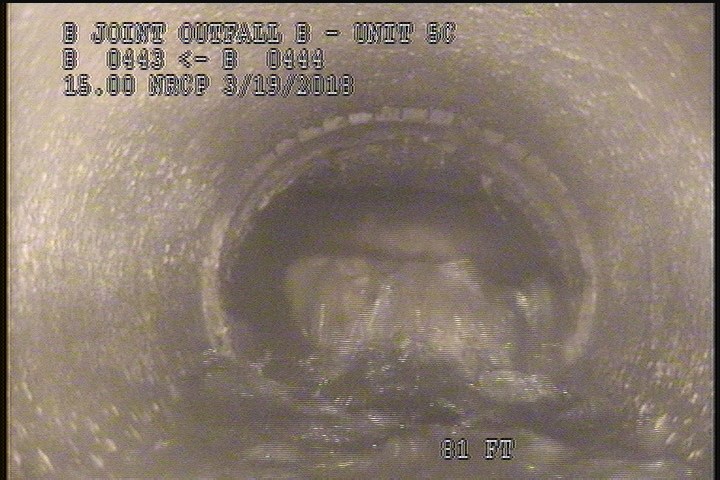

82.6 ft. - General Observation - 80% BLOCKAGE

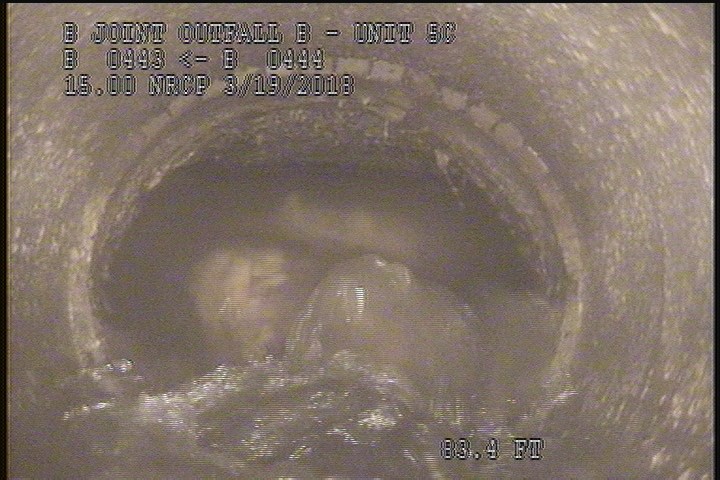

83.4 ft. - General Observation - 80% BLOCKAGE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 82.6 | MGO | 80% BLOCKAGE |
| 79.1 | MGO | 80% BLOCKEDLINK PIPE |
| 7.7 | RMJ | — |
| 0 | AMH | 3:55AM |
| 83.4 | MSA | LINK PIPE(5:05AM) |
| 83.4 | MGO | 80% BLOCKAGE |
| 0 | MWM | — |
Properties (3)
- additional_info
- LINK PIPE INSPECTION
- customer
- LACSD
- datetime
- 2018-03-19T03:43:45-07:00
