Wastewater/Activity/PacpInspection/1.0Mar 28, 2018, 08:41 PM
Section#1_A 0934_A 0933__3282018__G6983.mp4
- Date
- 03/28/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00323
- PipeID
- P20501
- Time
- 1:41 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6983
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- SOUTH GATE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- 20180328DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Upstream MH
- A 0933
- Downstream MH
- A 0934
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (5)

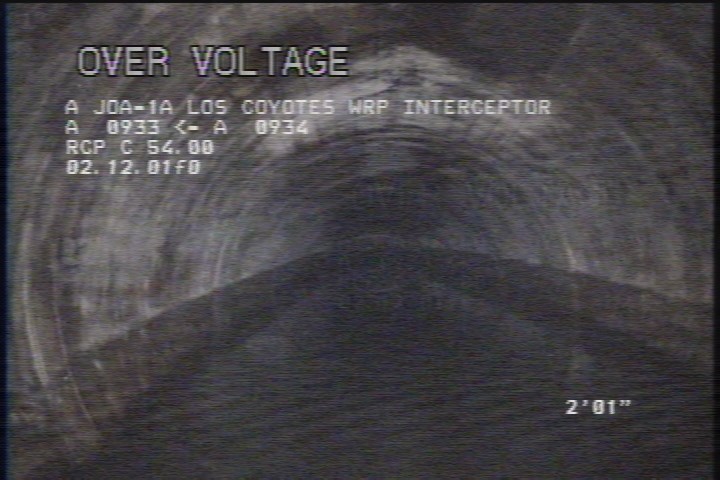

0 ft. - General Observation - AIRLINE

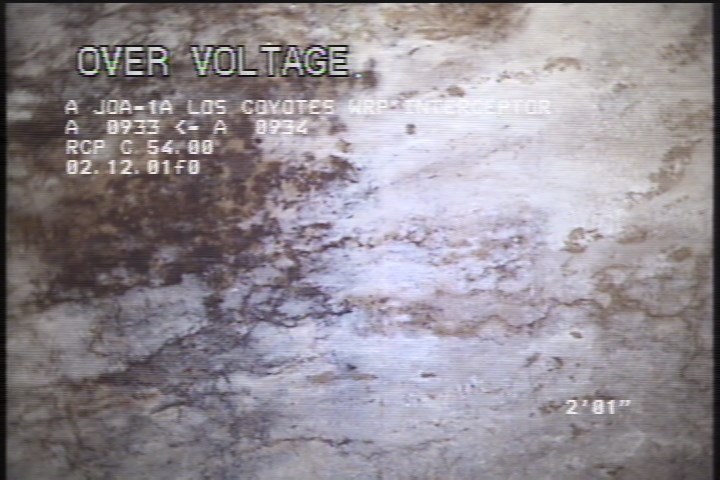

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

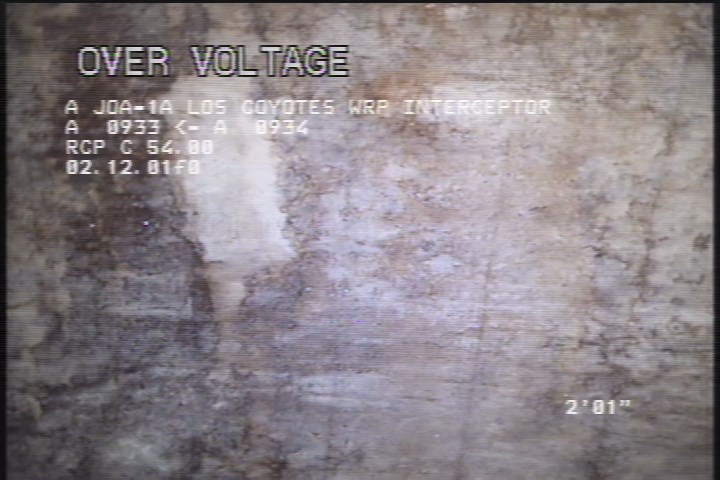

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 60% MAG

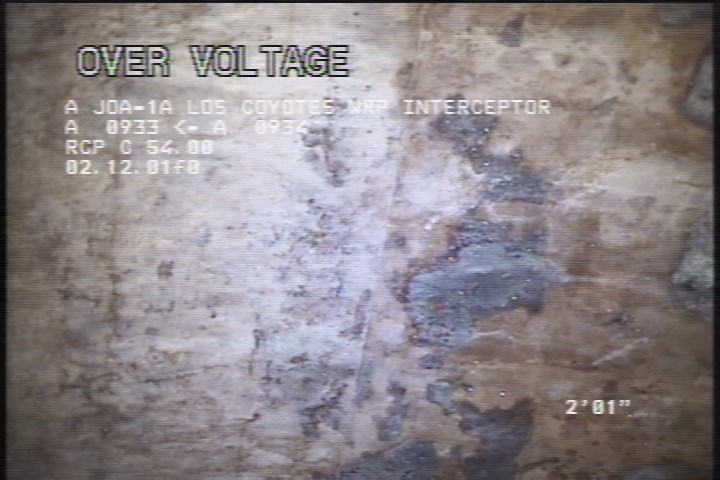

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

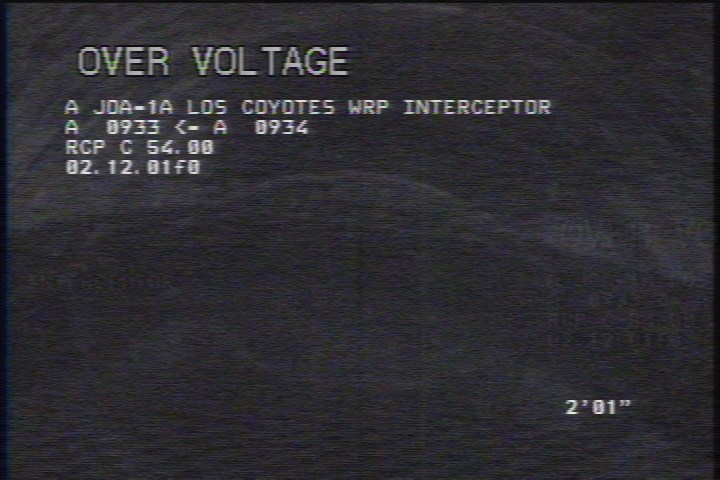

2.1 ft. - Survey Abandoned - 2:10 PM
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | LU | — |
| 2 | SSS | — |
| 0 | MWM | — |
| 2.1 | MSA | 2:10 PM |
| 0 | MWL | — |
| 0 | AMH | 1:46 PM |
| 2 | SZ | 60% MAG |
| 2 | SAV | — |
| 0 | MGO | AIRLINE |
Properties (5)
- additional_info
- VIEW OF THE UPLEG FROM THE D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-28T13:41:39-07:00
- year_laid
- 19921216
