Wastewater/Activity/PacpInspection/1.0Mar 28, 2018, 06:02 PM

  • Section#9_A 0340_A 1045__3282018__G6981.mp4

Date
03/28/2018
W/O
0686845
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00325
PipeID
P21168
Time
11:02 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6982
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Routine Assessment
Project
20180327DF_JOA_1ASAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 1045
Downstream MH
A 0340
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole A 1045 to A 0340
MH: A 1045MH: A 0340upstream0 ft. MSA - Survey Abandoned - 11:20 AM0.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES0.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES0.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 50% MAG0.1 ft. LU - Alignment Up, 45 %2 ft. MWL - Water Level, 100 %of cross sectional area2 ft. MWM - Water Mark, 100 %of cross sectional area2.1 ft. AMH - Downstream Manhole, Survey Begins - 11:04 AM

Observation photos (6)

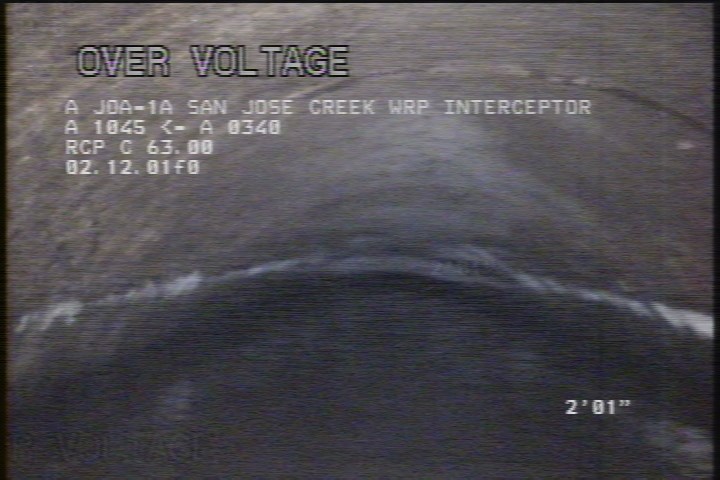

  • Downstream Manhole, Survey Begins - 11:04 AM

    0 ft. - Downstream Manhole, Survey Begins - 11:04 AM

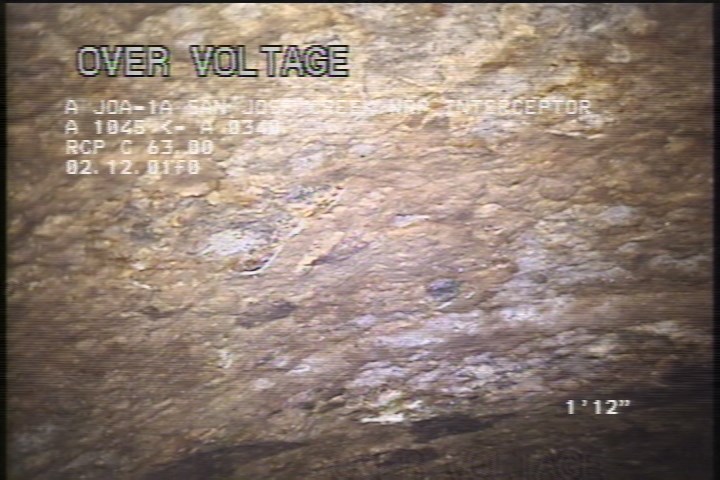

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

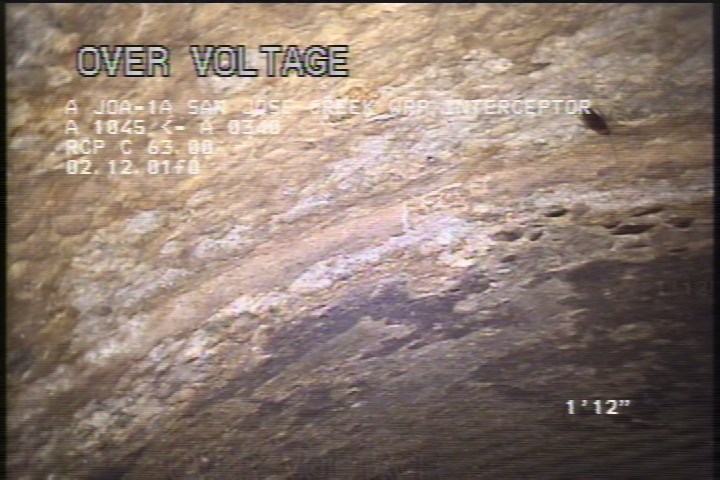

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

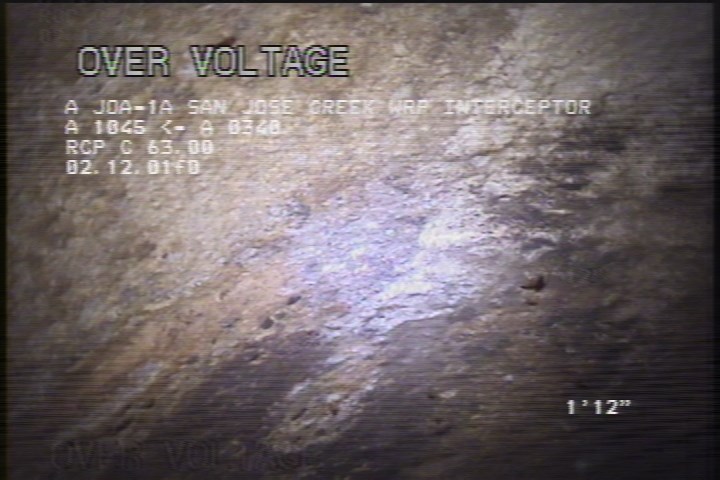

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 50% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 50% MAG

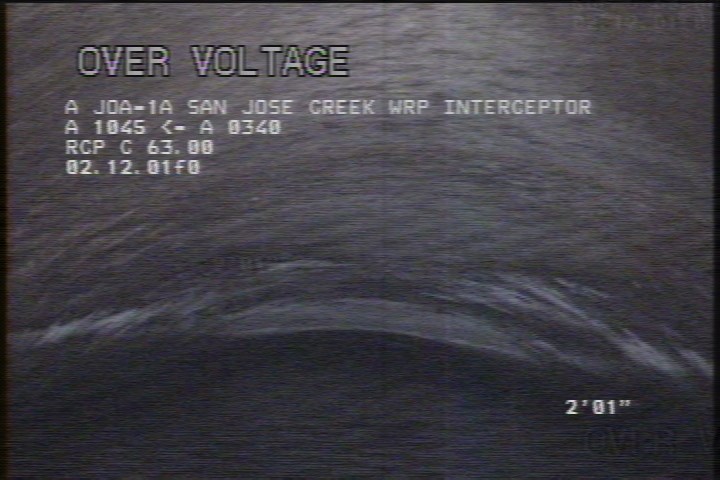

  • Alignment Up, 45 %

    2 ft. - Alignment Up, 45 %

  • Survey Abandoned - 11:20 AM

    2.1 ft. - Survey Abandoned - 11:20 AM

All inspections of P21168Work order 0686845

Observations (8)

DistanceCodeObservation
2.1MSA11:20 AM
0.1MWL—
2SSS—
2SAV—
2SZ50% MAG
0.1MWM—
0AMH11:04 AM
2LU—

Properties (4)

additional_info
VIEW OF UPLEG FROM THE D/S SIPHON. CORRECT TAPE NUMBER IS (G6982)
custom_field_two
5
customer
LACSD
datetime
2018-03-28T11:02:04-07:00
