Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 23, 2018, 10:57 AM

  • Section#2_F 0219_F 0218__3232018__G6980.mp4

Date
03/23/2018
W/O
0687463
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00050
PipeID
P10349
Time
3:57 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6980
Sewer Name
F JOINT OUTFALL F - UNIT 7H
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
38
Purpose
Routine Assessment
Project
20180322MDM_JOINT_OUTFALL_F_UNIT_7H
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
F 0219
Downstream MH
F 0218
Dir. of Survey
Downstream
Length Surveyed
340.7 ft.
Total Length
340.7 ft.
Structural Index
3
Structural Quick
3M2M
Structural Rating
343
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
343
Pipe schematic from manhole F 0219 to F 0218
MH: F 0219MH: F 0218downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 70% START 8:00 TOI 4:002 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE23.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB119.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB221.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB232.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC316.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB340.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG SPORATIC340.1 ft. MGO - General Observation - MH CONN 9:00 ACTIVE340.1 ft. MGO - General Observation - MAG COAT 70% FINISH340.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING CONCRETE340.7 ft. AMH - Downstream Manhole, Survey Ends - 5:30AM

Observation photos (4)

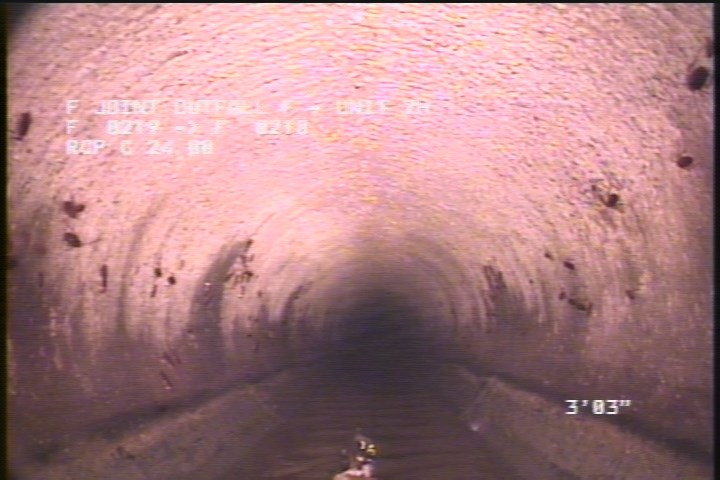

  • General Observation - MAG COAT 70% START 8:00 TOI 4:00

    2 ft. - General Observation - MAG COAT 70% START 8:00 TOI 4:00

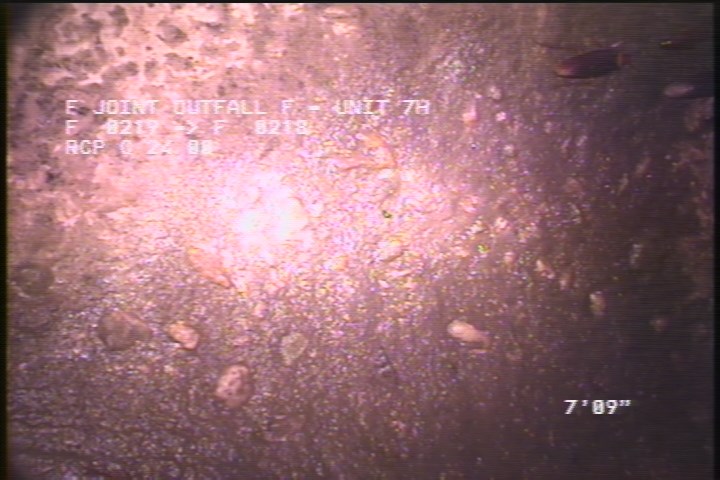

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

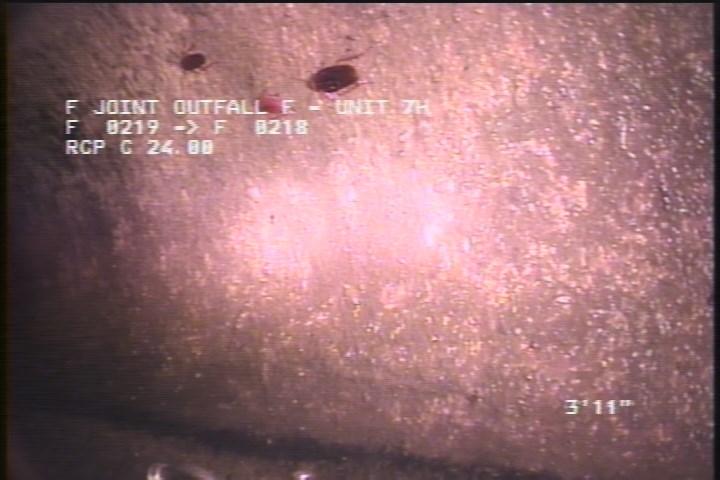

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

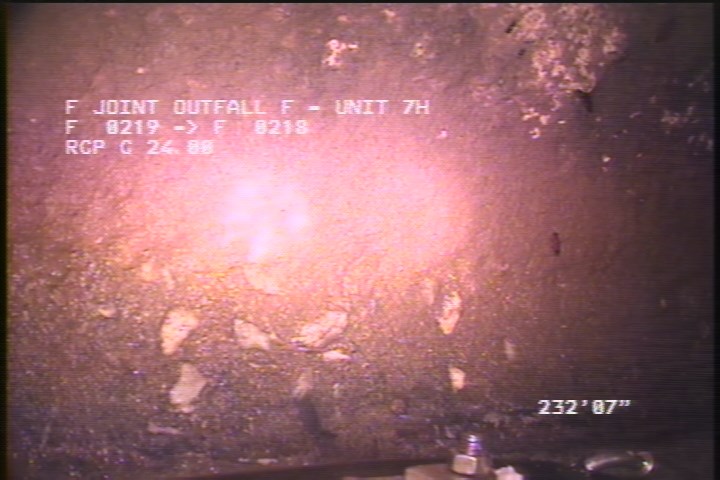

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

    232.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

All inspections of P10349Work order 0687463

Observations (16)

DistanceCodeObservation
0MWM—
0AMH5:10AM
2MGOMAG COAT 70% START 8:00 TOI 4:00
221.7TFCSTUB
119.1TFCSTUB
2SAVSEVERE AGG SPORATIC
316.7TFCSTUB
0MWL—
340.1SAVSEVERE AGG SPORATIC
340.7AMH5:30AM
23.9TFCSTUB
340.1MGOMH CONN 9:00 ACTIVE
2SSSBLISTERING CONCRETE
340.1MGOMAG COAT 70% FINISH
340.1SSSBLISTERING CONCRETE
232.6SAVSEVERE AGG SPORATIC

Properties (4)

custom_field_three
SEVERE AGG VISIBLE SPORATIC - BLISTERING CONCRETE
custom_field_two
4
customer
LACSD
datetime
2018-03-23T03:57:48-07:00
