Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 22, 2018, 05:32 PM

  • C 0174_C 0173_3222018_110305.mp4

Date
03/22/2018
W/O
0697030
Weather
Light Rain
Operator/Surveyor
FRANKLIN
Sewer ID
Z00130
PipeID
P09698
Time
10:32 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7664
Sewer Name
C JOINT OUTFALL C - UNIT 5C
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20180322DF_JOINT_OUTFALL_C_UNIT_5C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
C 0174
Downstream MH
C 0173
Dir. of Survey
Downstream
Length Surveyed
257.3 ft.
Total Length
257.3 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole C 0174 to C 0173
MH: C 0174MH: C 0173downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:37 AM0.1 ft. MWL - Water Level, 20 %of cross sectional area0.1 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 40% MAG2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. ACTIVE2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active141.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"190.5 ft. MGP - General Photograph201.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES254.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish254.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish254.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% MAG257.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active257.3 ft. AMH - Downstream Manhole, Survey Ends - 11:20 AM257.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN

Observation photos (5)

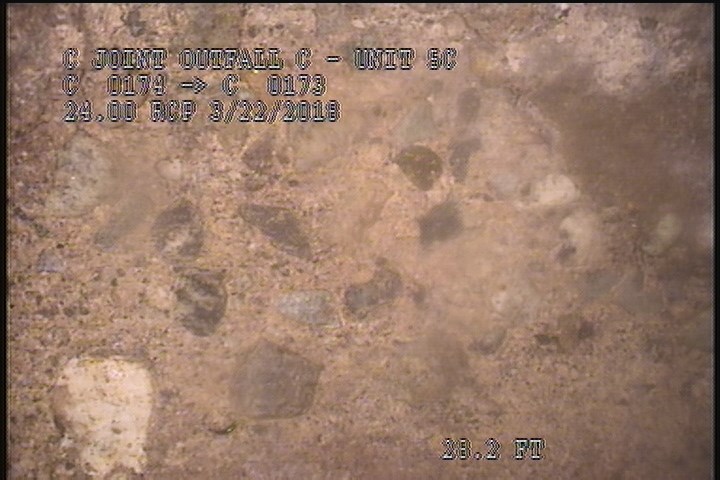

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

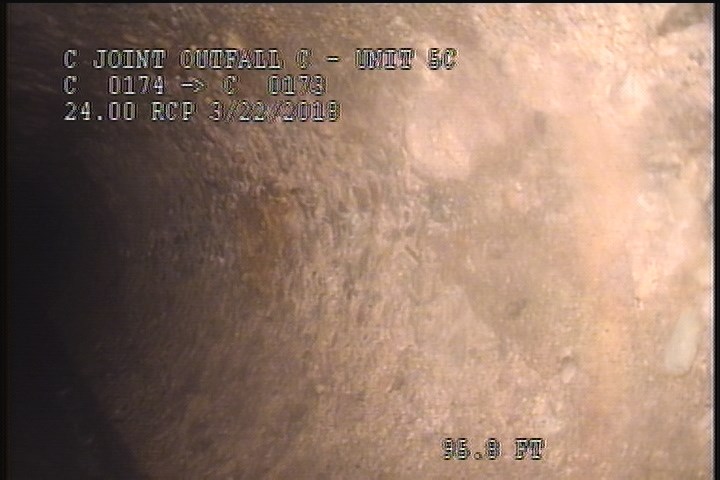

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 40% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 40% MAG

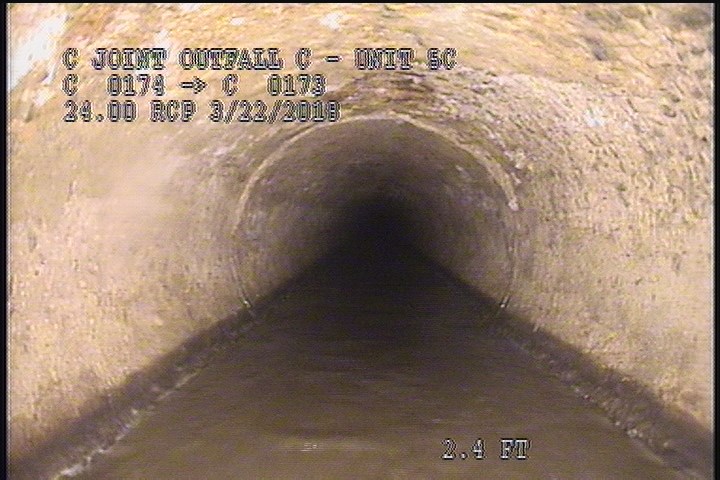

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

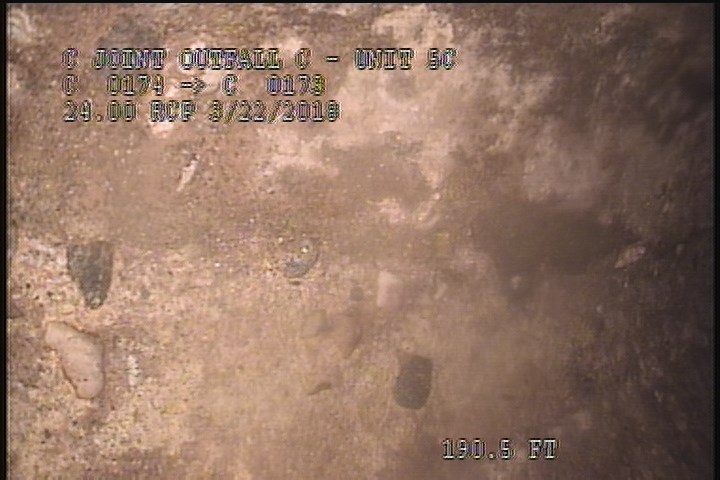

  • General Photograph

    190.5 ft. - General Photograph

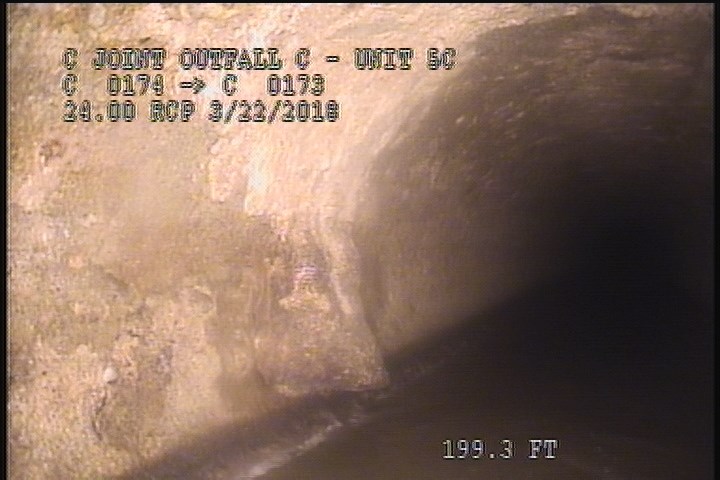

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES

    201.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES

All inspections of P09698Work order 0697030

Observations (17)

DistanceCodeObservation
0.1MWL—
2SAV—
254.1SAV—
201.7DAGS—
2SZ40% MAG
257.3MGOConn. @ Mh, 3 O' Clock. Active
0.1MWM—
257.3AMH11:20 AM
257.3MGOConn. @ Mh, 9 O' Clock. OPEN
2SSS—
190.5MGP—
0AMH10:37 AM
2MGOConn. @ Mh, 9 O' Clock. ACTIVE
2MGOConn. @ Mh, 3 O' Clock. Active
254.1SSS—
141.3TFA—
254.1SZ40% MAG

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-03-22T10:32:12-07:00
