Wastewater/Activity/PacpInspection/1.0Mar 14, 2018, 06:27 AM
05 1604_05 1603_13032018_234024.mp4
- Date
- 03/13/2018
- W/O
- 690226
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00551
- PipeID
- P06828
- Time
- 11:27 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5484
- Sewer Name
- 05 203RD STREET TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_690226_TV05176_MAR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 05 1604
- Downstream MH
- 05 1603
- Dir. of Survey
- Downstream
- Length Surveyed
- 296.4 ft.
- Total Length
- 296.4 ft.
- Structural Index
- 4
- Structural Quick
- 4J00
- Structural Rating
- 224
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 118
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 342
Observation photos (2)

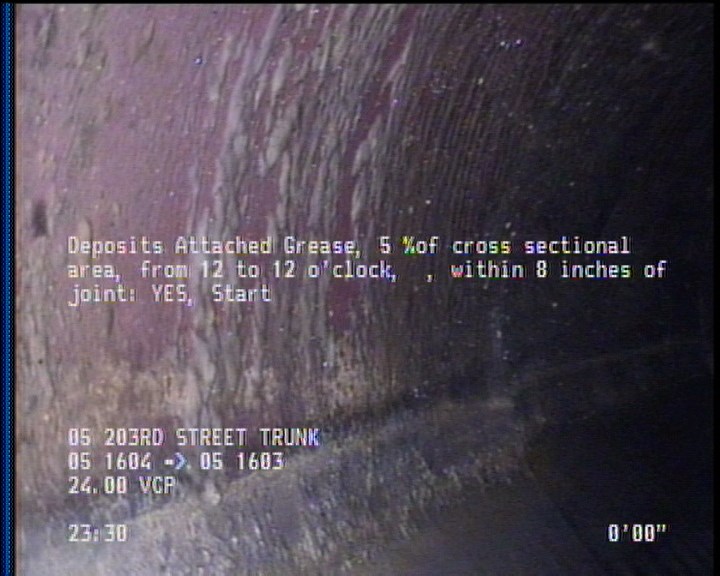

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES, Start

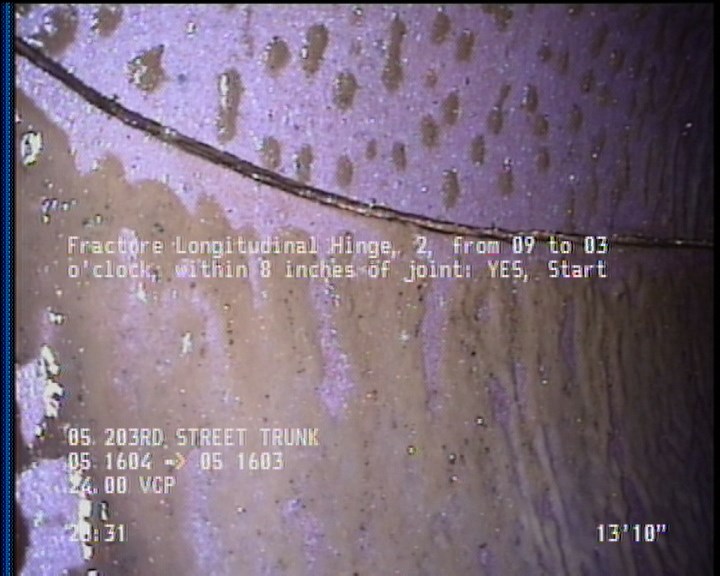

5.5 ft. - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 1604 |
| 111.6 | TBA | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 272.8 | TBA | — |
| 23.4 | TBA | — |
| 296.4 | AMH | 05 1603 |
| 286.4 | FH2 | — |
| 59.2 | TBA | — |
| 0 | MWM | — |
| 5.5 | FH2 | — |
| 295.3 | DAGS | — |
Properties (4)
- additional_info
- SC358490
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-13T23:27:44-07:00
