Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 13, 2018, 06:32 AM

  • 01 0541_01 0540_12032018_234853.mp4

Date
03/12/2018
W/O
690113
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00206
PipeID
P01029
Time
11:32 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5481
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_690113_TV01232_MAR2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0541
Downstream MH
01 0540
Dir. of Survey
Downstream
Length Surveyed
323.3 ft.
Total Length
323.3 ft.
Structural Index
3
Structural Quick
3L22
Structural Rating
199
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
199
Pipe schematic from manhole 01 0541 to 01 0540
MH: 01 0541MH: 01 0540downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 05412 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start29.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: NO29.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"71.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"74.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"122.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"166.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"169.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"192.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"254.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"263.7 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES275.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"305.2 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"315.7 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES317.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"323.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE323.3 ft. AMH - Downstream Manhole, Survey Ends - 01 0540323.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

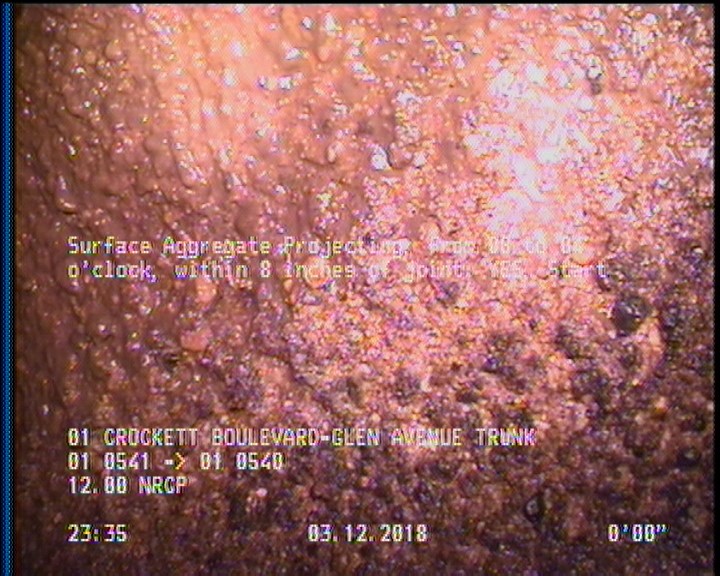

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

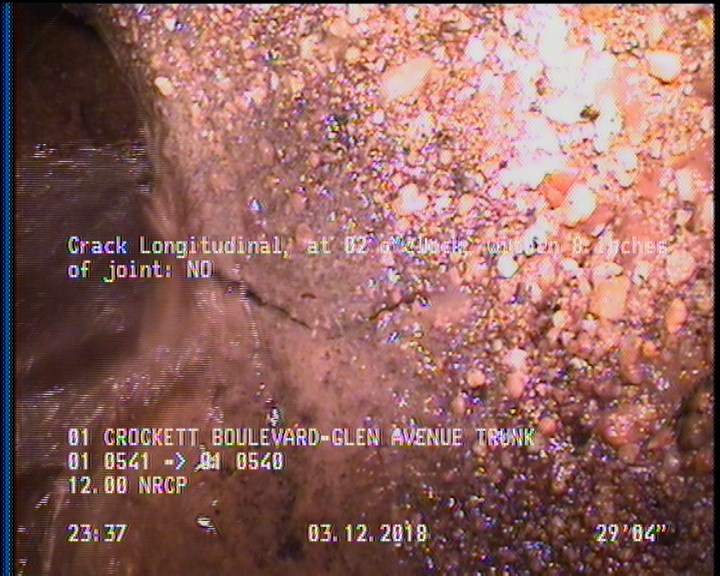

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: NO

    29.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: NO

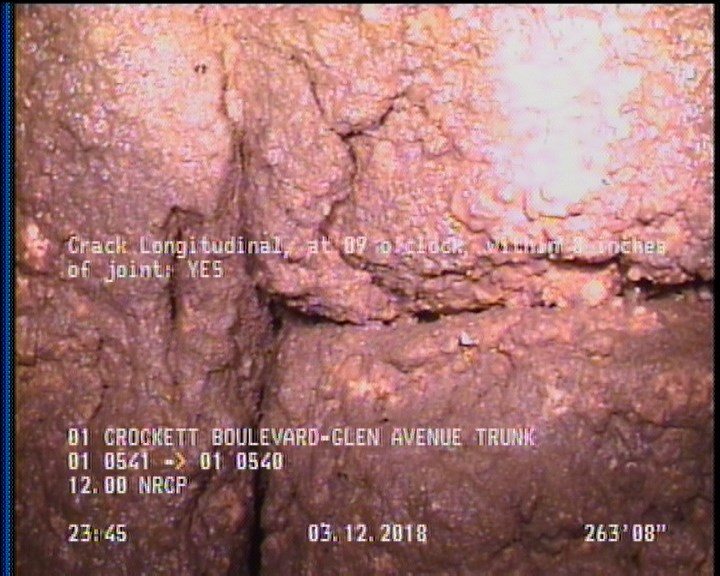

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    263.7 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

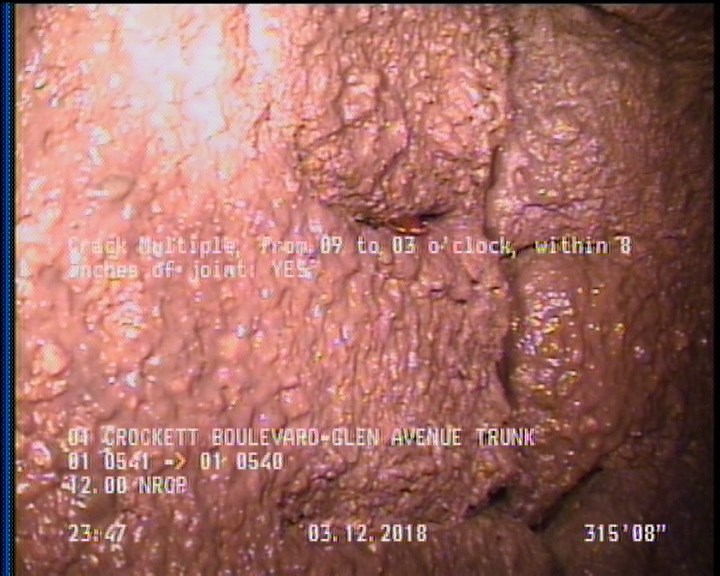

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    315.7 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P01029Work order 690113

Observations (22)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
166.9TFC—
263.7CL—
169.5TF—
0MWM—
0MWL—
323.3MGOCOCKROACHES IN MANHOLE
74.1TFC—
29.3CL—
254.5TFC—
71.4TF—
0AMH01 0541
315.7CM—
305.2TBA—
2SAP—
192.5TF—
317.9TF—
122.9TF—
275.1TF—
29.3TFA—
323.3AMH01 0540
323.3SAP—

Properties (4)

additional_info
SC358487
custom_field_two
2
customer
LACSD
datetime
2018-03-12T23:32:47-07:00
