Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 27, 2018, 10:11 AM

  • 02 1620_02 1619_3272018_041233.mp4

Date
03/27/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00233
PipeID
P04058
Time
3:11 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0790
Sewer Name
02 ARIZONA AVENUE RELIEF TRUNK
City
LOS ANGLES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
20180327MDM_ARIZONA_AVENUE_RELIEF_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
02 1619
Downstream MH
02 1620
Dir. of Survey
Upstream
Length Surveyed
376.8 ft.
Total Length
376.8 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 02 1619 to 02 1620
MH: 02 1619MH: 02 1620upstream0 ft. AMH - Upstream Manhole, Survey Ends - 4:35AM0.4 ft. MGO - General Observation - MAG COAT 100% FINISH0.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN55 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H61.8 ft. MGO - General Observation - 100% MAG COAT67.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H195 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE328.1 ft. MGO - General Observation - SMOOTH CONCRETE UNDER MAG COAT370.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT374.8 ft. MGO - General Observation - POSSIBLE MAG COAT 100% START376.8 ft. MWM - Water Mark, 5 %of cross sectional area376.8 ft. AMH - Downstream Manhole, Survey Begins - 4:10AM376.8 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE

Observation photos (3)

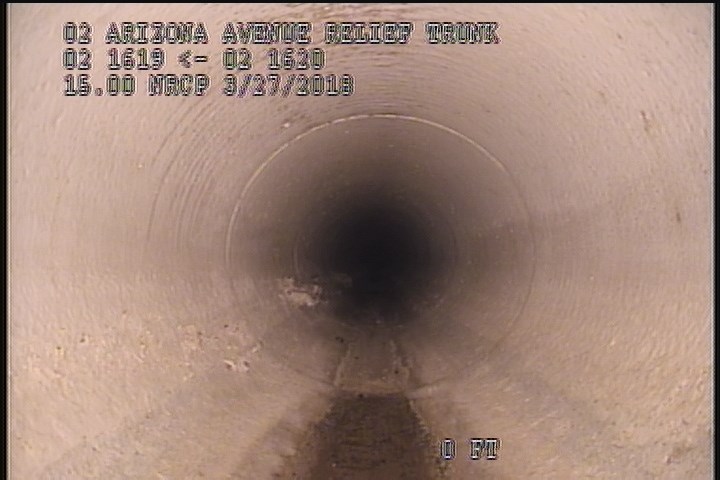

  • General Observation - POSSIBLE MAG COAT 100% START

    2 ft. - General Observation - POSSIBLE MAG COAT 100% START

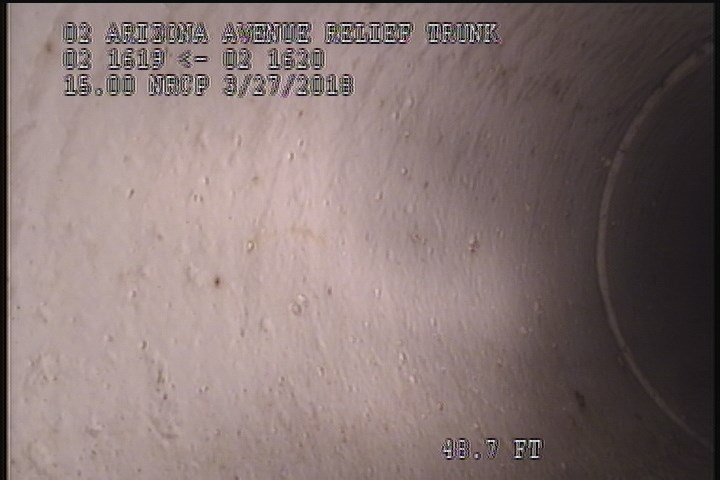

  • General Observation - SMOOTH CONCRETE UNDER MAG COAT

    48.7 ft. - General Observation - SMOOTH CONCRETE UNDER MAG COAT

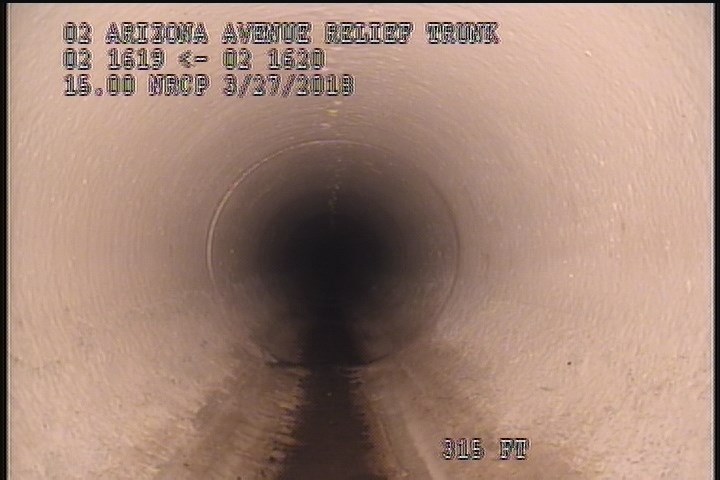

  • General Observation - 100% MAG COAT

    315 ft. - General Observation - 100% MAG COAT

All inspections of P04058Work order #

Observations (13)

DistanceCodeObservation
321.8FCH
0MWM—
2MGOPOSSIBLE MAG COAT 100% START
0AMH4:10AM
181.8FLHAIRLINE
48.7MGOSMOOTH CONCRETE UNDER MAG COAT
376.4MGOMAG COAT 100% FINISH
309.7FCH
6FCSLIGHT
0MWLDRY LINE
376.4MGOConn. @ Mh, 9 O' Clock. OPEN
376.8AMH4:35AM
315MGO100% MAG COAT

Properties (4)

custom_field_three
100% MAG COAT-GOOD COND CONCRETE UNDER MAG
custom_field_two
4
customer
LACSD
datetime
2018-03-27T03:11:46-07:00
