  • 05 0700_05 0699 _07032018_233951.mp4

Date
03/07/2018
W/O
690701
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00523
PipeID
P05932
Time
10:26 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5476
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #2
City
INGLEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Routine Assessment
Project
WO_690701_TV05208_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0700
Downstream MH
05 0699
Dir. of Survey
Downstream
Length Surveyed
265.1 ft.
Total Length
265.1 ft.
Structural Index
3
Structural Quick
413I
Structural Rating
160
O&M Index
2
O&M Quick
2J00
O&M Rating
106
Overall Index
3
Overall Quick
—
Overall Rating
266
Pipe schematic from manhole 05 0700 to 05 0699
MH: 05 0700MH: 05 0699downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 07002 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start25.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish25.9 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 04 o'clock, , within 8 inches of joint: YES, Start52.7 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"101.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"103.5 ft. H - Hole, from 10 to 11 o'clock, within 8 inches of joint: YES - HOLE WITH SOIL105.1 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"153.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"204.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"253.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"265.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 04 o'clock, , within 8 inches of joint: YES, Finish265.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish265.1 ft. AMH - Downstream Manhole, Survey Ends - 05 0699

Observation photos (4)

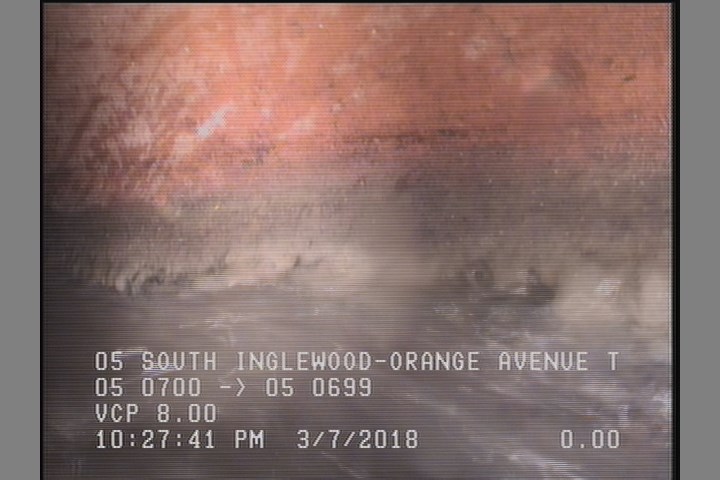

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

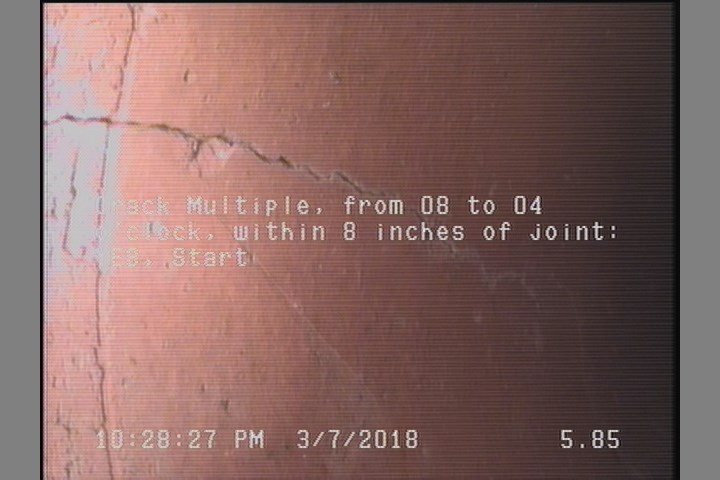

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

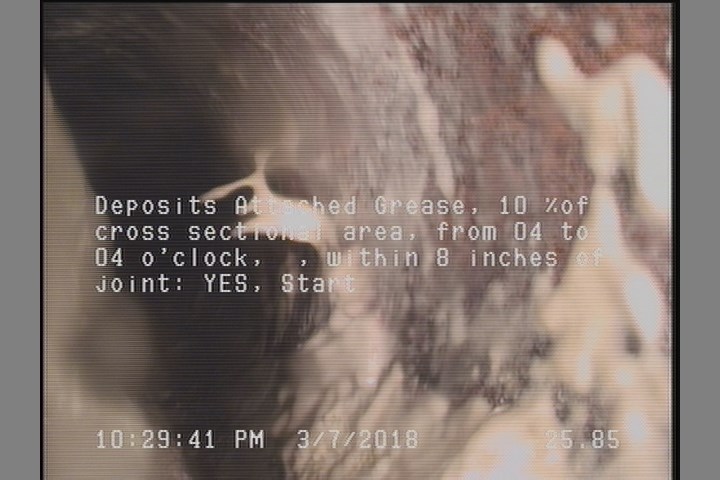

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 04 o'clock, , within 8 inches of joint: YES, Start

    25.9 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 04 o'clock, , within 8 inches of joint: YES, Start

  • Hole, from 10 to 11 o'clock, within 8 inches of joint: YES - HOLE WITH SOIL

    103.5 ft. - Hole, from 10 to 11 o'clock, within 8 inches of joint: YES - HOLE WITH SOIL

All inspections of P05932Work order 690701

Observations (17)

DistanceCodeObservation
105.1TBA—
25.8DAGS—
253.3TFC—
265.1DAGS—
153.3TFC—
101.5TFC—
2DAGS—
0MWM—
204.1TFC—
25.9DAGS—
5.8CM—
0MWL—
265.1CM—
103.5HHOLE WITH SOIL
52.7TFA—
265.1AMH05 0699
0AMH05 0700

Properties (4)

additional_info
SC358482
custom_field_two
1
customer
LACSD
datetime
2018-03-07T22:26:15-08:00
