Wastewater/Activity/PacpInspection/1.0Mar 7, 2018, 10:52 AM
18 0374_18 0373 _07032018_040155.mp4
- Date
- 03/07/2018
- W/O
- 690408
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00690
- PipeID
- P14208
- Time
- 2:52 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5475
- Sewer Name
- 18 NORTH NORWALK TRUNK
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_690408_TV18095_MAR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0374
- Downstream MH
- 18 0373
- Dir. of Survey
- Downstream
- Length Surveyed
- 324.8 ft.
- Total Length
- 324.8 ft.
- Structural Index
- 3
- Structural Quick
- 3L21
- Structural Rating
- 194
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 196
Observation photos (2)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

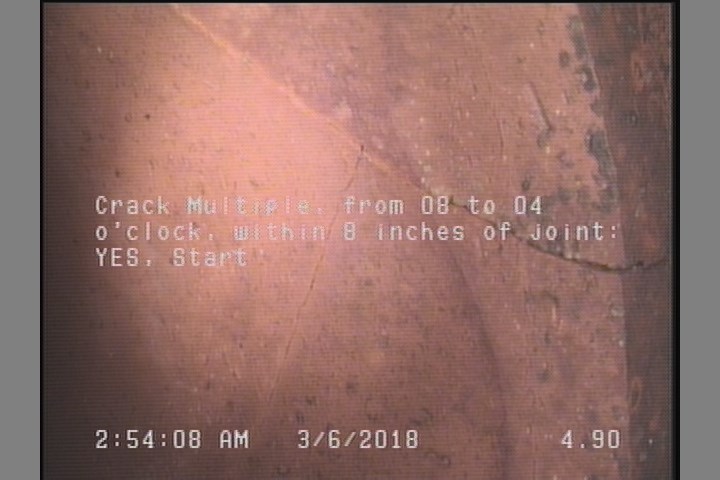

4.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 317.6 | TFA | — |
| 324.8 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 324.8 | AMH | 18 0373 |
| 207.7 | TFC | — |
| 93.8 | TFA | — |
| 0 | AMH | 18 0374 |
| 0 | MWL | — |
| 0 | MWM | — |
| 4.9 | CM | — |
| 323.9 | DAGS | — |
| 323.9 | CM | — |
| 2 | DAGS | — |
| 4.9 | FC | — |
Properties (4)
- additional_info
- SC358481
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-03-07T02:52:11-08:00
