Wastewater/Activity/PacpInspection/1.0Jan 31, 2018, 11:03 AM
02 2231_02 2230_31012018_042124.mp4
- Date
- 01/31/2018
- W/O
- 684901
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00253
- PipeID
- P04505
- Time
- 3:03 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5394
- Sewer Name
- 02 DOWNEY-BELLFLOWER DIVERSION RELIEF TRUNK
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_684901_TV02051_FEB2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 2231
- Downstream MH
- 02 2230
- Dir. of Survey
- Downstream
- Length Surveyed
- 599.1 ft.
- Total Length
- 599.1 ft.
- Structural Index
- 2
- Structural Quick
- 2A00
- Structural Rating
- 22
- O&M Index
- 3
- O&M Quick
- 3700
- O&M Rating
- 21
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 43
Observation photos (3)

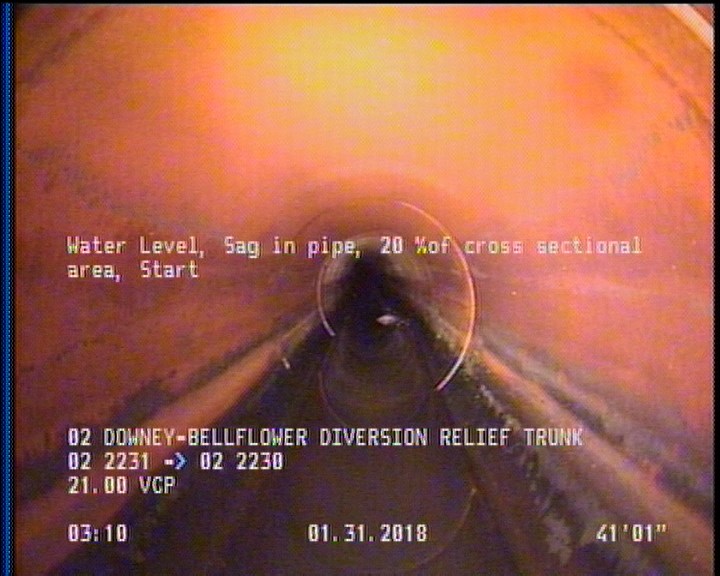

41.1 ft. - Water Level, Sag in pipe, 20 %of cross sectional area, Start

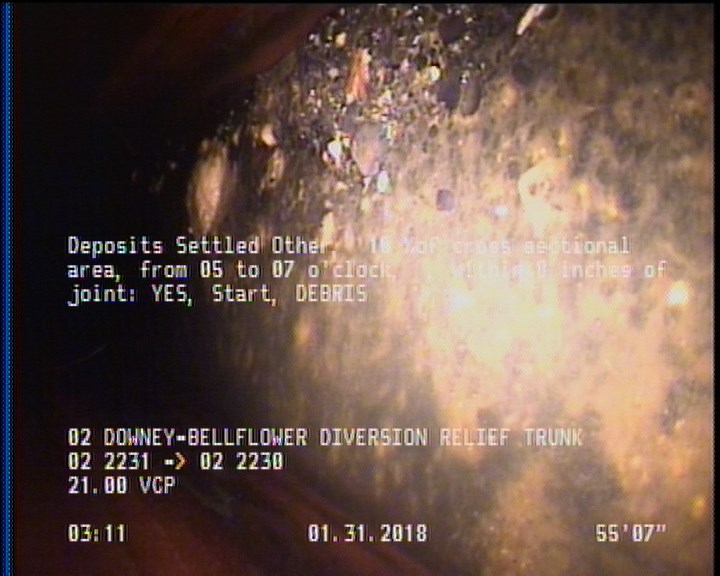

55.6 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

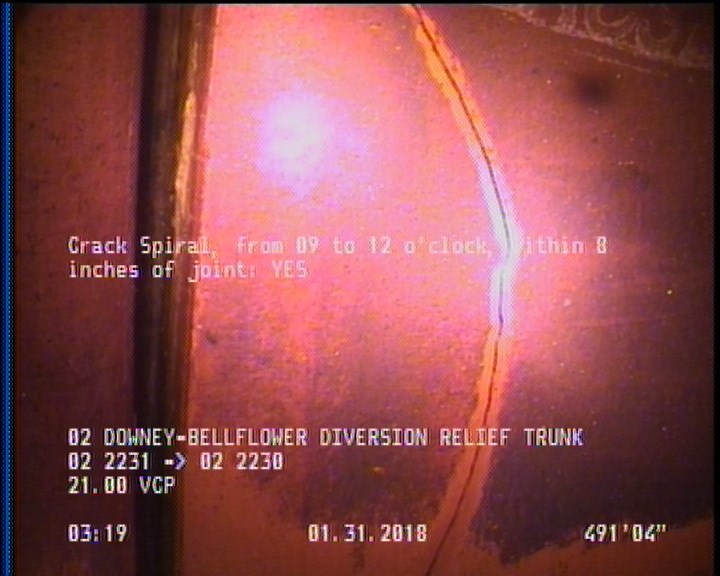

491.4 ft. - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 91.8 | MWLS | — |
| 491.4 | CS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 41.1 | MWLS | — |
| 0 | AMH | 02 2231 |
| 599.1 | AMH | 02 2230 |
| 55.6 | DSZ | DEBRIS |
| 91.8 | DSZ | — |
Properties (5)
- additional_info
- SC346973
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-31T03:03:32-08:00
- year_laid
- 31440
