Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 1, 2018, 06:27 AM

  • 02 2235_02 2234_31012018_233648.mp4

Date
01/31/2018
W/O
684901
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00253
PipeID
P04509
Time
10:27 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5395
Sewer Name
02 DOWNEY-BELLFLOWER DIVERSION RELIEF TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
25
Purpose
Routine Assessment
Project
WO_684901_TV02051_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
02 2235
Downstream MH
02 2234
Dir. of Survey
Downstream
Length Surveyed
349.8 ft.
Total Length
349.8 ft.
Structural Index
3
Structural Quick
3C00
Structural Rating
63
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
63
Pipe schematic from manhole 02 2235 to 02 2234
MH: 02 2235MH: 02 2234downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 22350 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE238.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES247.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start349.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE349.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish349.8 ft. AMH - Downstream Manhole, Survey Ends - 02 2234

Observation photos (2)

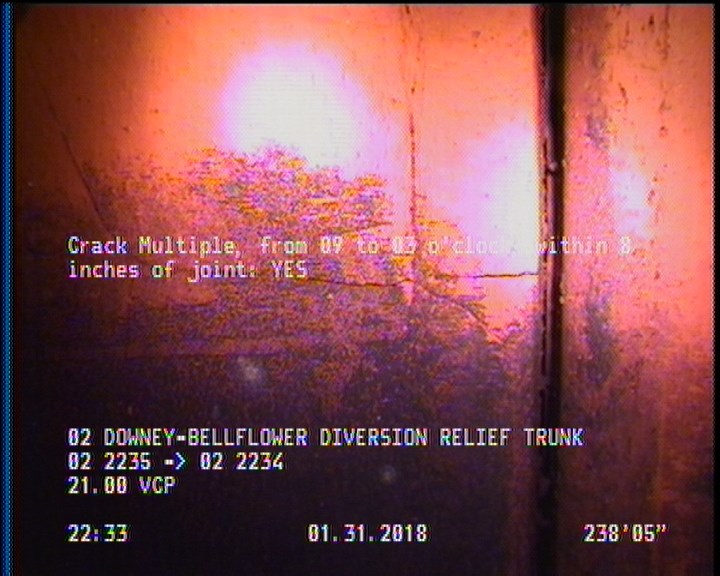

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    238.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

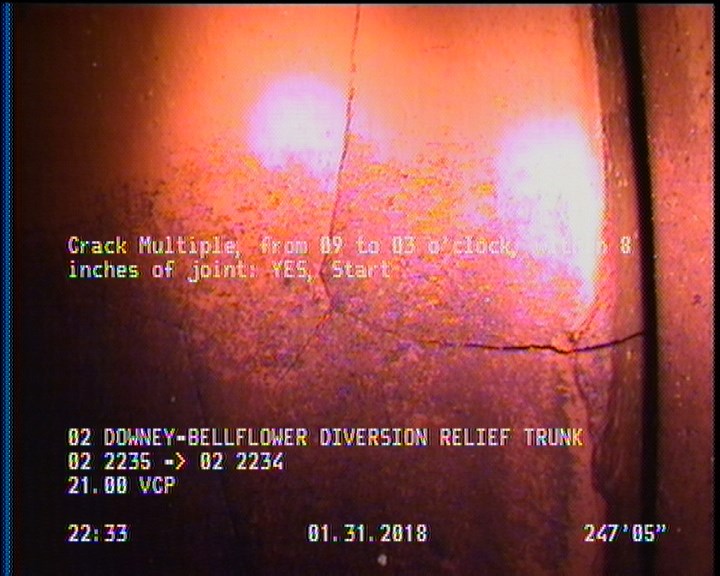

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    247.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P04509Work order 684901

Observations (9)

DistanceCodeObservation
0AMH02 2235
349.8MGOCOCKROACHES IN MANHOLE
349.8CM—
247.4CM—
0MWL—
0MWM—
238.4CM—
349.8AMH02 2234
0MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC346974
custom_field_two
4
customer
LACSD
datetime
2018-01-31T22:27:26-08:00
year_laid
31440
