Wastewater/Activity/PacpInspection/1.0Feb 6, 2018, 11:36 AM
02 2206A_02 2206_06022018_044740.mp4
- Date
- 02/06/2018
- W/O
- 684901
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00253
- PipeID
- P04481
- Time
- 3:36 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5400
- Sewer Name
- 02 DOWNEY-BELLFLOWER DIVERSION RELIEF TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_684901_TV02051_FEB2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 2206
- Downstream MH
- 02 2206A
- Dir. of Survey
- Upstream
- Length Surveyed
- 327.1 ft.
- Total Length
- 327.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 124
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 124
Observation photos (1)

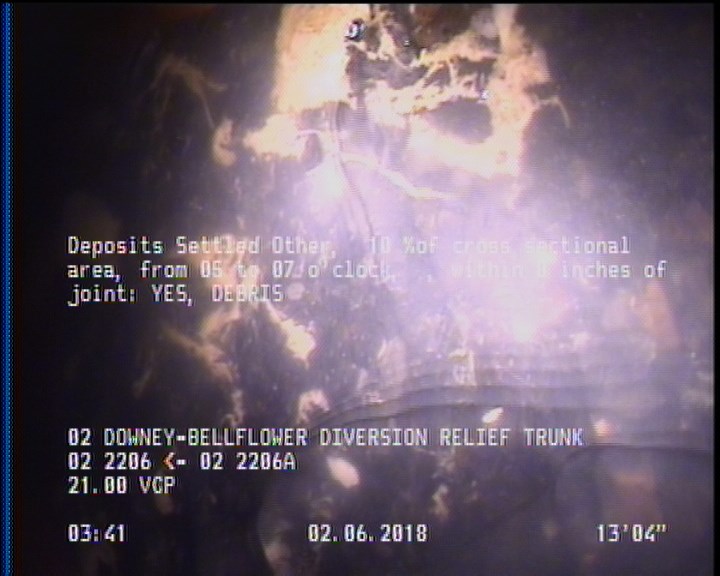

13.3 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 324.8 | DSZ | — |
| 0 | AMH | 02 2206 |
| 0 | MWM | — |
| 13.3 | DSZ | DEBRIS |
| 327.1 | AMH | 02 2206A |
Properties (5)
- additional_info
- SC346979
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-02-06T03:36:41-08:00
- year_laid
- 31440
