Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 22, 2018, 07:29 AM

  • 03 0250_03 0249_3222018_004259.mp4

Date
03/22/2018
W/O
0696856
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00385
PipeID
P04852
Time
12:29 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0786
Sewer Name
03 MARKET STREET TRUNK
City
LAKEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
07
Purpose
Routine Assessment
Project
20180322MDM_MARKET_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
25.899999618530273 in.
Upstream MH
03 0250
Downstream MH
03 0249
Dir. of Survey
Downstream
Length Surveyed
229.8 ft.
Total Length
229.8 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
3124
O&M Rating
11
Overall Index
2
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 03 0250 to 03 0249
MH: 03 0250MH: 03 0249downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM0 ft. MWM - Water Mark, 20 %of cross sectional area8 ft. MGO - General Observation - 25.90" VCP-CIPP28.3 ft. DAGS - Deposits Attached Grease, 3 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO36.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active50.3 ft. DAGS - Deposits Attached Grease, 3 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: NO, Start65.5 ft. DAGS - Deposits Attached Grease, 3 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: NO, Finish76.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active100 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: YES, Start118.8 ft. MWM - Water Mark, 40 %of cross sectional area118.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active118.8 ft. MWL - Water Level, 20 %of cross sectional area118.8 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: YES, Finish121.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - SLUDGE135.2 ft. MWL - Water Level, 40 %of cross sectional area143.1 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - SLUDGE143.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish - SLUDGE143.4 ft. MWLS - Water Level, Sag in pipe, 30 %of cross sectional area, Start158.7 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active163.4 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish - SLUDGE163.4 ft. MWM - Water Mark, 30 %of cross sectional area163.4 ft. MWL - Water Level, 10 %of cross sectional area163.4 ft. MWLS - Water Level, Sag in pipe, 30 %of cross sectional area, Finish199.4 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active229.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active229.8 ft. AMH - Downstream Manhole, Survey Ends - 1:05AM

Observation photos (3)

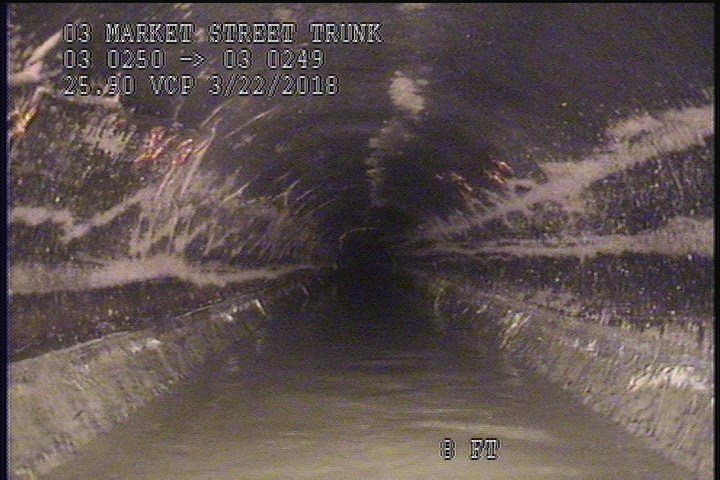

  • General Observation - 25.90" VCP-CIPP

    8 ft. - General Observation - 25.90" VCP-CIPP

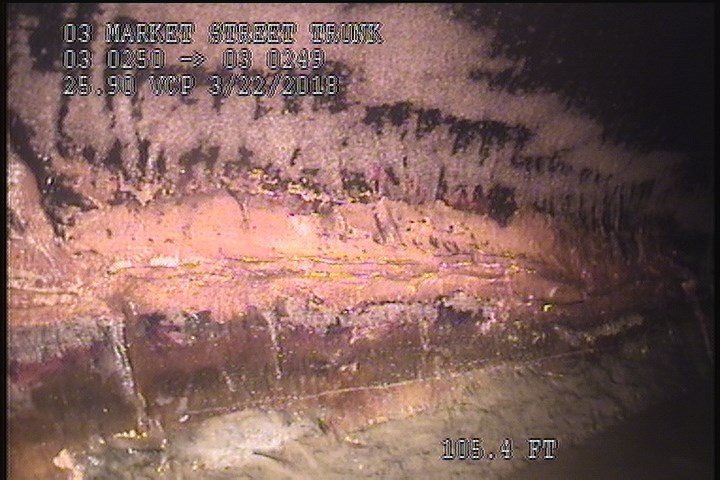

  • Deposits Attached Grease, 2 %of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: YES, Start

    100 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: YES, Start

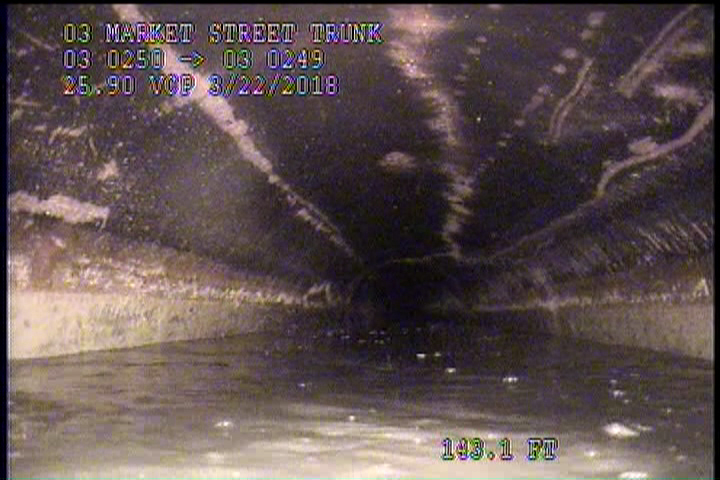

  • Water Level, Sag in pipe, 30 %of cross sectional area, Start

    143.4 ft. - Water Level, Sag in pipe, 30 %of cross sectional area, Start

All inspections of P04852Work order 0696856

Observations (27)

DistanceCodeObservation
8MGO25.90" VCP-CIPP
118.8MWM—
229.8AMH1:05AM
163.4DSZSLUDGE
0MWL—
118.8TBActive
118.8MWL—
76.8TBActive
135.2MWL—
163.4MWM—
28.3DAGS—
229.2MGOConn. @ Mh, 3 O' Clock. Active
100DAGS—
143.1DSZSLUDGE
0AMH12:35AM
118.8DAGS—
163.4MWL—
199.4TBActive
163.4MWLS—
65.5DAGS—
36.8TBActive
158.7TBActive
0MWM—
143.1DSZSLUDGE
50.3DAGS—
143.4MWLS—
121.2DSZSLUDGE

Properties (5)

custom_field_three
CIPP LINER GOOD COND. --30% SAG IN LINE
custom_field_two
4
customer
LACSD
datetime
2018-03-22T00:29:35-07:00
lining
CIPP
