Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2018, 11:17 AM

  • 02 1888_02 1887_3212018_053005.mp4

Date
03/21/2018
W/O
0695520
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01172
PipeID
P04252
Time
4:17 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0784
Sewer Name
02 DOUGLAS AVENUE RELOCATION TRUNK
City
LOS ANGLES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Maintenance Related
Project
20180321MDM_DOUGLAS_AVENUE_RELOCATION_TRUNK
Material
NRCP
Shape
Circular
Height
8 in.
Upstream MH
02 1887
Downstream MH
02 1888
Dir. of Survey
Upstream
Length Surveyed
72.8 ft.
Total Length
72.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 1887 to 02 1888
MH: 02 1887MH: 02 1888upstream0 ft. MSA - Survey Abandoned - COULD NOT PASS LINK PIPE(5:50AM)0.2 ft. MGO - General Observation - LINK PIPR APPEARS OUT OF ROUND0.2 ft. MGO - General Observation - POSSINLE BENT TAB AT 6:000.4 ft. MGO - General Observation - UPSTREAM TABS0.9 ft. MGO - General Observation - DOWNSTREAM TABS IN PLACE0.9 ft. MGO - General Observation - DOWNSTREAM TABS IN PLACE3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open19.8 ft. MGO - General Observation - POSSIBLE SLIGHT BENT TABS UPSTREAM19.8 ft. MGO - General Observation - POSSIBLE SLIGHT BENT TABS UPSTREAM21.5 ft. MGO - General Observation - DOWNSTREAM TABS IN PLACE35.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open45 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open72.8 ft. MGO - General Observation - START MH 1886- 1 LANE STREET72.8 ft. MWM - Water Mark, 20 %of cross sectional area72.8 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM72.8 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (8)

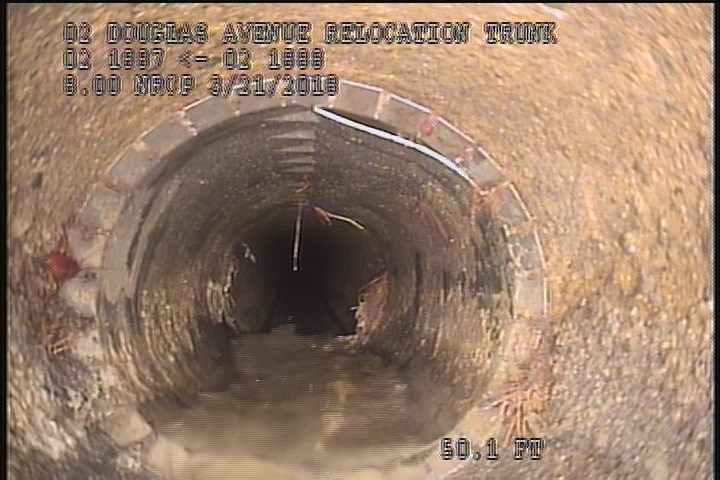

  • General Observation - DOWNSTREAM TABS IN PLACE

    51.3 ft. - General Observation - DOWNSTREAM TABS IN PLACE

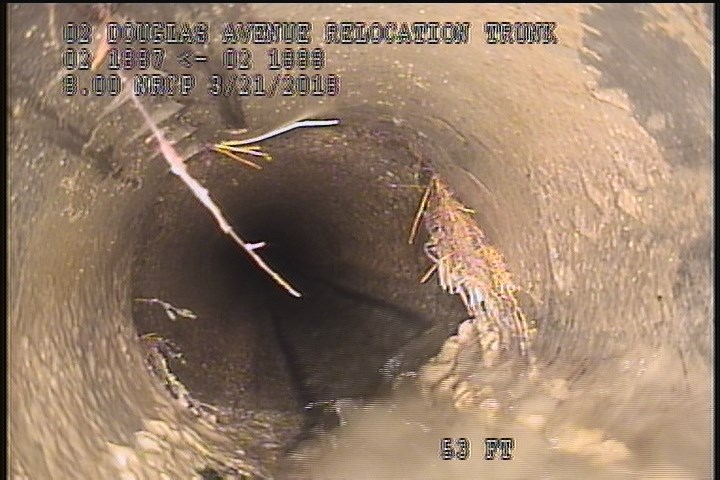

  • General Observation - POSSIBLE SLIGHT BENT TABS UPSTREAM

    53 ft. - General Observation - POSSIBLE SLIGHT BENT TABS UPSTREAM

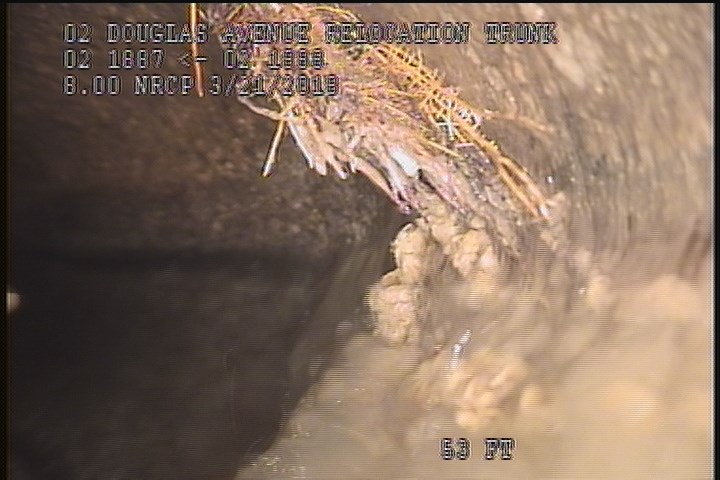

  • General Observation - POSSIBLE SLIGHT BENT TABS UPSTREAM

    53 ft. - General Observation - POSSIBLE SLIGHT BENT TABS UPSTREAM

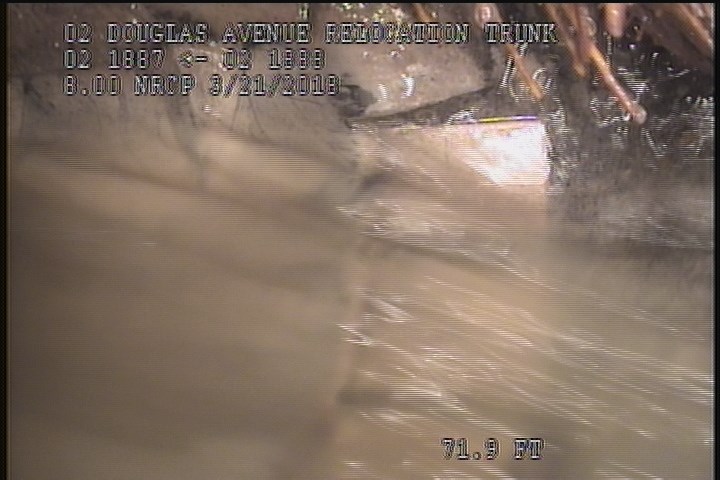

  • General Observation - DOWNSTREAM TABS IN PLACE

    71.9 ft. - General Observation - DOWNSTREAM TABS IN PLACE

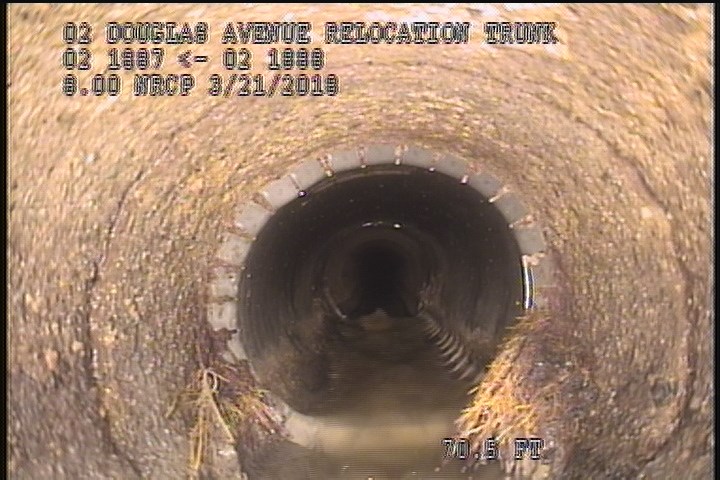

  • General Observation - DOWNSTREAM TABS IN PLACE

    71.9 ft. - General Observation - DOWNSTREAM TABS IN PLACE

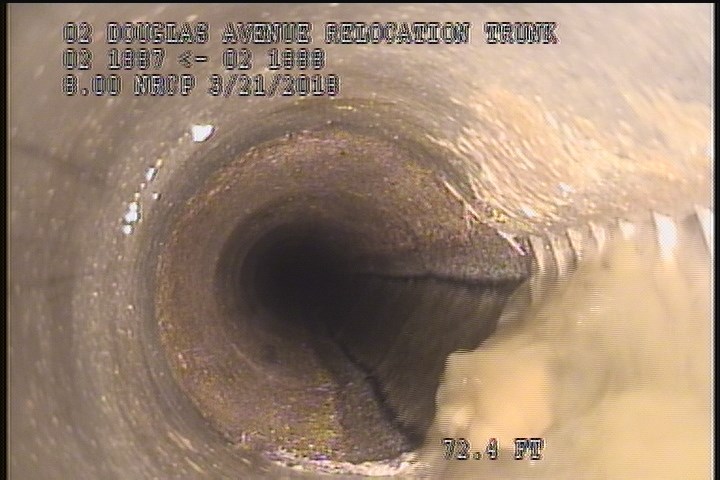

  • General Observation - UPSTREAM TABS

    72.4 ft. - General Observation - UPSTREAM TABS

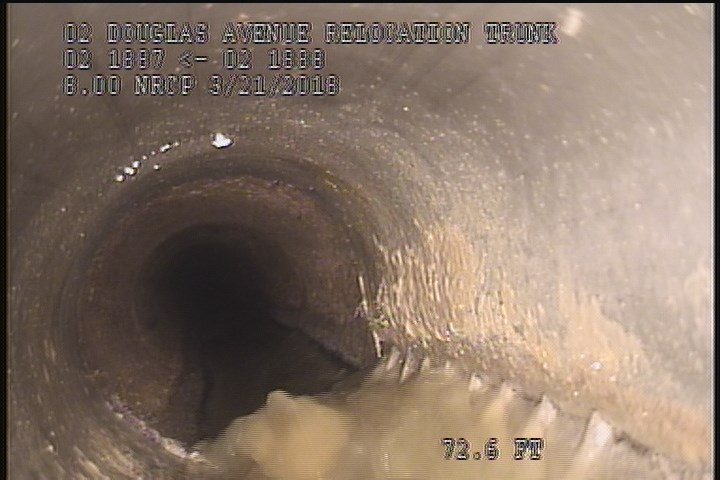

  • General Observation - LINK PIPR APPEARS OUT OF ROUND

    72.6 ft. - General Observation - LINK PIPR APPEARS OUT OF ROUND

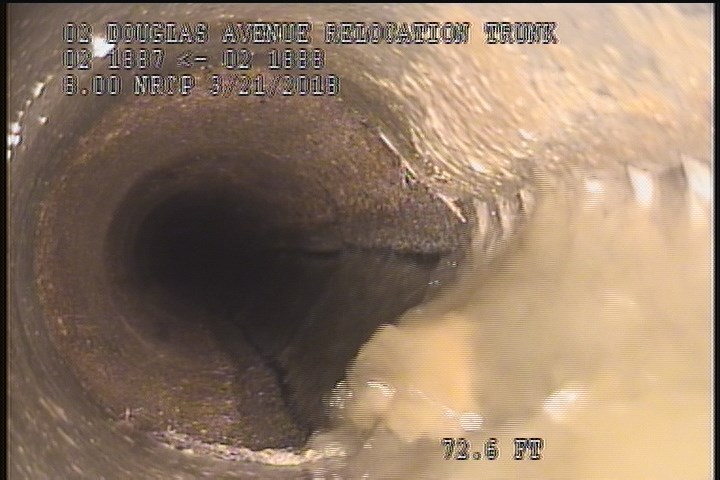

  • General Observation - POSSINLE BENT TAB AT 6:00

    72.6 ft. - General Observation - POSSINLE BENT TAB AT 6:00

All inspections of P04252Work order 0695520

Observations (16)

DistanceCodeObservation
37.2TFOpen
72.8MSACOULD NOT PASS LINK PIPE(5:50AM)
69.8TFOpen
72.6MGOLINK PIPR APPEARS OUT OF ROUND
72.4MGOUPSTREAM TABS
0MGOSTART MH 1886- 1 LANE STREET
0MWM—
71.9MGODOWNSTREAM TABS IN PLACE
0AMH5:10AM
0MWL—
27.8TFOpen
53MGOPOSSIBLE SLIGHT BENT TABS UPSTREAM
51.3MGODOWNSTREAM TABS IN PLACE
53MGOPOSSIBLE SLIGHT BENT TABS UPSTREAM
72.6MGOPOSSINLE BENT TAB AT 6:00
71.9MGODOWNSTREAM TABS IN PLACE

Properties (3)

additional_info
REVERSE INSPECTION--LINK PIPE INSPECTION
customer
LACSD
datetime
2018-03-21T04:17:03-07:00
