Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2018, 07:44 PM

  • A 0934_A 0933_3212018_130348.mp4

Date
03/21/2018
W/O
PENDING
Weather
Heavy Rain
Operator/Surveyor
FRANKLIN
Sewer ID
Z00323
PipeID
P20501
Time
12:44 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7663
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
SOUTH GATE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
20180321DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
A 0934
Downstream MH
A 0933
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
5
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole A 0934 to A 0933
MH: A 0934MH: A 0933downstream0 ft. MWL - Water Level, 100 %of cross sectional area0 ft. MWM - Water Mark, 100 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:46 PM2 ft. LD - Alignment Down, 45 %2.1 ft. MSA - Survey Abandoned - HIGH WATER

Observation photos (3)

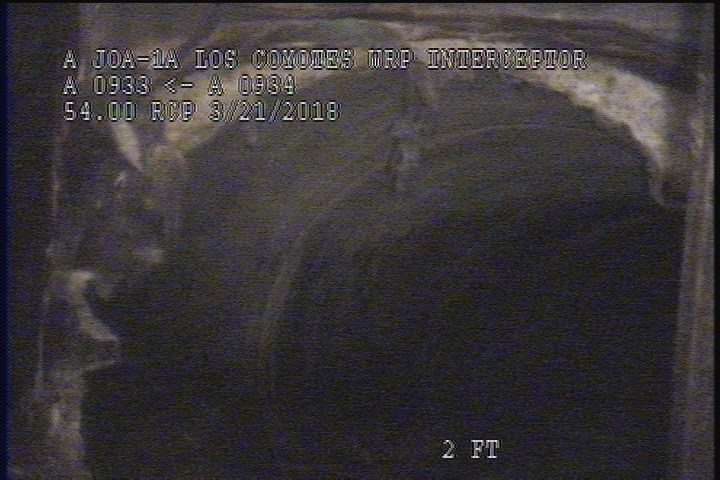

  • Upstream Manhole, Survey Begins - 12:46 PM

    0 ft. - Upstream Manhole, Survey Begins - 12:46 PM

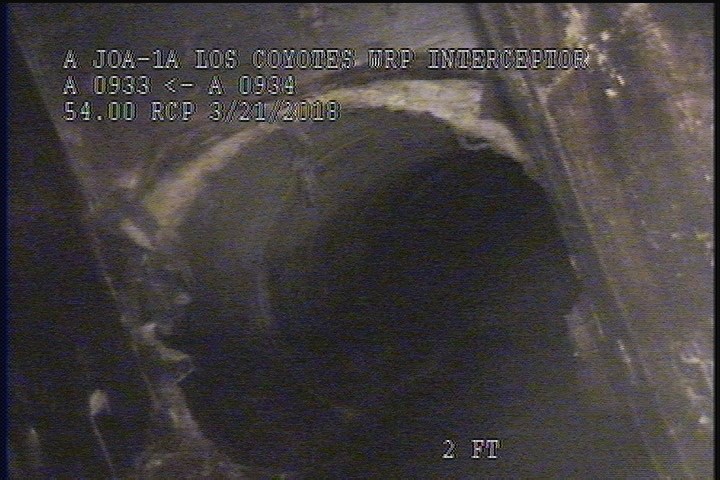

  • Alignment Down, 45 %

    2 ft. - Alignment Down, 45 %

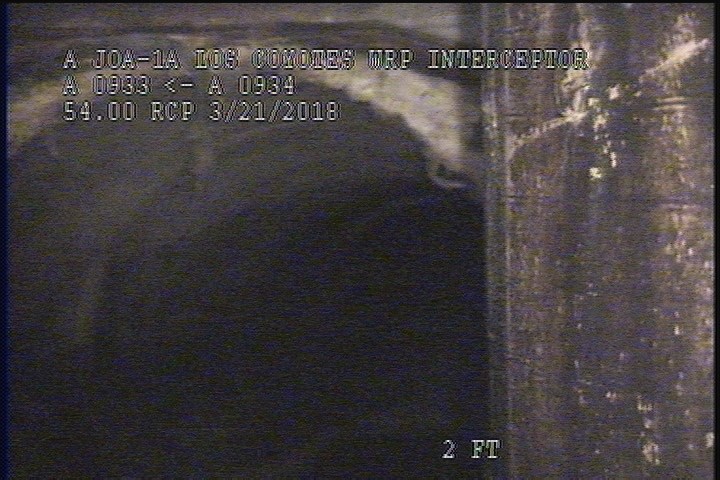

  • Survey Abandoned - HIGH WATER

    2.1 ft. - Survey Abandoned - HIGH WATER

All inspections of P20501Work order PENDING

Observations (5)

DistanceCodeObservation
2.1MSAHIGH WATER
0MWL—
0MWM—
2LD—
0AMH12:46 PM

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2018-03-21T12:44:24-07:00
