Wastewater/Activity/PacpInspection/1.0Mar 20, 2018, 08:14 PM
21 0919_21 0918_3202018_131637.mp4
- Date
- 03/20/2018
- W/O
- 0696468
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00760
- PipeID
- P16007
- Time
- 1:14 PM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7661
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20180320MI_CLAREMONT_OUTFALL_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0919
- Downstream MH
- 21 0918
- Dir. of Survey
- Downstream
- Length Surveyed
- 563.9 ft.
- Total Length
- 563.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

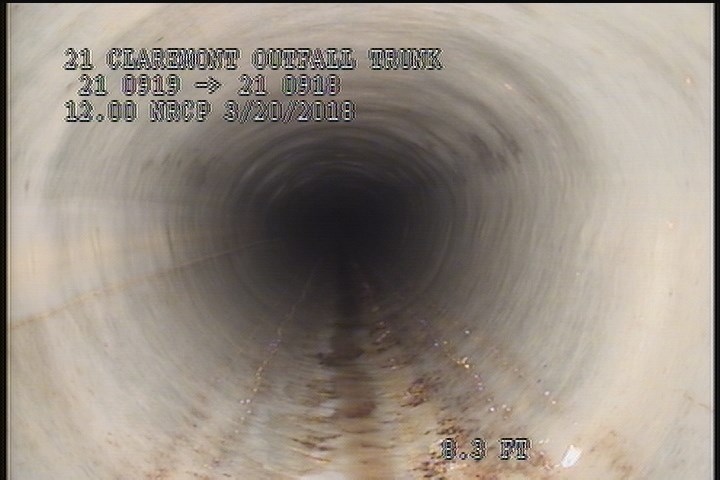

8.3 ft. - General Observation - CIPP LINER

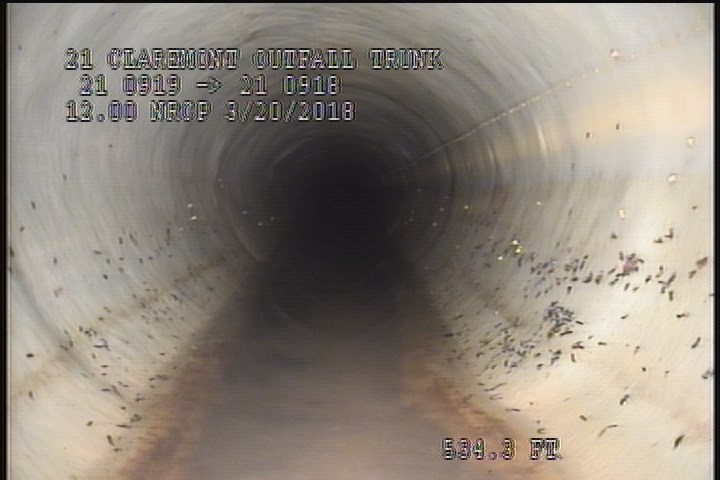

534.3 ft. - Water Level, 10 %of cross sectional area

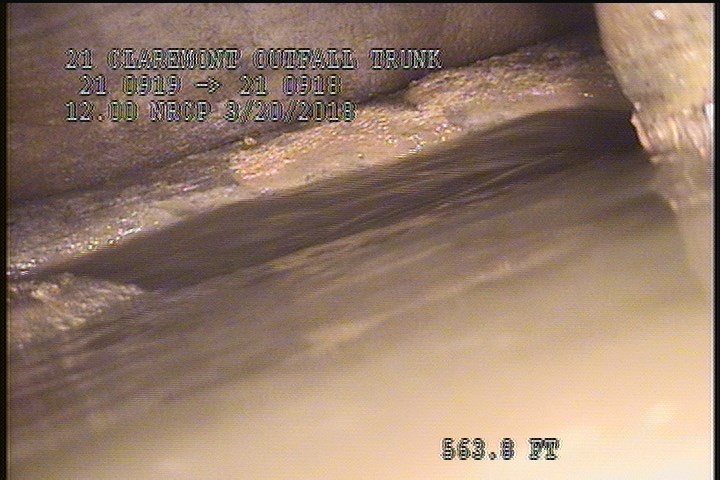

563.9 ft. - Downstream Manhole, Survey Ends - 01:32 PM
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 534.3 | MWL | — |
| 0 | MWL | DRY LINE |
| 8.3 | MGO | CIPP LINER |
| 0 | AMH | 01:15 PM |
| 563.9 | AMH | 01:32 PM |
| 0 | MGO | CIPP LINER |
Properties (4)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-03-20T13:14:22-07:00
- lining
- CIPP
