Wastewater/Activity/PacpInspection/1.0Mar 20, 2018, 07:54 PM
21 0920_21 0919_3202018_125836.mp4
- Date
- 03/20/2018
- W/O
- 0696468
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00760
- PipeID
- P16008
- Time
- 12:54 PM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7661
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20180320MI_CLAREMONT_OUTFALL_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0920
- Downstream MH
- 21 0919
- Dir. of Survey
- Downstream
- Length Surveyed
- 554.5 ft.
- Total Length
- 554.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)

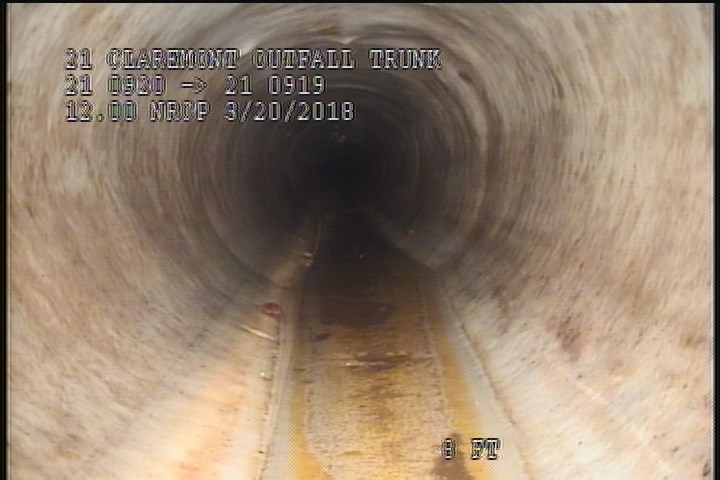

8 ft. - General Observation - CIPP LINER

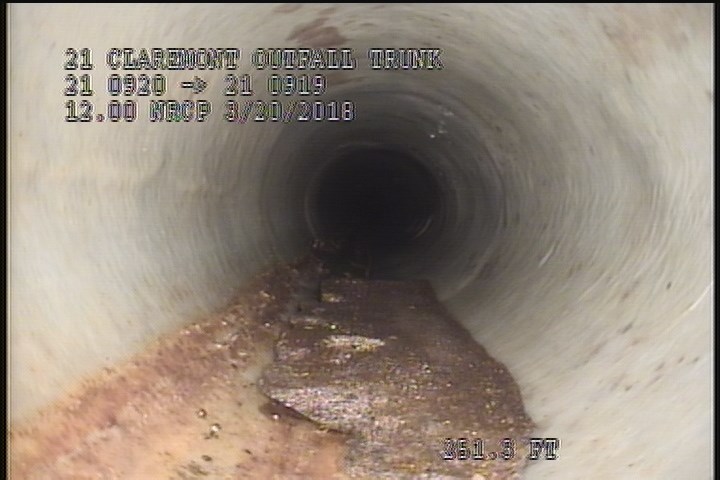

251.3 ft. - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

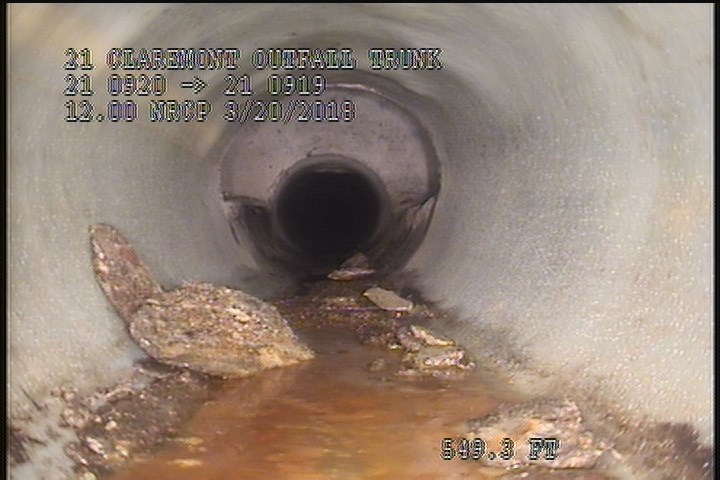

549.3 ft. - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

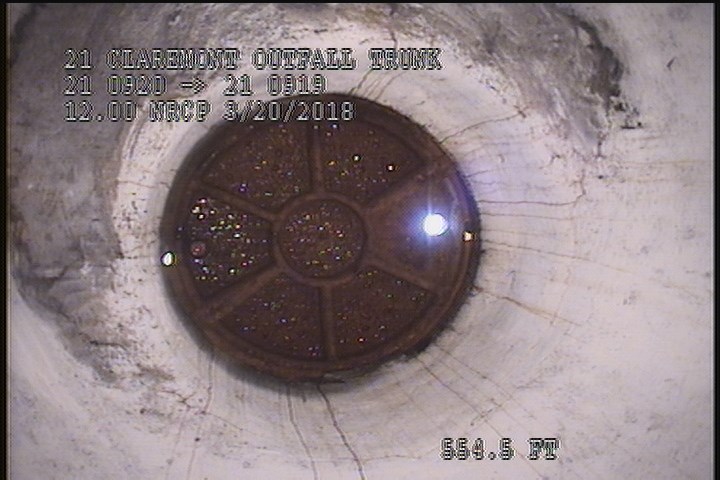

554.5 ft. - Downstream Manhole, Survey Ends - 01:13 PM
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 01:00 PM |
| 0 | MWM | — |
| 251.3 | DSC | — |
| 549.3 | DSC | — |
| 0 | MWL | DRY LINE |
| 554.5 | AMH | 01:13 PM |
| 8 | MGO | CIPP LINER |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-03-20T12:54:44-07:00
