Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2018, 10:40 AM

  • 02 1986_02 1121_3212018_034141.mp4

Date
03/21/2018
W/O
0695519
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00351
PipeID
P02901
Time
3:40 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0783
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
14
Purpose
Maintenance Related
Project
20180320MDM_GARFIELD_AVENUE_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 1986
Downstream MH
02 1121
Dir. of Survey
Downstream
Length Surveyed
267.8 ft.
Total Length
267.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
5
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 02 1986 to 02 1121
MH: 02 1986MH: 02 1121downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:40AM0 ft. MWL - Water Level, 10 %of cross sectional area252.7 ft. MWL - Water Level, 30 %of cross sectional area255.4 ft. MWM - Water Mark, 80 %of cross sectional area255.5 ft. MGO - General Observation - POSSIBLE SLIGHTLY BENT TABS UNDER FLOW UPSTREAM257 ft. MGO - General Observation - TABS APPEAR NOT BENT DOWNSTREAM257.1 ft. MGO - General Observation - BENT TAB UNDER FLOW257.8 ft. MGO - General Observation - TOP TABS IN PLACE UPSTREAM257.8 ft. MGO - General Observation - DOWNSTREAM TABS IN PLACE267.8 ft. AMH - Downstream Manhole, Survey Ends - 4:10AM

Observation photos (5)

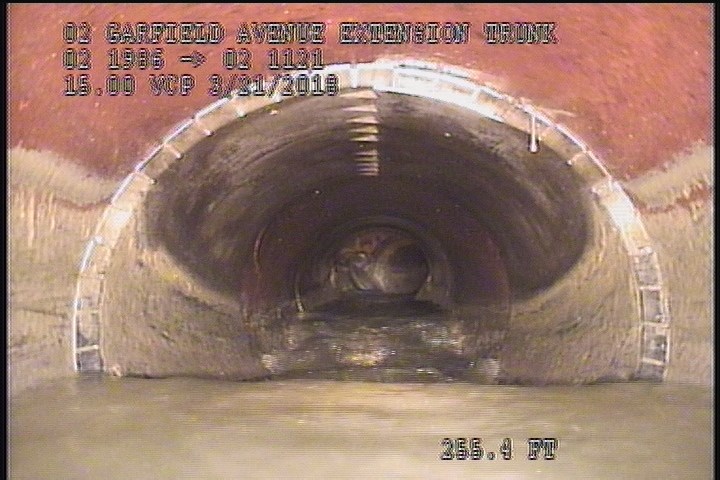

  • Water Mark, 80 %of cross sectional area

    255.4 ft. - Water Mark, 80 %of cross sectional area

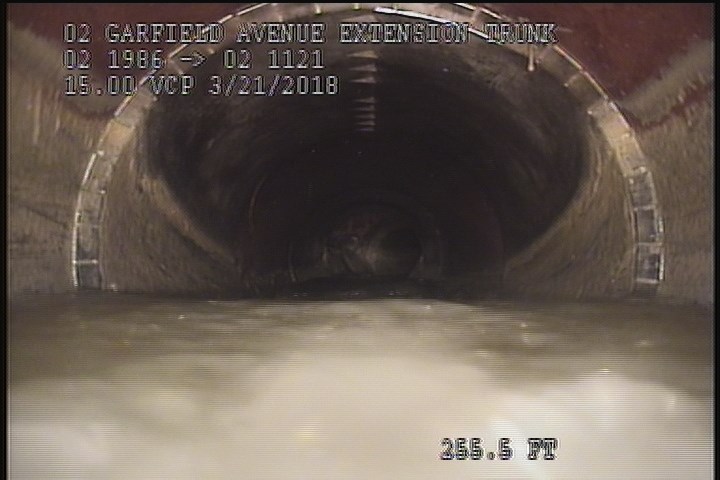

  • General Observation - POSSIBLE SLIGHTLY BENT TABS UNDER FLOW UPSTREAM

    255.5 ft. - General Observation - POSSIBLE SLIGHTLY BENT TABS UNDER FLOW UPSTREAM

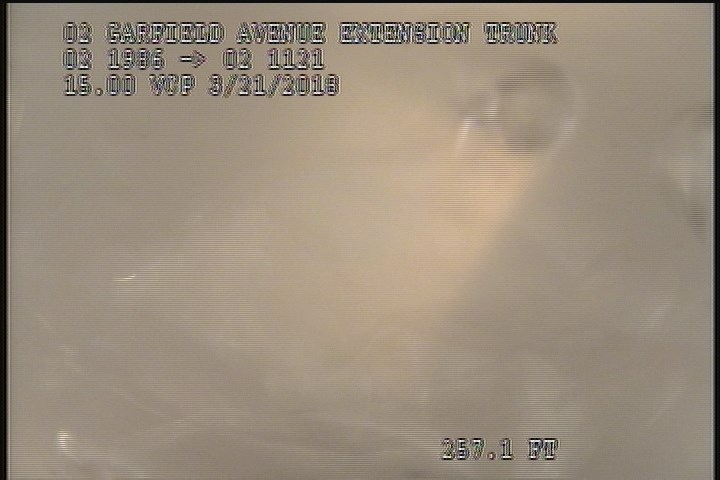

  • General Observation - BENT TAB UNDER FLOW

    257.1 ft. - General Observation - BENT TAB UNDER FLOW

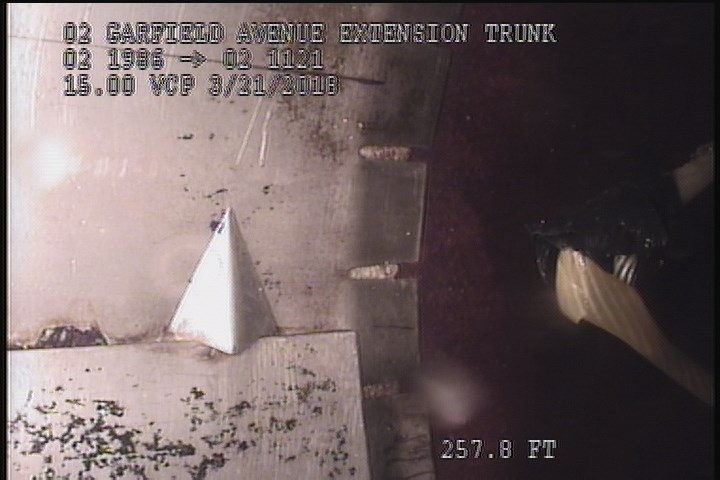

  • General Observation - TOP TABS IN PLACE UPSTREAM

    257.8 ft. - General Observation - TOP TABS IN PLACE UPSTREAM

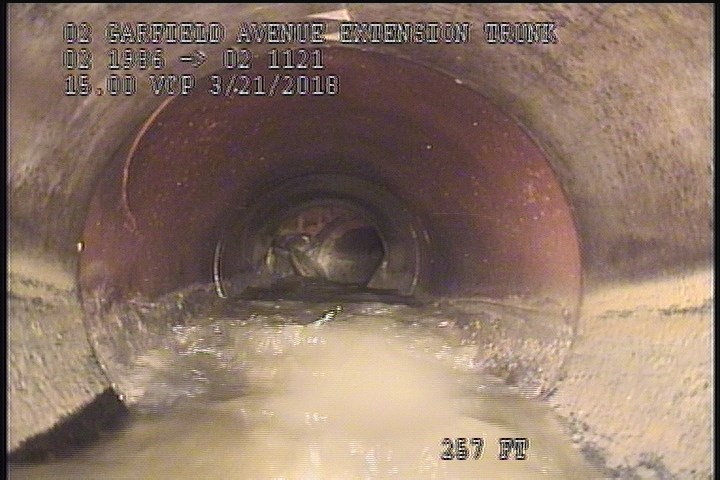

  • General Observation - DOWNSTREAM TABS IN PLACE

    257.8 ft. - General Observation - DOWNSTREAM TABS IN PLACE

All inspections of P02901Work order 0695519

Observations (11)

DistanceCodeObservation
255.4MWM—
252.7MWL—
257.8MGOTOP TABS IN PLACE UPSTREAM
0MWM—
257MGOTABS APPEAR NOT BENT DOWNSTREAM
257.1MGOBENT TAB UNDER FLOW
257.8MGODOWNSTREAM TABS IN PLACE
0AMH3:40AM
0MWL—
267.8AMH4:10AM
255.5MGOPOSSIBLE SLIGHTLY BENT TABS UNDER FLOW UPSTREAM

Properties (3)

additional_info
LINK PIPE INSPECTION
customer
LACSD
datetime
2018-03-21T03:40:32-07:00
