Wastewater/Activity/PacpInspection/1.0Mar 19, 2018, 05:23 PM
21 0923_21 0922_3192018_104108.mp4
- Date
- 03/19/2018
- W/O
- 0696468
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00760
- PipeID
- P16011
- Time
- 10:23 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7660
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20180319MI_CLAREMONT_OUTFALL_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0922
- Downstream MH
- 21 0923
- Dir. of Survey
- Upstream
- Length Surveyed
- 498.7 ft.
- Total Length
- 498.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

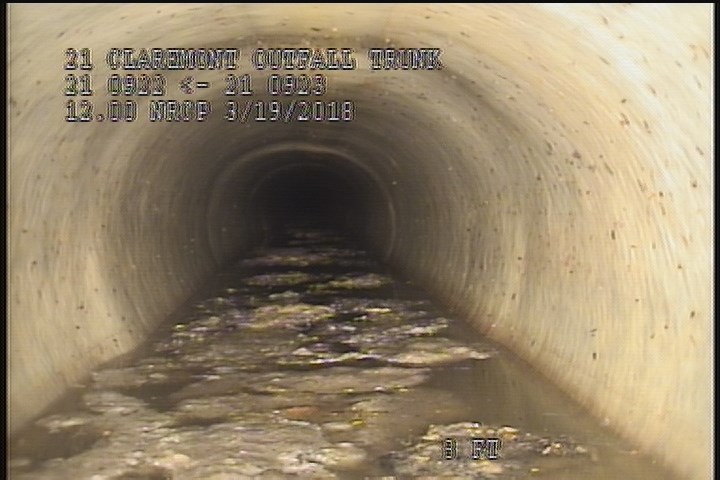

8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

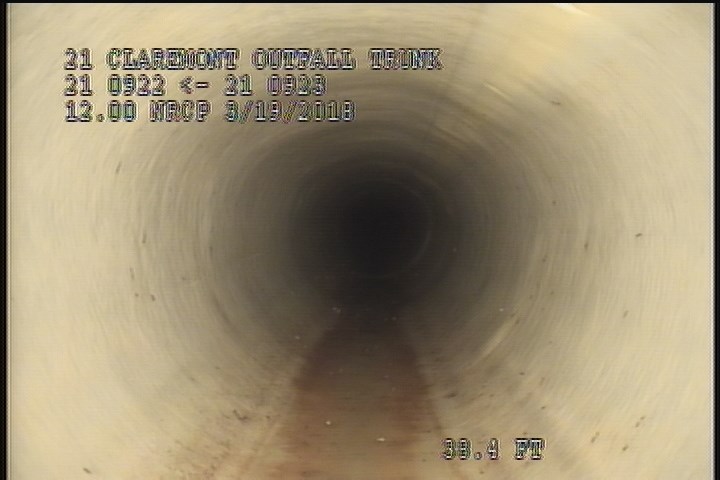

38.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish

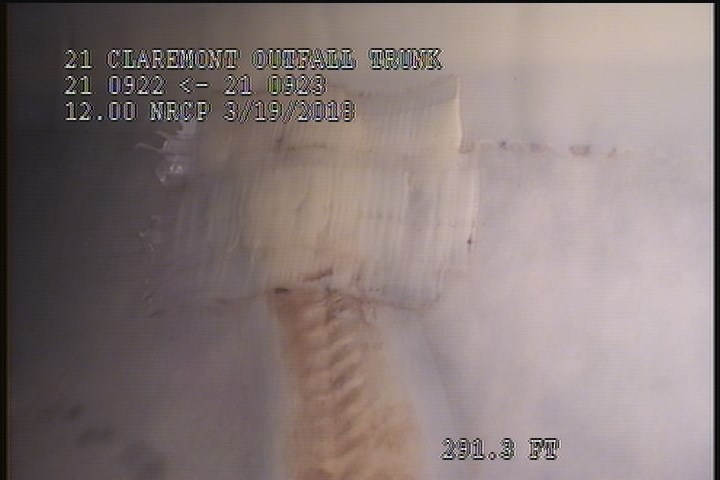

291.3 ft. - General Observation - POSSIBLE REPAIR/LINER PEELING

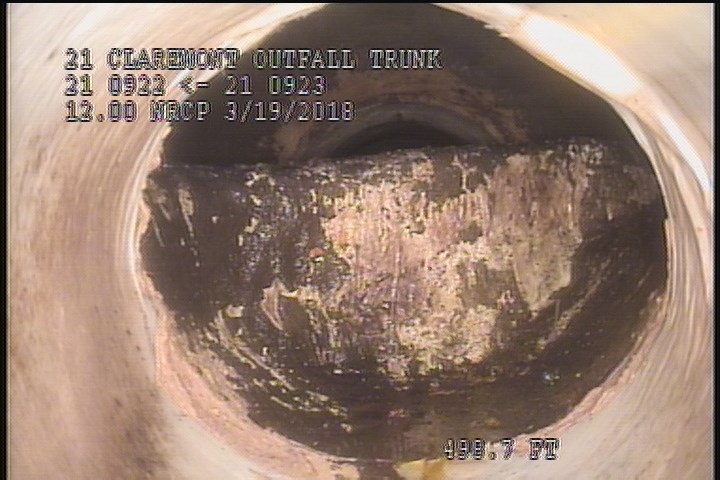

498.7 ft. - Upstream Manhole, Survey Ends - 11:05 AM, POSSIBLE STOP LOG/WEIR AT MH 923
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 10:45 AM |
| 498.7 | AMH | 11:05 AM, POSSIBLE STOP LOG/WEIR AT MH 923 |
| 291.3 | MGO | POSSIBLE REPAIR/LINER PEELING |
| 38.1 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 8 | DAGS | — |
| 38.1 | MWL | — |
| 0 | MGO | CONNECTION AT MH, 11 OCLOCK, ACTIVE |
Properties (4)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-03-19T10:23:17-07:00
- lining
- CIPP
