Wastewater/Activity/PacpInspection/1.0Mar 17, 2018, 11:32 AM
Section#1_H 0327_B 0184A__3172018__G6978.mp4
- Date
- 03/17/2018
- W/O
- 0694534
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00075
- PipeID
- P08670
- Time
- 4:32 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6978
- Sewer Name
- B JOINT OUTFALL B - UNIT 1D
- City
- PICO RIVERA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180317MDM_JOINT_OUTFALL_B_UNIT_1D
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Upstream MH
- H 0327
- Downstream MH
- B 0184A
- Dir. of Survey
- Downstream
- Length Surveyed
- 74.3 ft.
- Total Length
- 74.3 ft.
- Structural Index
- 4
- Structural Quick
- 544B
- Structural Rating
- 72
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 72
Observation photos (4)

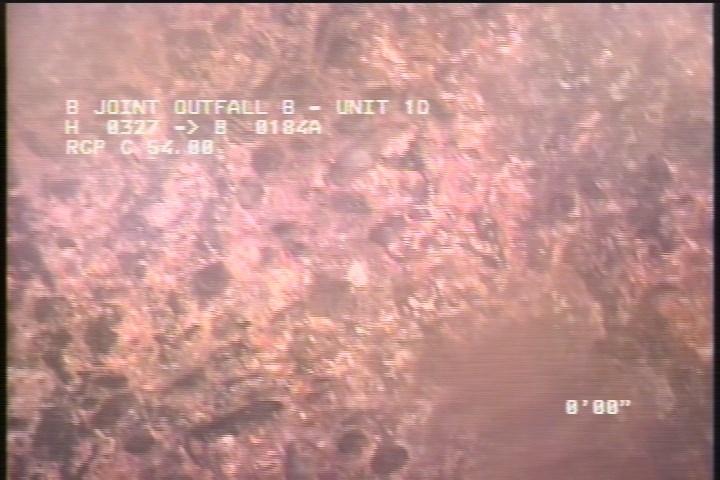

10 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

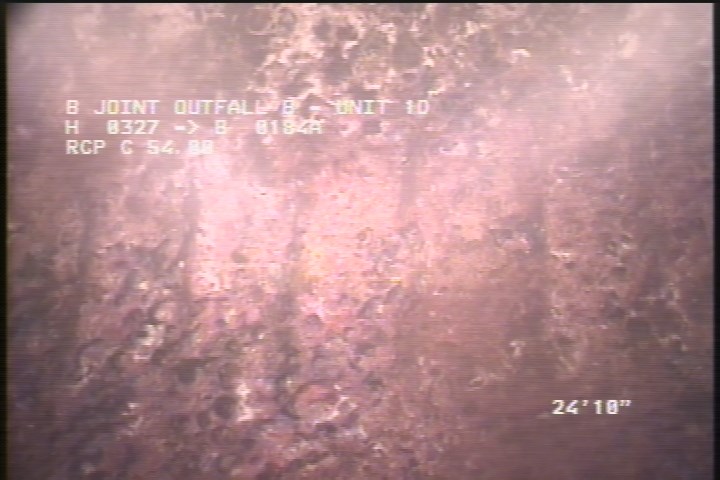

24.8 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - CIRCUM
36.2 ft. - General Observation - MAG COAT 98% START9:00 TO 3:00

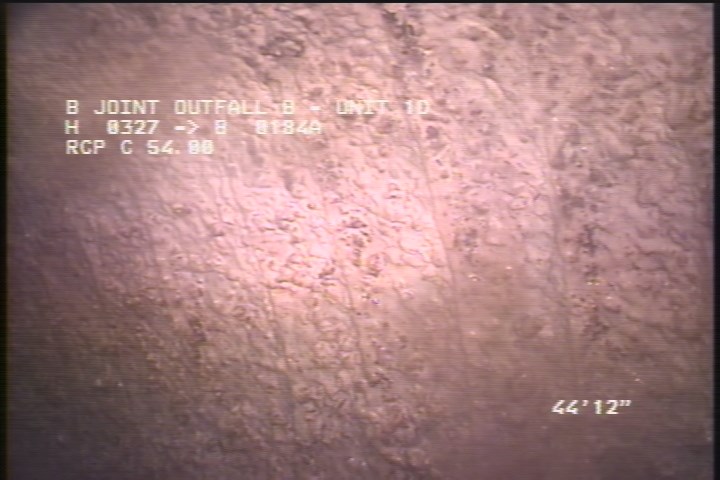

45 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR UNDER MAG COAT POSSIBLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 24.8 | SRV | CIRCUM |
| 36.2 | SRV | CIRCUM |
| 57 | SRV | CIRCUM REBAR POSSIBLE |
| 36.2 | MGO | MAG COAT 98% START9:00 TO 3:00 |
| 45 | SRV | CIRCUM REBAR UNDER MAG COAT POSSIBLE |
| 74.3 | SAM | SEVERE AGG |
| 10 | SAM | SEVERE AGG |
| 0 | MWL | — |
| 74.3 | AMH | 6:15AM |
| 0 | AMH | 5:50AM |
Properties (4)
- custom_field_three
- VISIBLE CIRCUM REBAR
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-03-17T04:32:34-07:00
