Wastewater/Activity/PacpInspection/1.0Mar 17, 2018, 09:25 PM
21 0924_21 0923_3172018_142933.mp4
- Date
- 03/17/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00760
- PipeID
- P16012
- Time
- 2:25 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7658
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20180317DF_CLAREMONT_OUTFALL_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 21 0924
- Downstream MH
- 21 0923
- Dir. of Survey
- Downstream
- Length Surveyed
- 673.8 ft.
- Total Length
- 673.8 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (6)

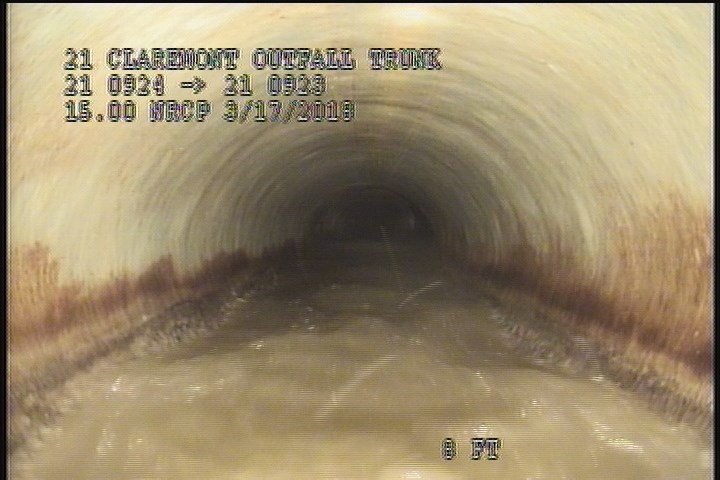

0 ft. - Upstream Manhole, Survey Begins - 2:26 PM

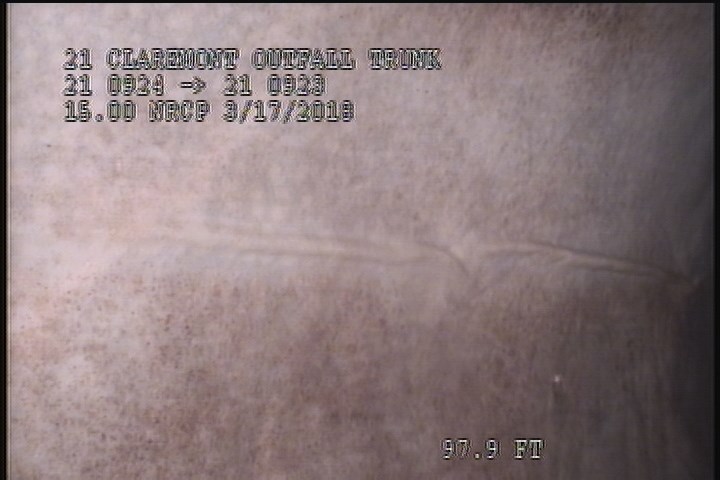

97.9 ft. - Lining Failure Wrinkled, from 11 to 12 o'clock, within 8 inches of joint: YES, Start

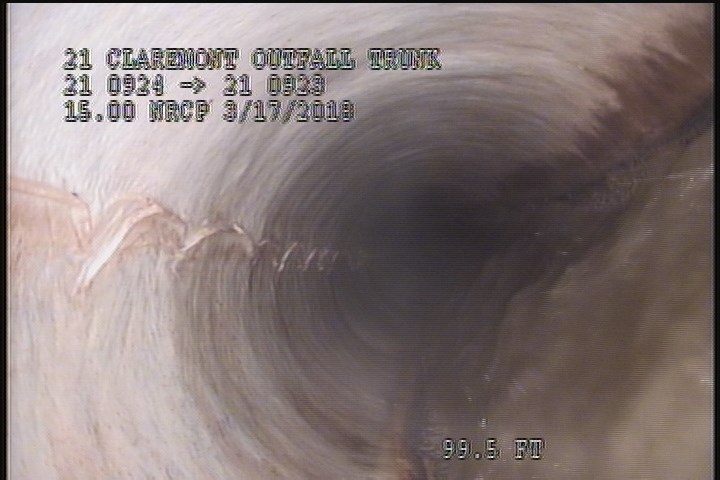

99.5 ft. - General Photograph

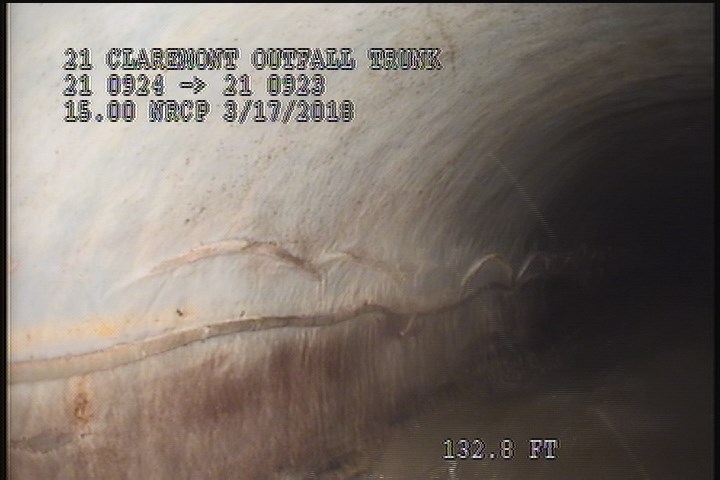

132.8 ft. - Lining Failure Wrinkled, at 09 o'clock, within 8 inches of joint: YES, Start

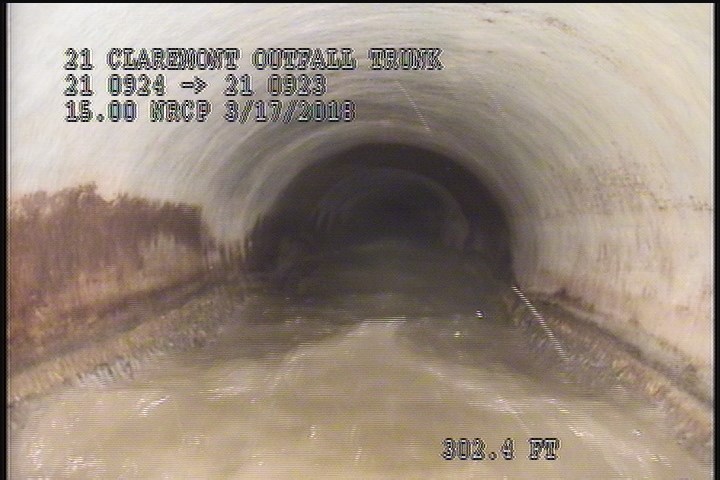

302.4 ft. - General Photograph

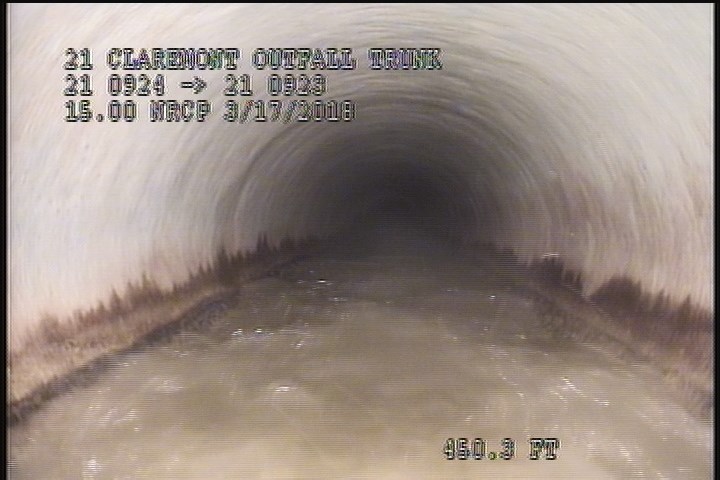

450.3 ft. - General Photograph
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 132.8 | LFW | — |
| 450.3 | MGP | — |
| 139 | LFW | — |
| 0 | AMH | 2:26 PM |
| 302.4 | MGP | — |
| 108.8 | LFW | — |
| 97.9 | LFW | — |
| 0 | MWL | — |
| 673.8 | AMH | 2:59 PM |
| 99.5 | MGP | — |
| 0 | MWM | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-03-17T14:25:13-07:00
