Wastewater/Activity/PacpInspection/1.0Mar 17, 2018, 05:31 PM
21 0928_21 0927_3172018_105039.mp4
- Date
- 03/17/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00760
- PipeID
- P16016
- Time
- 10:31 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7658
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20180317DF_CLAREMONT_OUTFALL_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0928
- Downstream MH
- 21 0927
- Dir. of Survey
- Downstream
- Length Surveyed
- 497 ft.
- Total Length
- 497 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

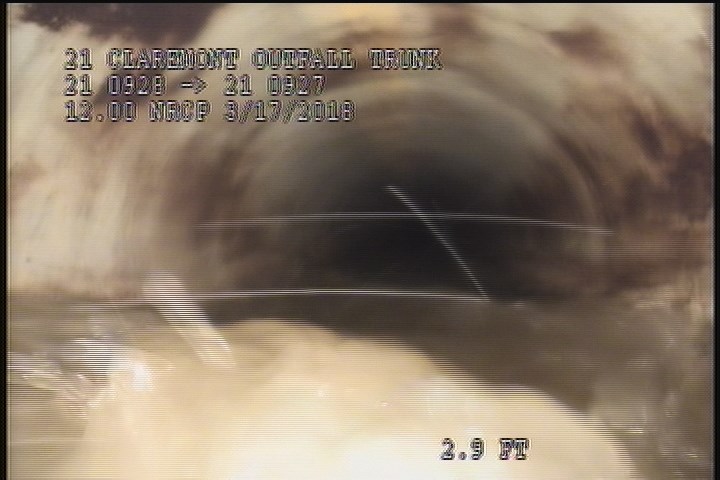

0.1 ft. - Water Mark, 35 %of cross sectional area

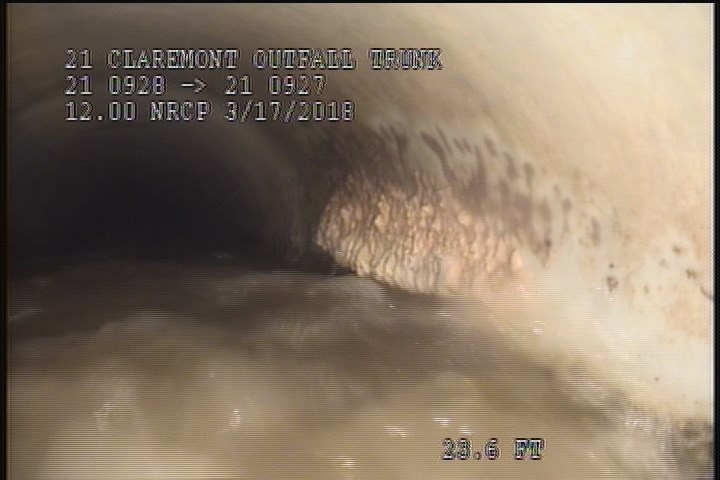

23.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 04 o'clock, , within 8 inches of joint: YES

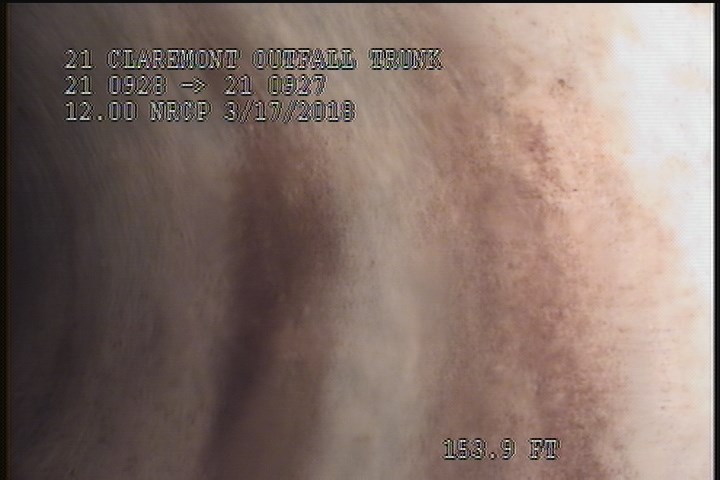

153.9 ft. - General Photograph

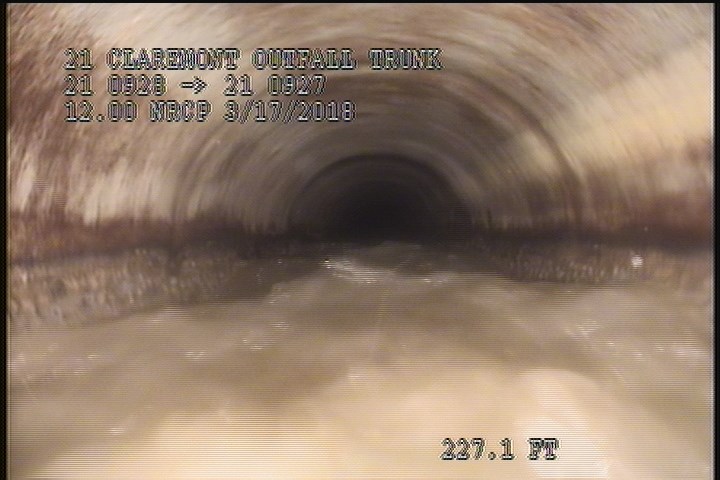

227.1 ft. - General Photograph
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 227.1 | MGP | — |
| 403 | TF | — |
| 0.1 | MWM | — |
| 297.8 | TFA | — |
| 0 | AMH | 10:39 AM |
| 497 | AMH | 11:19 AM |
| 496 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 153.9 | MGP | — |
| 23.8 | DAGS | — |
| 0.1 | MWL | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-03-17T10:31:18-07:00
