Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 15, 2018, 07:46 AM

  • 18 0024_18 0023_3152018_010650.mp4

Date
03/15/2018
W/O
#
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00713
PipeID
P13840
Time
12:46 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0775
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Maintenance Related
Project
20180315MDM_WALNUT_WAY_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0024
Downstream MH
18 0023
Dir. of Survey
Downstream
Length Surveyed
51.5 ft.
Total Length
51.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 18 0024 to 18 0023
MH: 18 0024MH: 18 0023downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:00AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active32.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open46.7 ft. MGP - General Photograph - SMALL ROOT & DEBRIE50.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - RAGS50.1 ft. MGP - General Photograph - SMALL ROOT REMOVED50.2 ft. MGO - General Observation - BENT UP TAB AT 7:0050.2 ft. MGO - General Observation - BENT UP TAB AT 5:0051.1 ft. MGO - General Observation - NOT BENT DOWNSTREAM TABS51.1 ft. MGO - General Observation - DOWNSTREAM TABS NOT BENT51.5 ft. MSA - Survey Abandoned - 1:45AM( END LINK PIPE INSPECTION

Observation photos (7)

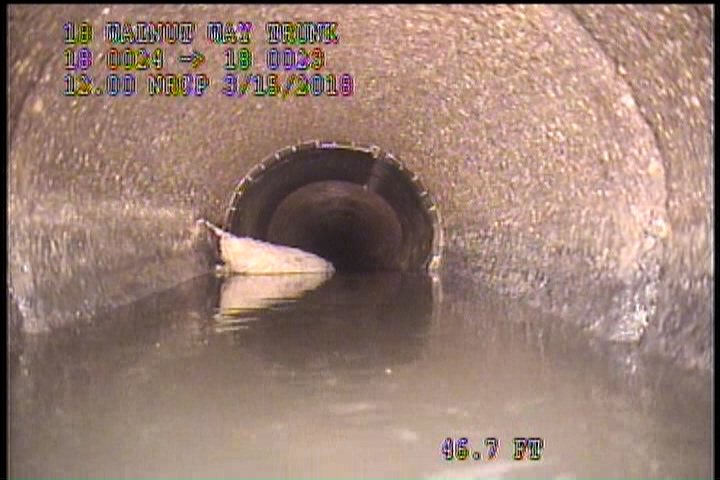

  • General Photograph - SMALL ROOT & DEBRIE

    46.7 ft. - General Photograph - SMALL ROOT & DEBRIE

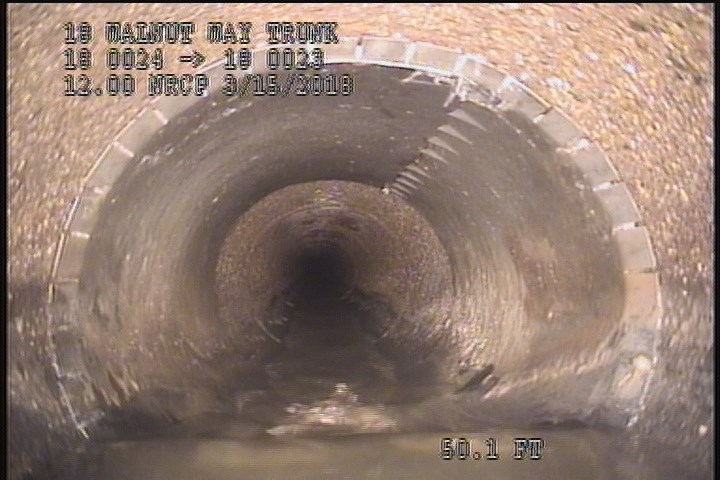

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - RAGS

    50.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - RAGS

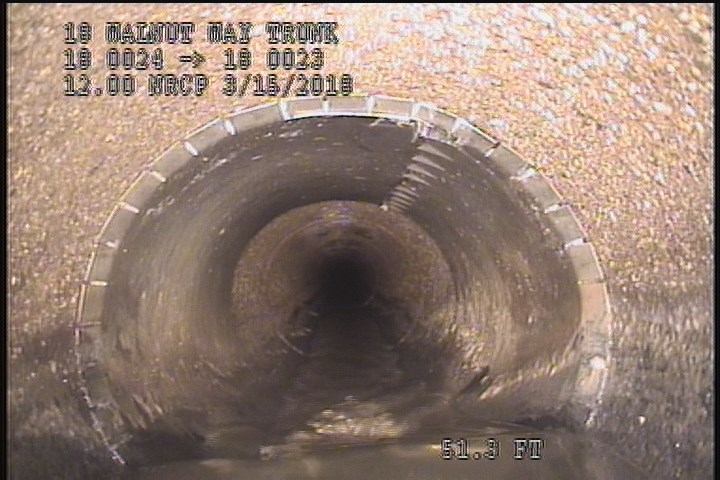

  • General Photograph - SMALL ROOT REMOVED

    50.1 ft. - General Photograph - SMALL ROOT REMOVED

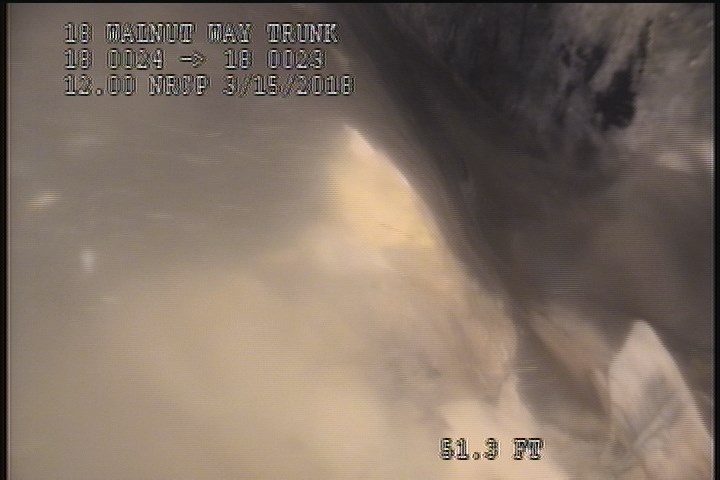

  • General Observation - BENT UP TAB AT 7:00

    50.2 ft. - General Observation - BENT UP TAB AT 7:00

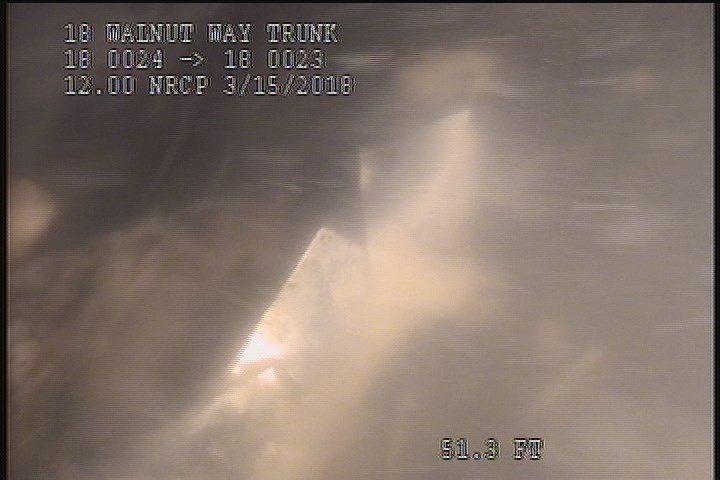

  • General Observation - BENT UP TAB AT 5:00

    50.2 ft. - General Observation - BENT UP TAB AT 5:00

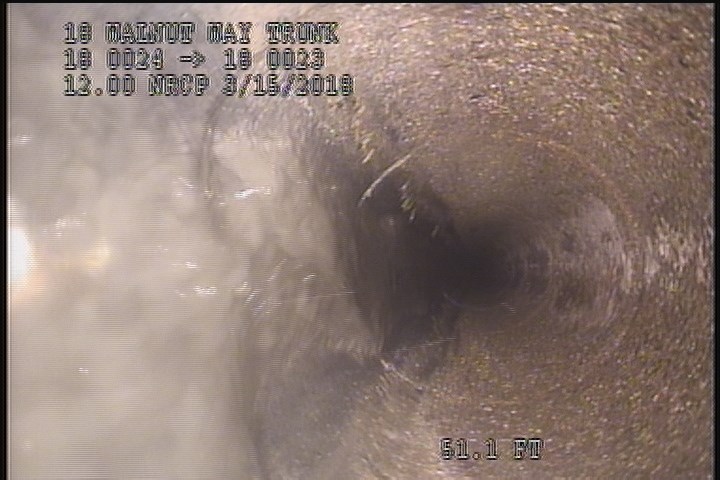

  • General Observation - NOT BENT DOWNSTREAM TABS

    51.1 ft. - General Observation - NOT BENT DOWNSTREAM TABS

  • General Observation - DOWNSTREAM TABS NOT BENT

    51.1 ft. - General Observation - DOWNSTREAM TABS NOT BENT

All inspections of P13840Work order #

Observations (13)

DistanceCodeObservation
50.1DSZRAGS
50.1MGPSMALL ROOT REMOVED
50.2MGOBENT UP TAB AT 7:00
0AMH1:00AM
0MWM—
51.5MSA1:45AM( END LINK PIPE INSPECTION
0MWL—
51.1MGONOT BENT DOWNSTREAM TABS
32.1TFOpen
0MGOConn. @ Mh, 9 O' Clock. Active
46.7MGPSMALL ROOT & DEBRIE
51.1MGODOWNSTREAM TABS NOT BENT
50.2MGOBENT UP TAB AT 5:00

Properties (3)

additional_info
LINK PIPE INSPECTION
customer
LACSD
datetime
2018-03-15T00:46:28-07:00
