Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 15, 2018, 10:05 AM

  • 18 0404_18 0403_3152018_032529.mp4

Date
03/15/2018
W/O
#
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00699
PipeID
P14239
Time
3:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0775
Sewer Name
18 SANTA FE STREET RELIEF TRUNK
City
SANTE FS SPRINGS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Maintenance Related
Project
20180315MDM_SANTE_FE_STREET_RELIEF_TRUNK
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
18 0404
Downstream MH
18 0403
Dir. of Survey
Downstream
Length Surveyed
416.8 ft.
Total Length
416.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 18 0404 to 18 0403
MH: 18 0404MH: 18 0403downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:15AM0 ft. MWL - Water Level, 10 %of cross sectional area105 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open167.1 ft. MGO - General Observation - LINK PIPE170.1 ft. MGO - General Observation - TOP TABS NOT BENT170.1 ft. MGO - General Observation - BOTTOM TABS APPEAR NOT BENT170.1 ft. MGO - General Observation - LOOSE TOP CONNECTION171.2 ft. MGO - General Observation - DOWNSTREAM TABS NOT BENT173 ft. MGO - General Observation - TOP TABS INTACT D/S173 ft. MGO - General Observation - BOTTOM TABS APPEAR NOT BENT D/S416.8 ft. AMH - Downstream Manhole, Survey Ends - 3:45AM

Observation photos (7)

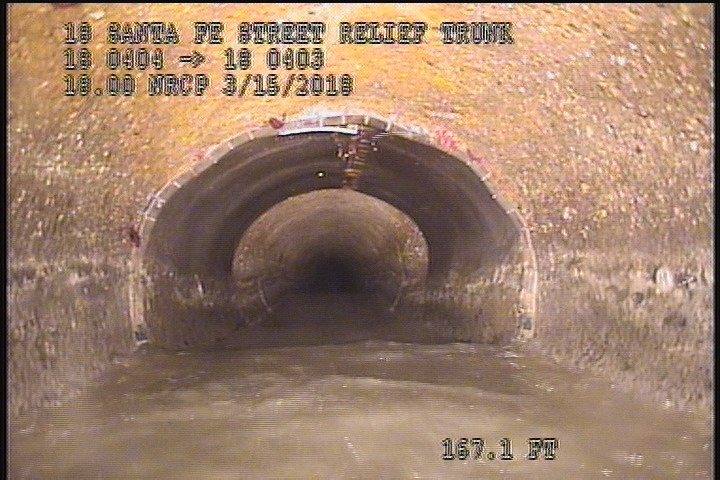

  • General Observation - LINK PIPE

    167.1 ft. - General Observation - LINK PIPE

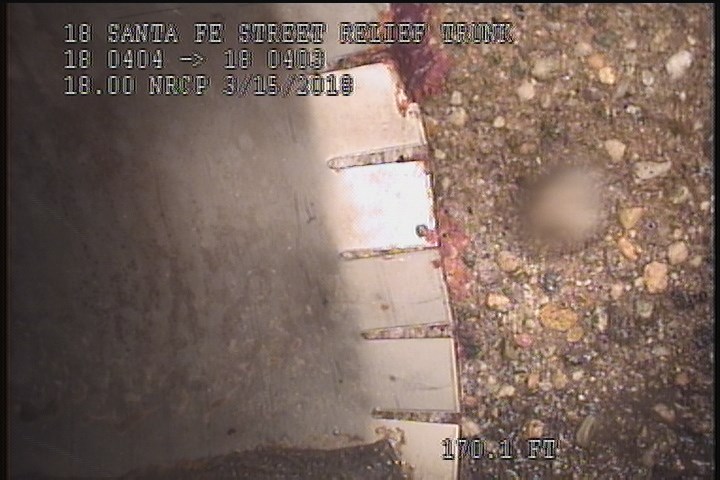

  • General Observation - TOP TABS NOT BENT

    170.1 ft. - General Observation - TOP TABS NOT BENT

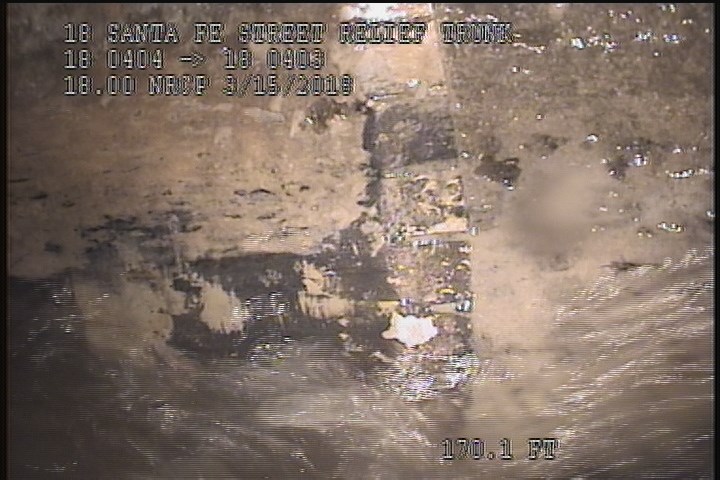

  • General Observation - BOTTOM TABS APPEAR NOT BENT

    170.1 ft. - General Observation - BOTTOM TABS APPEAR NOT BENT

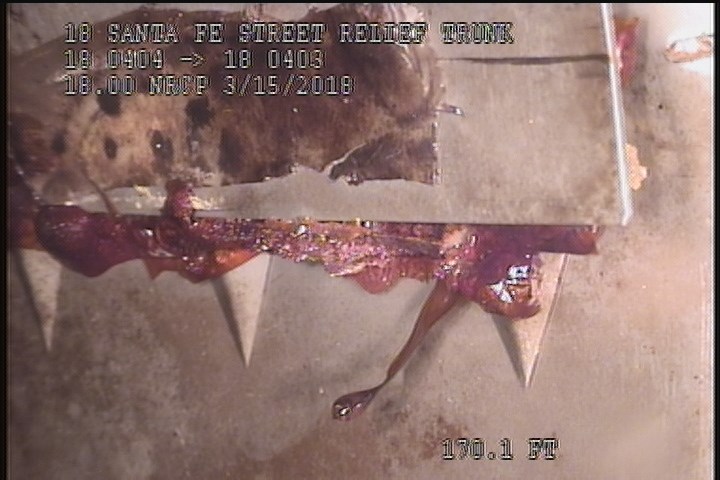

  • General Observation - LOOSE TOP CONNECTION

    170.1 ft. - General Observation - LOOSE TOP CONNECTION

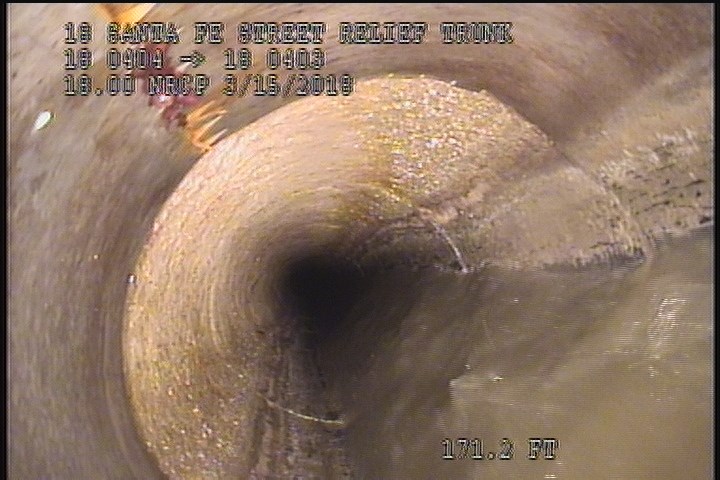

  • General Observation - DOWNSTREAM TABS NOT BENT

    171.2 ft. - General Observation - DOWNSTREAM TABS NOT BENT

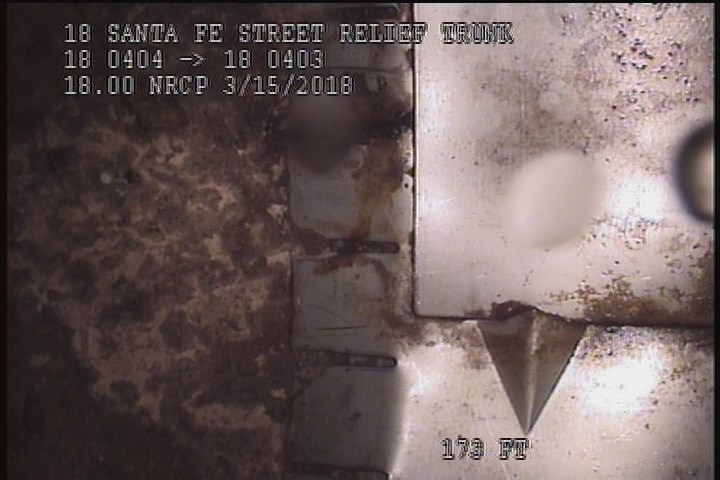

  • General Observation - TOP TABS INTACT D/S

    173 ft. - General Observation - TOP TABS INTACT D/S

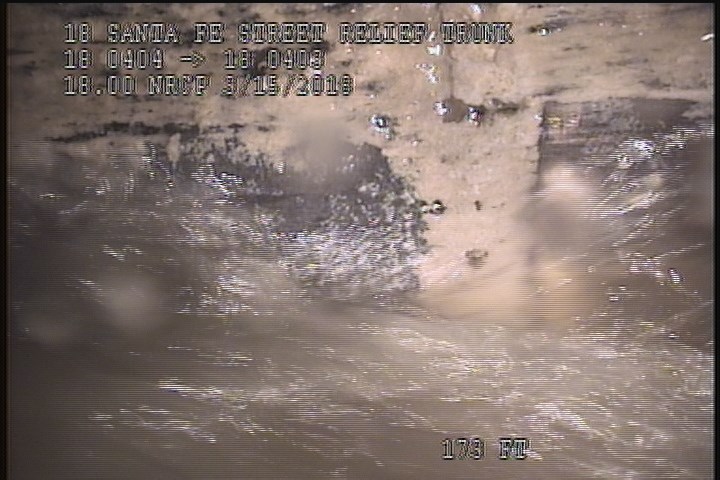

  • General Observation - BOTTOM TABS APPEAR NOT BENT D/S

    173 ft. - General Observation - BOTTOM TABS APPEAR NOT BENT D/S

All inspections of P14239Work order #

Observations (12)

DistanceCodeObservation
170.1MGOTOP TABS NOT BENT
173MGOTOP TABS INTACT D/S
0MWM—
167.1MGOLINK PIPE
170.1MGOBOTTOM TABS APPEAR NOT BENT
171.2MGODOWNSTREAM TABS NOT BENT
0AMH3:15AM
170.1MGOLOOSE TOP CONNECTION
416.8AMH3:45AM
105TFOpen
0MWL—
173MGOBOTTOM TABS APPEAR NOT BENT D/S

Properties (3)

additional_info
LINK PIPE INSPECTION
customer
LACSD
datetime
2018-03-15T03:05:49-07:00
