Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 15, 2018, 04:26 PM

  • Section#1_H 0422_H 0421__3152018__G6975.mp4

Date
03/15/2018
W/O
0674351
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00180
PipeID
P10877
Time
9:26 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6975
Sewer Name
H JOINT OUTFALL H - UNIT 5D
City
EL MONTE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
27
Purpose
Routine Assessment
Project
20180315DF_JOINT_OUTFALL_H_UNIT_5D
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
H 0422
Downstream MH
H 0421
Dir. of Survey
Downstream
Length Surveyed
1066.9 ft.
Total Length
1066.9 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole H 0422 to H 0421
MH: H 0422MH: H 0421downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:32 AM0.1 ft. MWL - Water Level, 20 %of cross sectional area0.6 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG36.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES227.8 ft. MGP - General Photograph - PEELING/FLAKING502.3 ft. MGP - General Photograph667.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN667.9 ft. MGP - General Photograph667.9 ft. MGP - General Photograph - INTRUDING CONN/3 O'CLOCK750.4 ft. MGP - General Photograph1000.2 ft. MGP - General Photograph1062.4 ft. MGP - General Photograph1066.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG1066.9 ft. MSA - Survey Abandoned - SLOW FLOW

Observation photos (9)

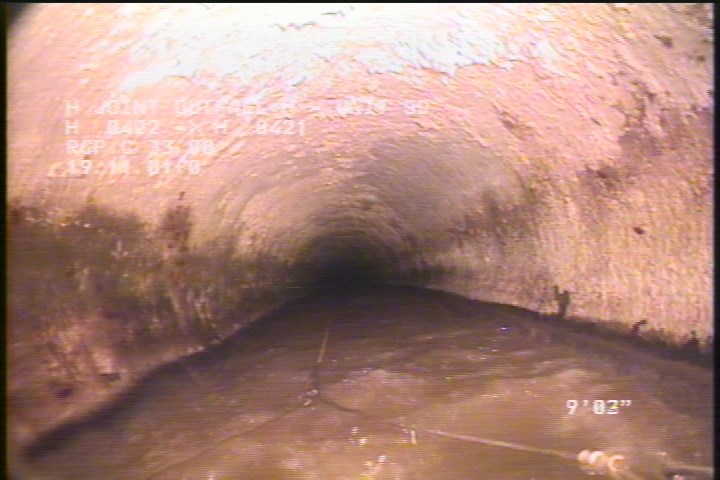

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

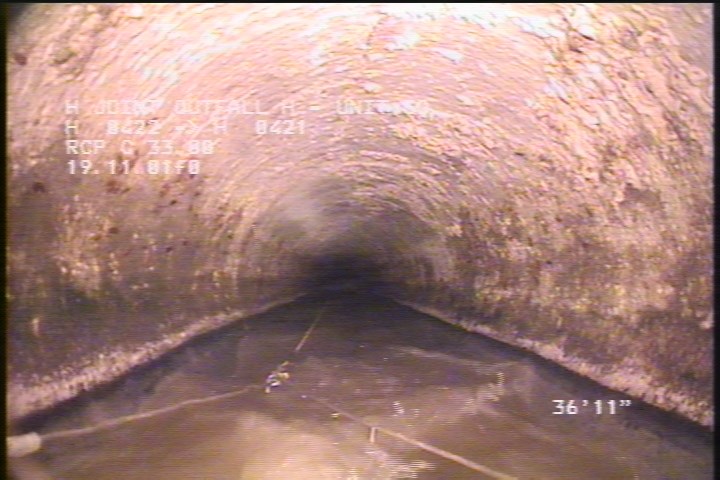

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    36.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

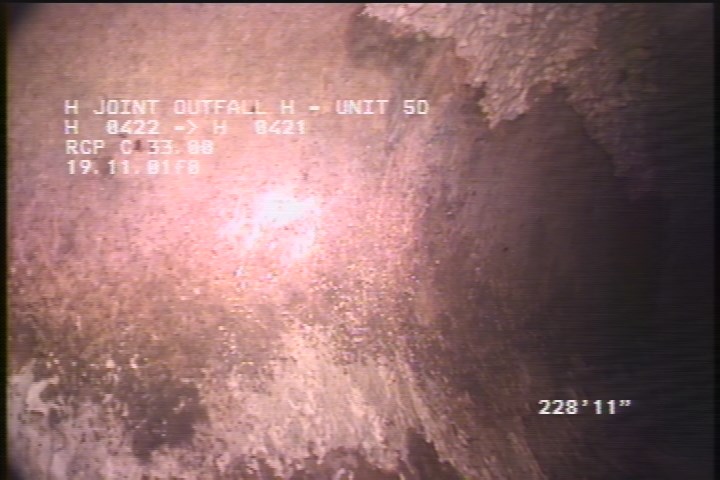

  • General Photograph - PEELING/FLAKING

    227.8 ft. - General Photograph - PEELING/FLAKING

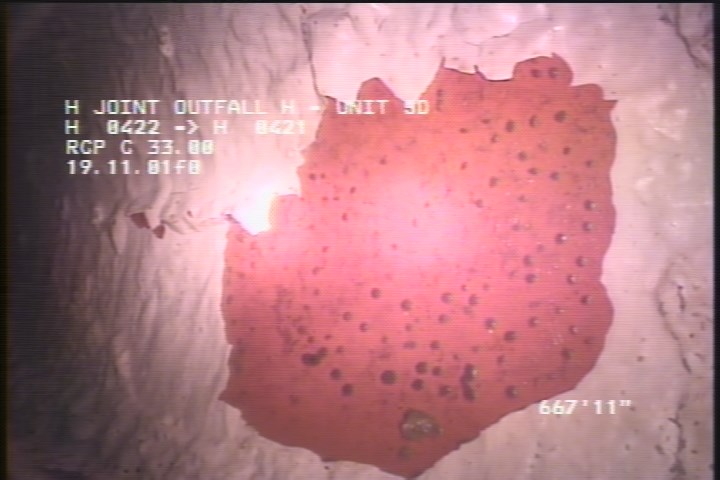

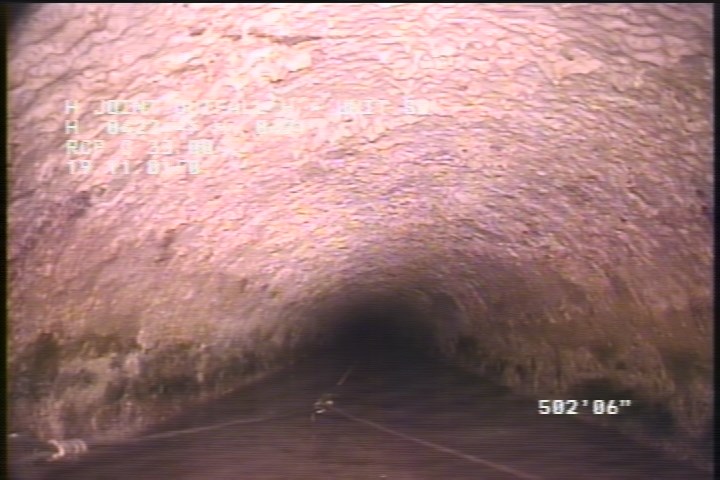

  • General Photograph

    502.3 ft. - General Photograph

  • General Photograph

    667.9 ft. - General Photograph

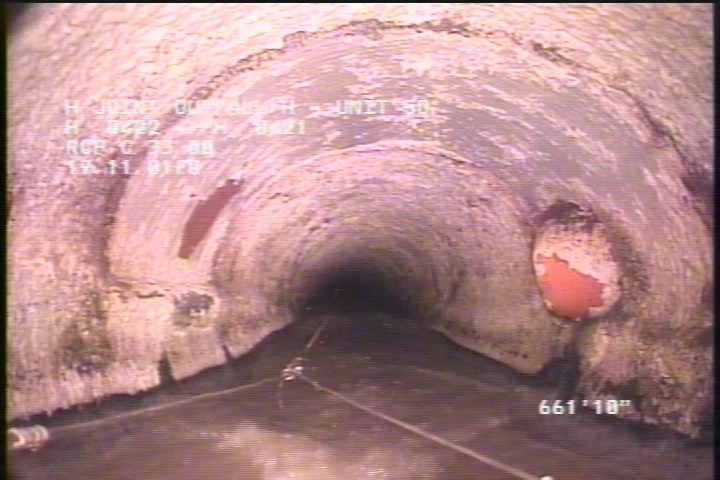

  • General Photograph - INTRUDING CONN/3 O'CLOCK

    667.9 ft. - General Photograph - INTRUDING CONN/3 O'CLOCK

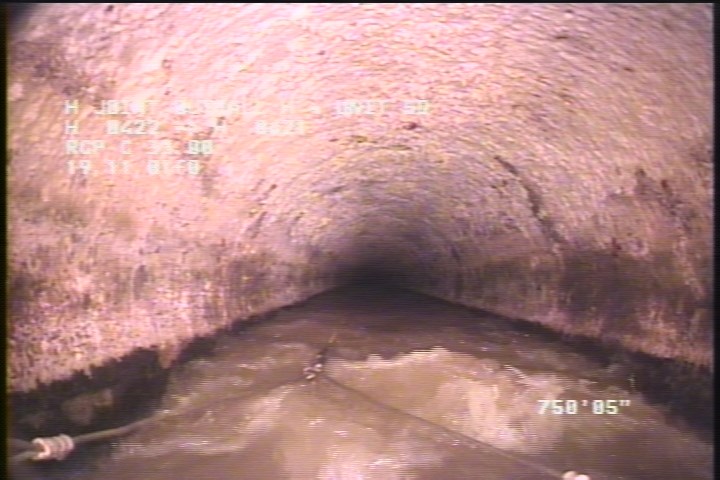

  • General Photograph

    750.4 ft. - General Photograph

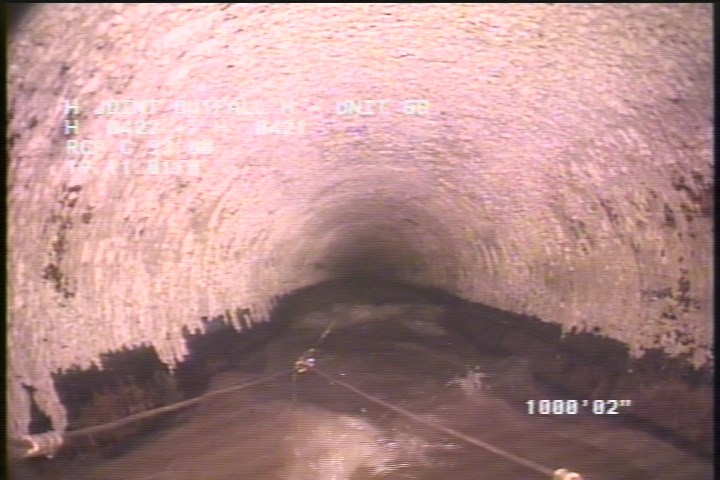

  • General Photograph

    1000.2 ft. - General Photograph

  • General Photograph

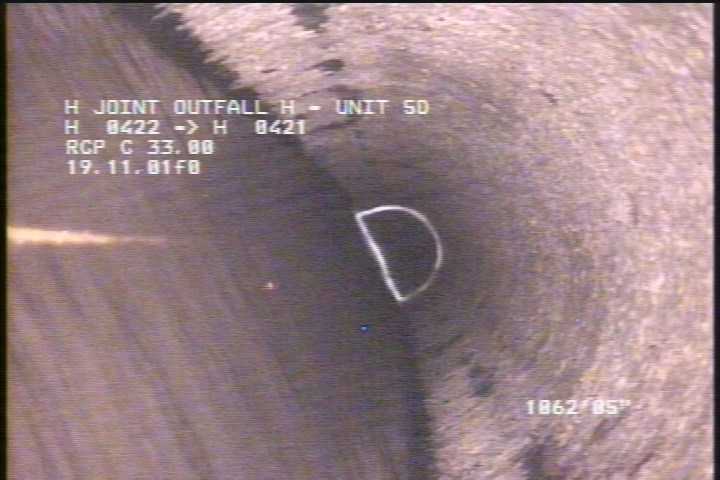

    1062.4 ft. - General Photograph

All inspections of P10877Work order 0674351

Observations (15)

DistanceCodeObservation
1066.1SZ75% MAG
2SZ75% MAG
0.6MWM—
0.1MWL—
0AMH9:32 AM
1000.2MGP—
227.8MGPPEELING/FLAKING
667.9MGP—
667.8TFOPEN
1066.9MSASLOW FLOW
1062.4MGP—
502.3MGP—
667.9MGPINTRUDING CONN/3 O'CLOCK
36.9SRV—
750.4MGP—

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2018-03-15T09:26:28-07:00
