Wastewater/Activity/PacpInspection/1.0Feb 21, 2018, 11:04 AM
A 1288_A 0211 _21022018_041404.mp4
- Date
- 02/21/2018
- W/O
- 685104
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00323
- PipeID
- P08148
- Time
- 3:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5462
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- SOUTH GATE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_685104_TV30023_FEB2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 75 in.
- Width
- 75 in.
- Upstream MH
- A 1288
- Downstream MH
- A 0211
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4200
- O&M Rating
- 8
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

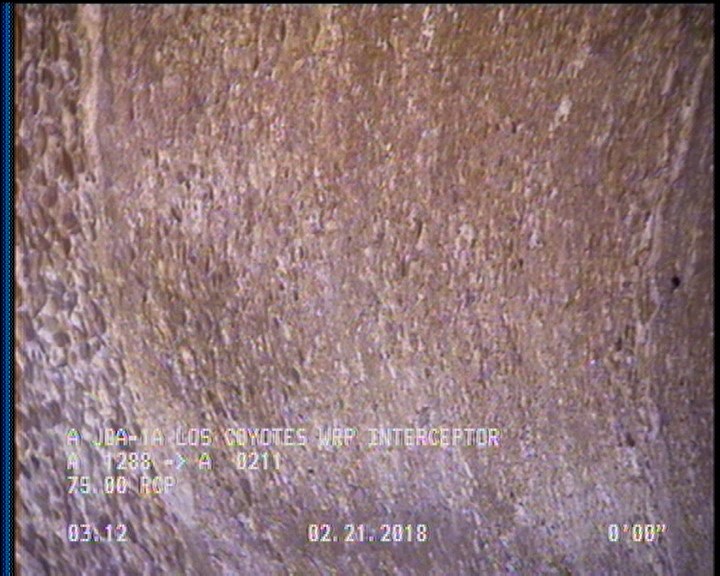

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

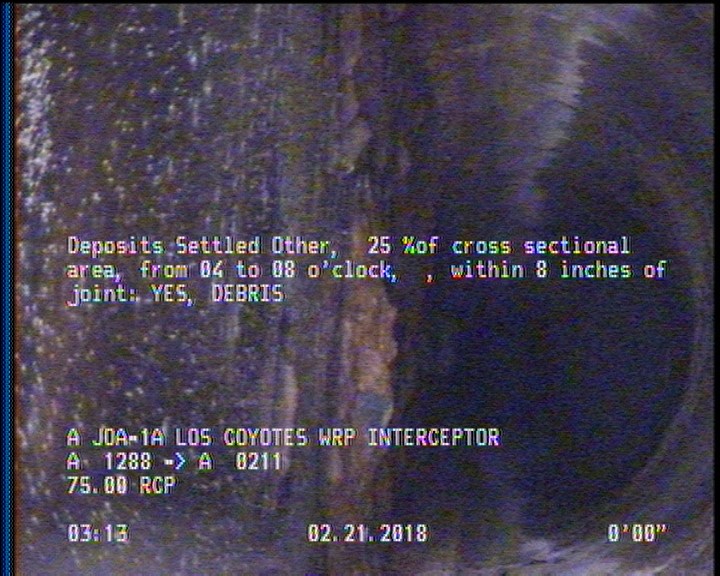

2 ft. - Deposits Settled Other, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - DEBRIS

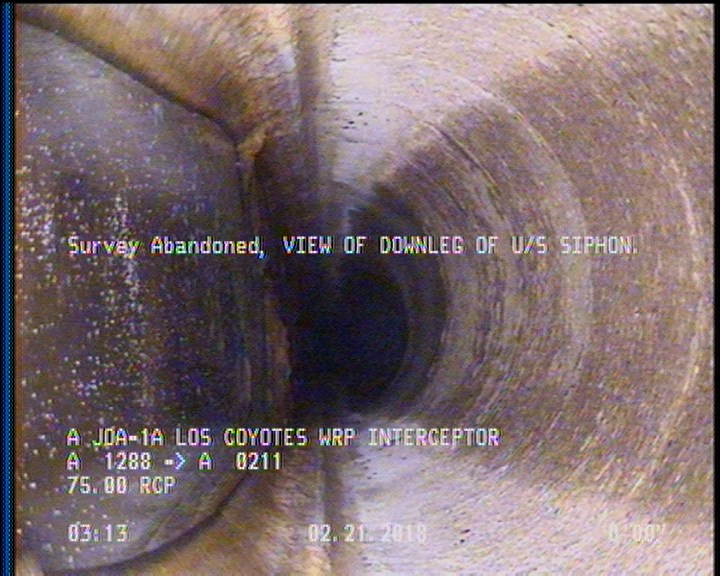

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | A 1288 |
| 2 | SAV | — |
| 2 | DSZ | DEBRIS |
| 0 | MWL | — |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
Properties (5)
- additional_info
- SC346997
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-02-21T03:04:57-08:00
- year_laid
- 28636
