Wastewater/Activity/PacpInspection/1.0Feb 22, 2018, 08:51 AM
A 0432_A 0431 _22022018_020144.mp4
- Date
- 02/22/2018
- W/O
- 685104
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00323
- PipeID
- P08154
- Time
- 12:51 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5463
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- SOUTH GATE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_685104_TV30023_FEB2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Width
- 63 in.
- Upstream MH
- A 0432
- Downstream MH
- A 0431
- Dir. of Survey
- Downstream
- Length Surveyed
- 255.4 ft.
- Total Length
- 255.4 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 126
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 126
Observation photos (1)

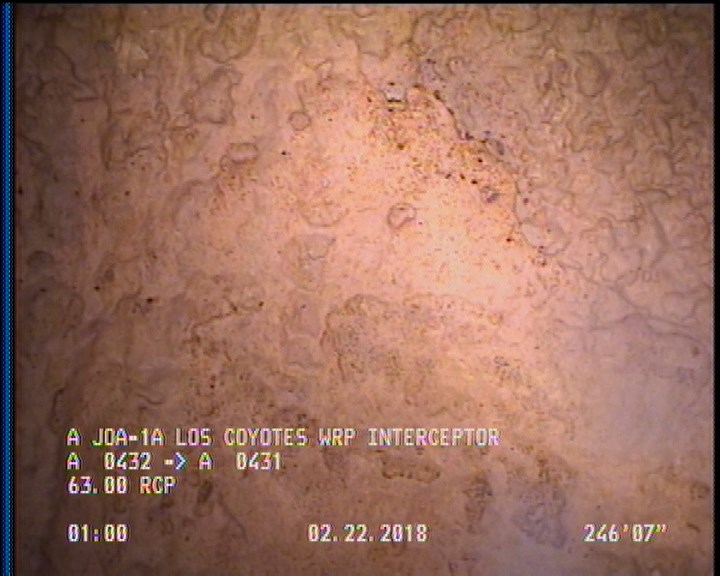

44.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | A 0432 |
| 0 | MGO | MAG COATING 80% THROUGHOUT. |
| 255.4 | AMH | A 0431 |
| 0 | MWL | — |
| 255.4 | SAP | — |
| 44.9 | SAP | — |
Properties (4)
- additional_info
- SC346998
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-22T00:51:41-08:00
