Wastewater/Activity/PacpInspection/1.0Feb 22, 2018, 10:47 AM
A 0208_A 0207 _22022018_035407.mp4
- Date
- 02/22/2018
- W/O
- 684685
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00323
- PipeID
- P08144
- Time
- 2:47 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5464
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- SOUTH GATE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_684685_TV02346_FEB2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 75 in.
- Width
- 75 in.
- Upstream MH
- A 0207
- Downstream MH
- A 0208
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

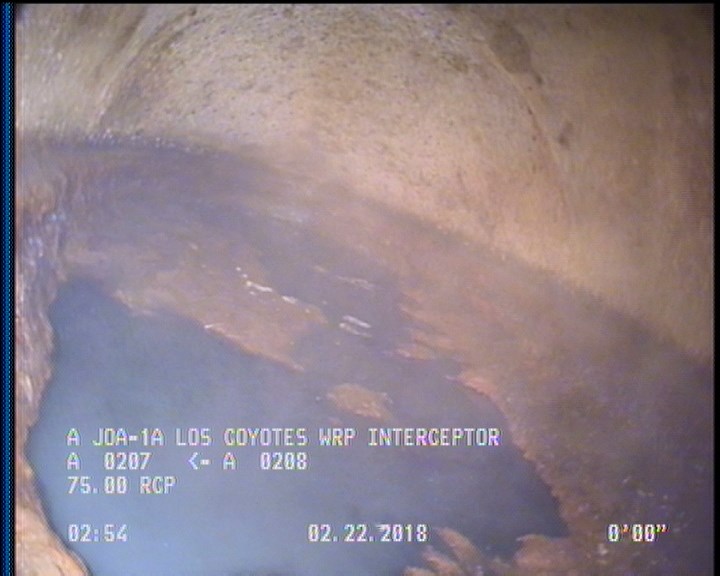

2 ft. - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

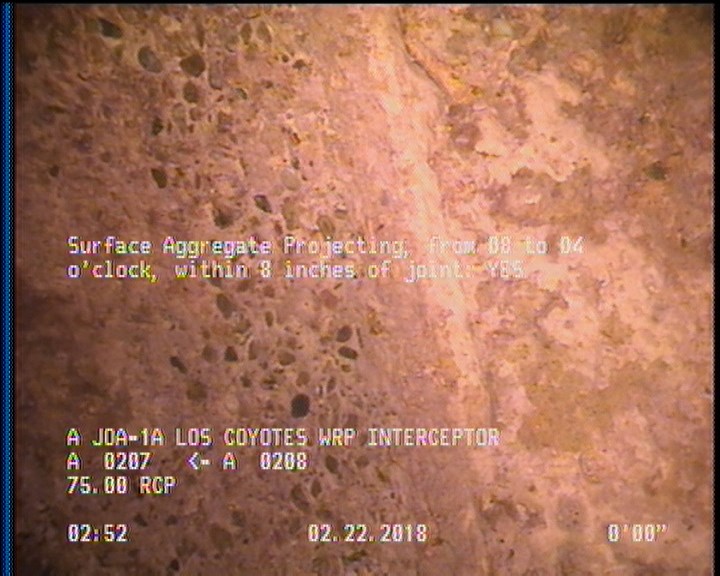

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

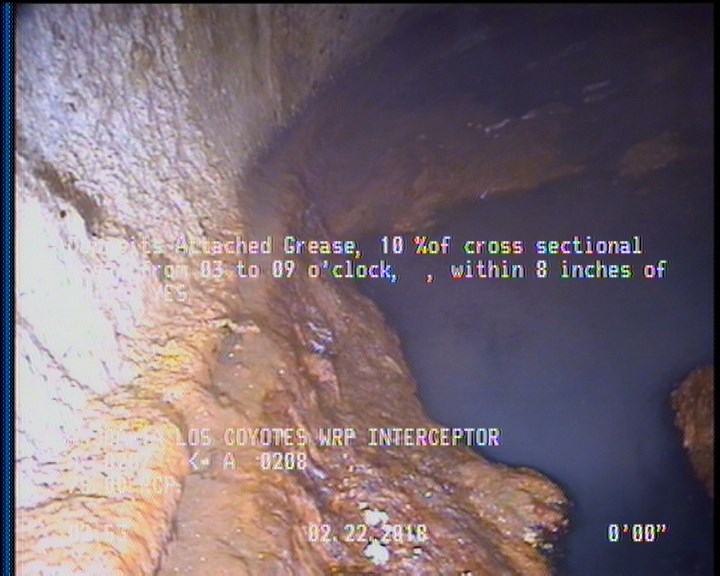

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | MSA | VIEW OF UPLEG OF D/S SIPHON. |
| 0 | MWL | — |
| 2 | SAP | — |
| 2 | DAGS | — |
| 0 | AMH | A 0207 |
Properties (5)
- additional_info
- SC346999
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-22T02:47:45-08:00
- year_laid
- 28636
