Wastewater/Activity/PacpInspection/1.0May 25, 2016, 06:32 AM
20 0726_20 0725_24052016_233308.mp4
- Date
- 05/24/2016
- W/O
- 574355
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01144
- PipeID
- P25664
- Time
- 11:32 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3509
- Sewer Name
- 20 45TH STREET EAST RELIEF TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_574355_TV20010_JUNE2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 20 0726
- Downstream MH
- 20 0725
- Dir. of Survey
- Downstream
- Length Surveyed
- 372.1 ft.
- Total Length
- 372.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 148
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 148
Observation photos (1)

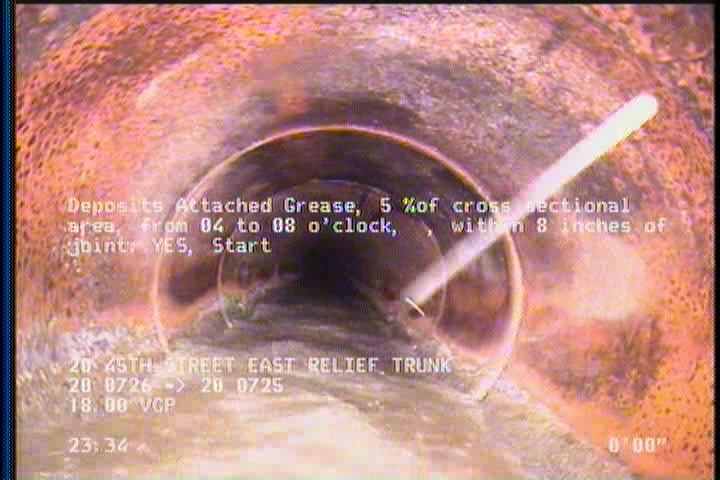

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 20 0726 |
| 370.7 | DAGS | — |
| 372.1 | AMH | 20 0725 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 372.1 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC305639
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-24T23:32:52-07:00
- year_laid
- 20060721
