Wastewater/Activity/PacpInspection/1.0Mar 15, 2018, 05:52 AM
H 0292_H 0291 _03142018_225433.mp4
- Date
- 03/14/2018
- W/O
- 694838
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00174
- PipeID
- P10747
- Time
- 10:52 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5486
- Sewer Name
- H JOINT OUTFALL H - UNIT 3
- City
- PICO RIVERA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_694838_DISTRICT02_MAR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- H 0291
- Downstream MH
- H 0292
- Dir. of Survey
- Upstream
- Length Surveyed
- 485.5 ft.
- Total Length
- 485.5 ft.
- Structural Index
- 4
- Structural Quick
- 5M3R
- Structural Rating
- 636
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 636
Observation photos (3)

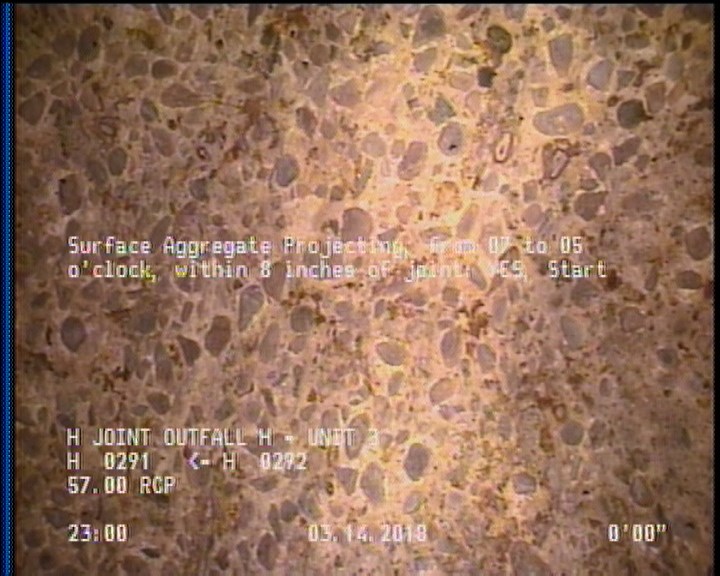

2 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

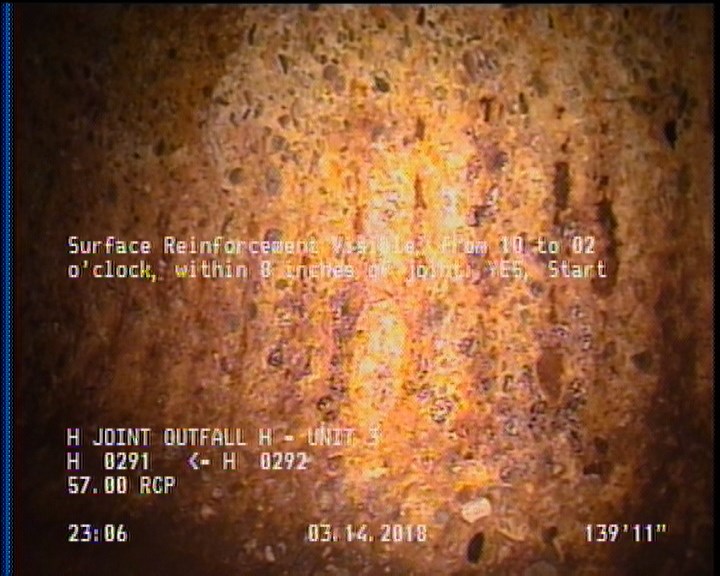

139.9 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

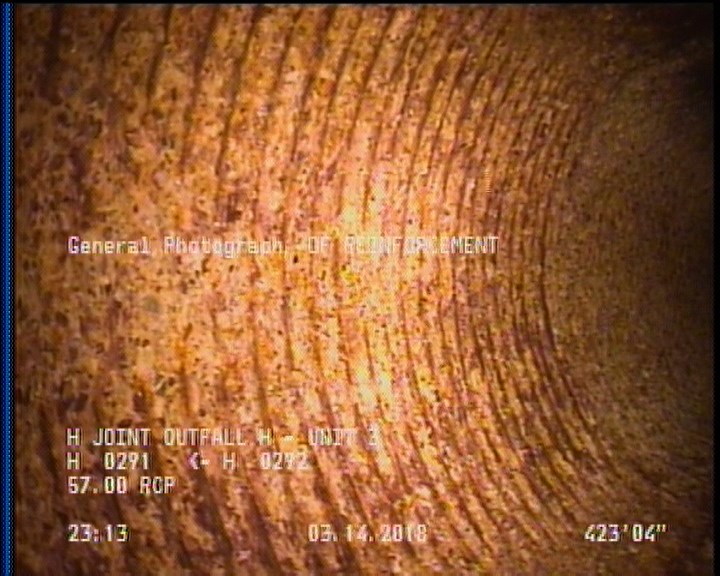

423.3 ft. - General Photograph - OF REINFORCEMENT
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 485.5 | SAP | — |
| 139.9 | SRV | — |
| 50.1 | TBA | — |
| 485.5 | SRV | — |
| 485.5 | AMH | H 0292 |
| 0 | MWL | — |
| 39 | TFC | — |
| 475.5 | TFC | — |
| 0 | AMH | H 0291 |
| 2 | SAP | — |
| 423.3 | MGP | OF REINFORCEMENT |
Properties (4)
- additional_info
- SC358493
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-03-14T22:52:48-07:00
