Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 28, 2018, 07:44 AM

  • 21 1009_21 1008 _27022018_235555.mp4

Date
02/27/2018
W/O
690352
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00784
PipeID
P16109
Time
11:44 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5438
Sewer Name
21 SAN ANTONIO TRUNK
City
CLAREMONT
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
06
Purpose
Routine Assessment
Project
WO_690352_TV21055_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
21 1009
Downstream MH
21 1008
Dir. of Survey
Downstream
Length Surveyed
266.5 ft.
Total Length
266.6 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
159
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
159
Pipe schematic from manhole 21 1009 to 21 1008
MH: 21 1009MH: 21 1008downstream0 ft. AMH - Upstream Manhole, Survey Begins - 21 10090 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area3.9 ft. CM - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start9.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"49.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"70.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"98.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"144 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"149.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"191.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"197.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"246.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"249.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"266.6 ft. AMH - Downstream Manhole, Survey Ends - 21 1008266.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

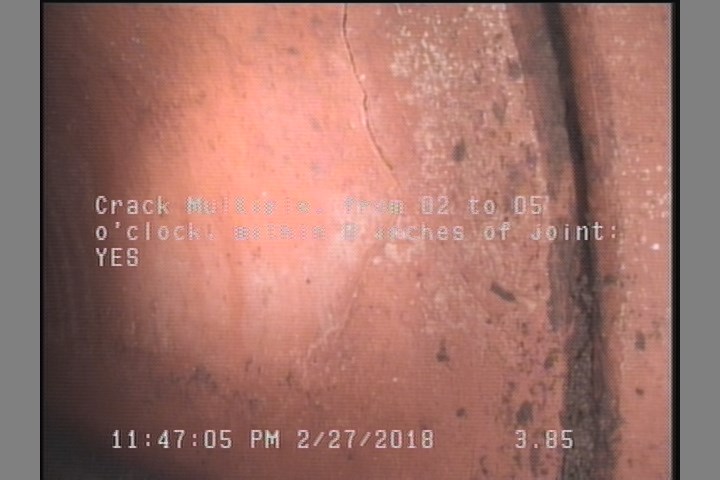

  • Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

    3.9 ft. - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

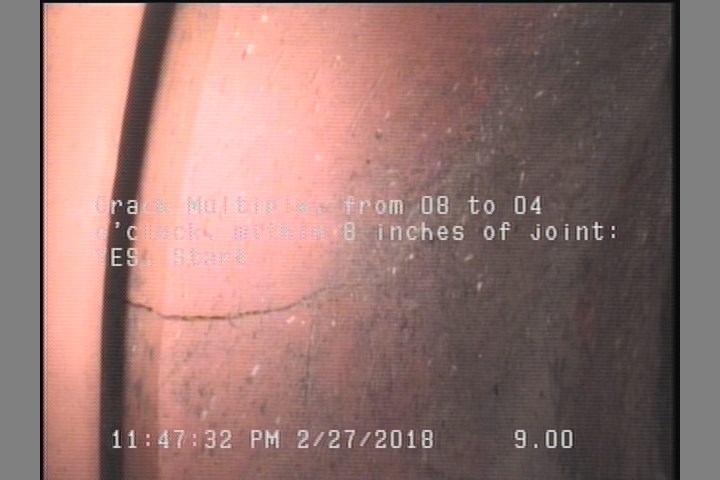

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16109Work order 690352

Observations (18)

DistanceCodeObservation
98.3TFC—
9.3TF—
191.5TFC—
149.5TFC—
0AMH21 1009
0MGOCONNECTION AT MH 3 O'CLOCK
144TF—
249.4TFC—
266.6AMH21 1008
246.3TFC—
49.2TFC—
0MWL—
197.3TFC—
0MWM—
3.9CM—
70.2TF—
9CM—
266.6CM—

Properties (4)

additional_info
SC347093
custom_field_two
3
customer
LACSD
datetime
2018-02-27T23:44:45-08:00
