Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 28, 2018, 08:13 AM

  • 21 0995_21 0994 _28022018_002501.mp4

Date
02/28/2018
W/O
690352
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00784
PipeID
P16095
Time
12:13 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5438
Sewer Name
21 SAN ANTONIO TRUNK
City
CLAREMONT
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
09
Purpose
Routine Assessment
Project
WO_690352_TV21055_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
21 0995
Downstream MH
21 0994
Dir. of Survey
Downstream
Length Surveyed
330.2 ft.
Total Length
330.2 ft.
Structural Index
4
Structural Quick
4L00
Structural Rating
256
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
256
Pipe schematic from manhole 21 0995 to 21 0994
MH: 21 0995MH: 21 0994downstream0 ft. AMH - Upstream Manhole, Survey Begins - 21 09950 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area5.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"7.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES13.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start55.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"80.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"123.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"213.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"330.2 ft. AMH - Downstream Manhole, Survey Ends - 21 0994330.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

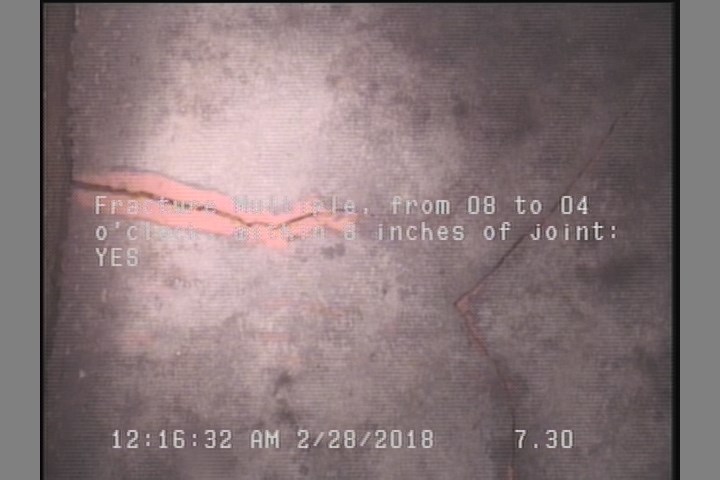

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    7.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

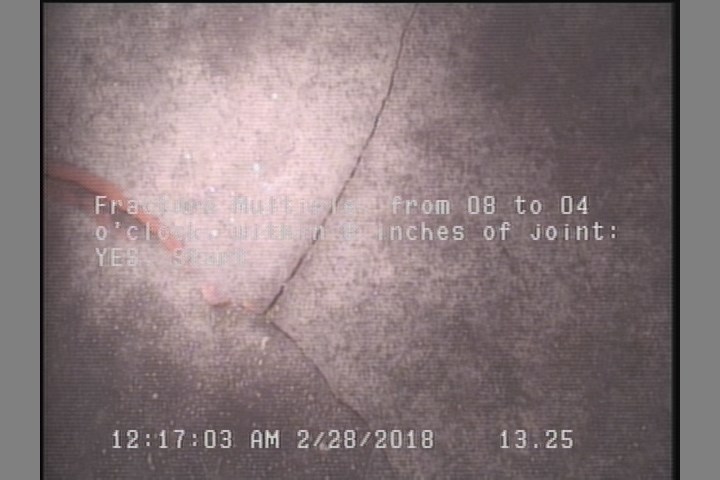

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    13.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16095Work order 690352

Observations (12)

DistanceCodeObservation
13.3FM—
7.3FM—
55.2TF—
80.2TF—
0AMH21 0995
330.2AMH21 0994
0MWL—
213.8TFC—
330.2FM—
5.1TFC—
0MWM—
123.6TF—

Properties (4)

additional_info
SC347093
custom_field_two
2
customer
LACSD
datetime
2018-02-28T00:13:49-08:00
